AMI Codes-II O3
Installation
3.2.
Mounting
requirements
3.3.
3.3.1
Mounting of
SERTO fitting
A-96.250.881 / 070622

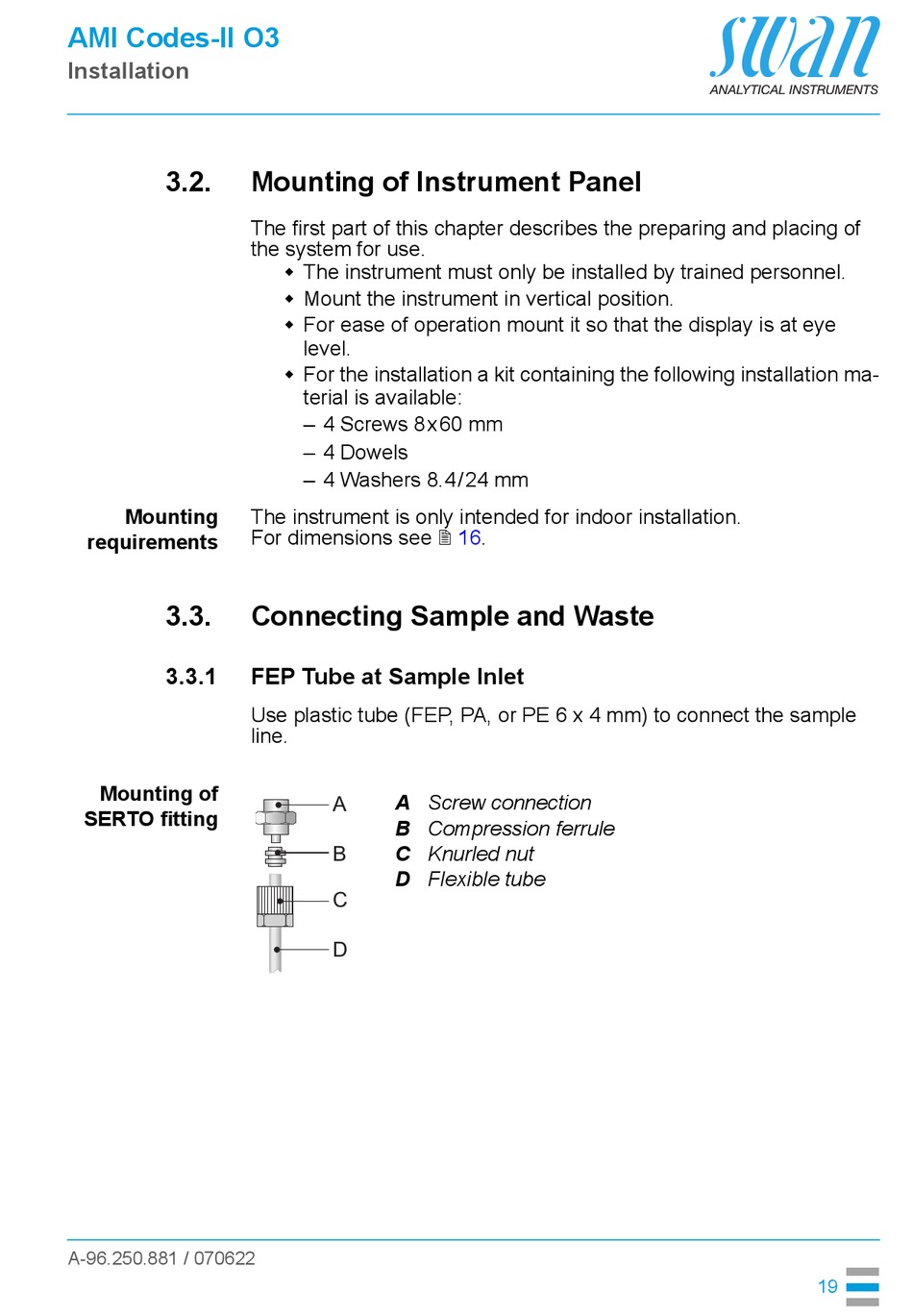

Mounting of Instrument Panel
The first part of this chapter describes the preparing and placing of
the system for use.
The instrument must only be installed by trained personnel.
Mount the instrument in vertical position.
For ease of operation mount it so that the display is at eye
level.
For the installation a kit containing the following installation ma-
terial is available:
– 4 Screws 8x60 mm
– 4 Dowels
– 4 Washers 8.4/24 mm
The instrument is only intended for indoor installation.
For dimensions see 16.
Connecting Sample and Waste
FEP Tube at Sample Inlet
Use plastic tube (FEP, PA, or PE 6 x 4 mm) to connect the sample
line.
A
A
B
C
B
D
C
D
Screw connection
Compression ferrule
Knurled nut
Flexible tube
19
