Installation - Swan Analytical Instruments AMI Codes-II O3 Operator's Manual

AMI Codes-II O3
Program List and Explanations

5 Installation

5.1 Sensors
5.1.1
5.1.2
5.2 Signal Outputs
5.2.1 and 5.2.2
5.2.1.1
5.2.1.2
5.2.1.3
A-96.250.881 / 070622

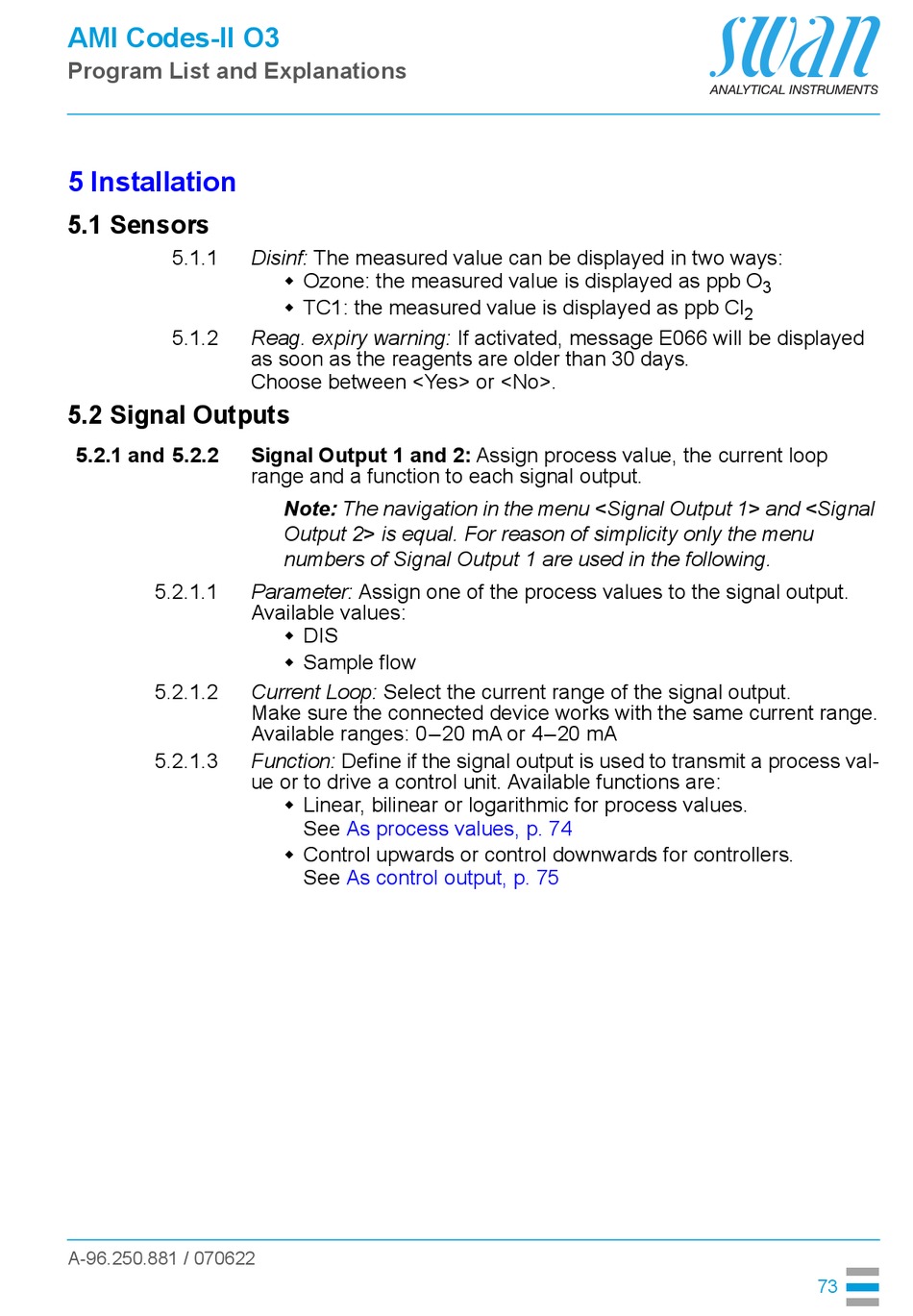

Disinf: The measured value can be displayed in two ways:
 Ozone: the measured value is displayed as ppb O
 TC1: the measured value is displayed as ppb Cl
Reag. expiry warning: If activated, message E066 will be displayed
as soon as the reagents are older than 30 days.
Choose between <Yes> or <No>.
Signal Output 1 and 2: Assign process value, the current loop
range and a function to each signal output.
Note: The navigation in the menu <Signal Output 1> and <Signal
Output 2> is equal. For reason of simplicity only the menu
numbers of Signal Output 1 are used in the following.
Parameter: Assign one of the process values to the signal output.
Available values:
 DIS
 Sample flow
Current Loop: Select the current range of the signal output.
Make sure the connected device works with the same current range.
Available ranges: 0–20 mA or 4–20 mA
Function: Define if the signal output is used to transmit a process val-
ue or to drive a control unit. Available functions are:
 Linear, bilinear or logarithmic for process values.
See As process values, p. 74
 Control upwards or control downwards for controllers.
See As control output, p. 75
3
2
73
