Installation of Flow Cell
CAUTION
Fragile Part
Handle the constant head tube with care.
To avoid damage during the transport, the constant head tube [C] of
the AMI Codes-II O3 is not installed.
Level

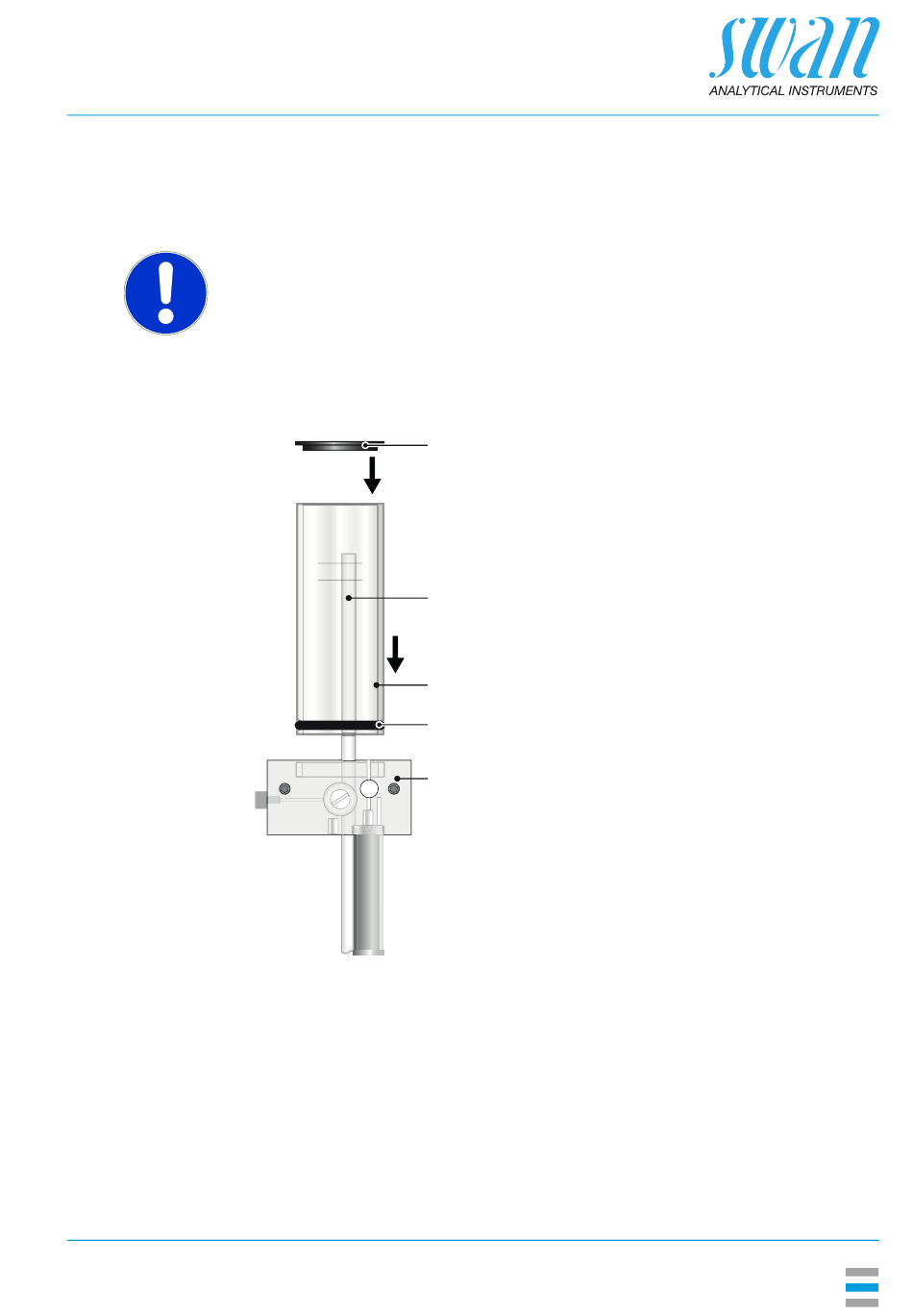

To install the constant head tube proceed as follows:
1 Unpack the constant head tube [C].
2 Push the constant head tube into the flow cell block [E].
3 Put the constant head cover [A] onto the constant head tube.
4 Check if the overflow tube [B] is aligned with the upper Level
mark.
A
Constant head cover
A
B
Overflow tube
C
Constant head tube
D
Gasket
E
Flow cell block
B
C
D
E
