Identifying Ports
system controller. For DTE to DTE communications, use an RJ-45 cable that is set up for
a null modem configuration, in which the transmit and receive signals cross over. You can
use a crossover adapter with a standard RJ-45 cable to achieve the required null modem
configuration. See
RJ-45 Crossover Pinouts

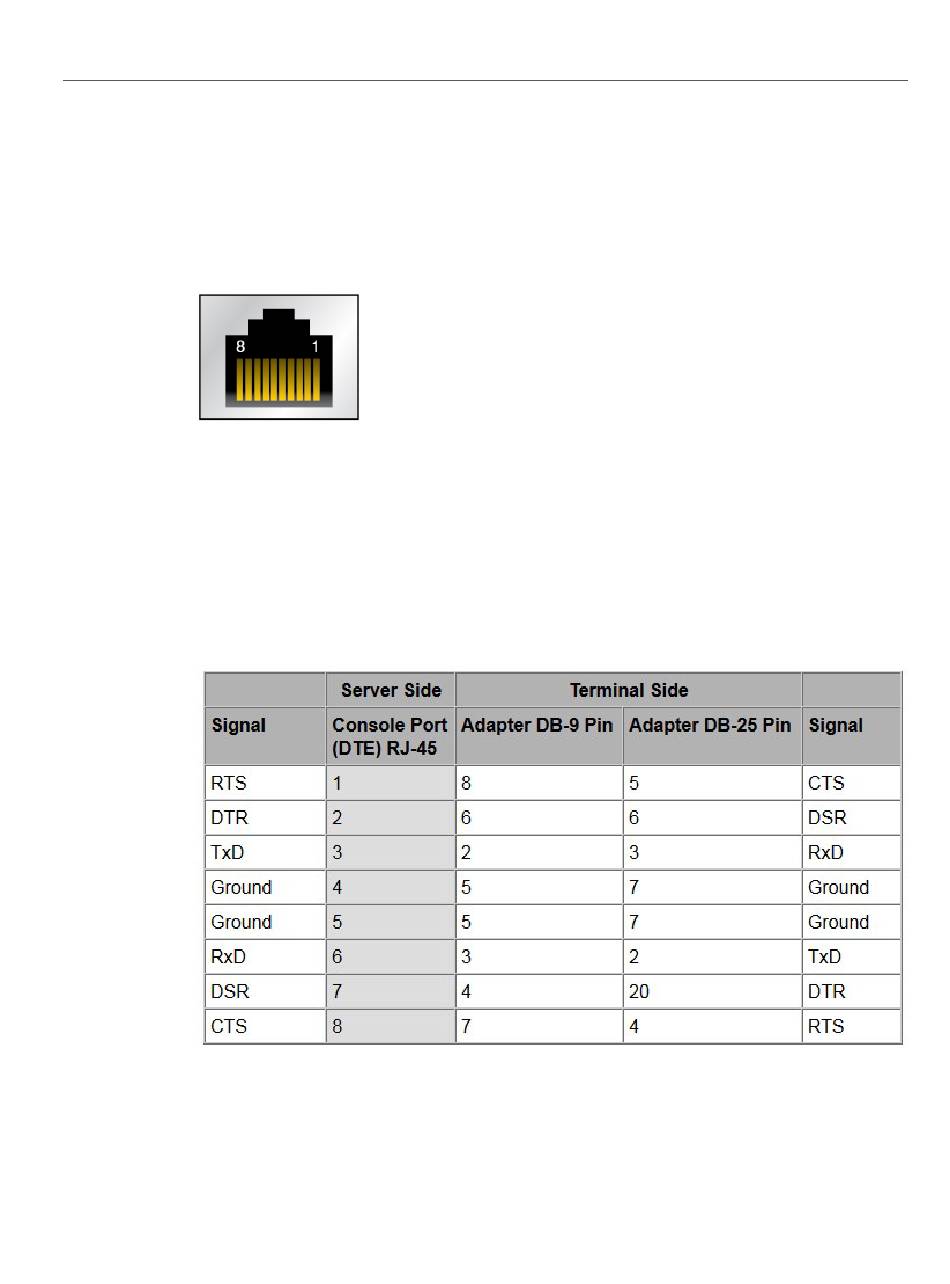

Use this table to identify the appropriate crossover cable or adapter. In this table, the RJ-45
column represents the connector on the system and the DB-9 and DB-25 columns refer to the
connector on the terminal side.
This diagram is an example of an RJ-45 to DB-9 conversion.
62
SPARC S7-2L Server Installation Guide • June 2017
"Rear Panel Components (Installation)" on page
20.
