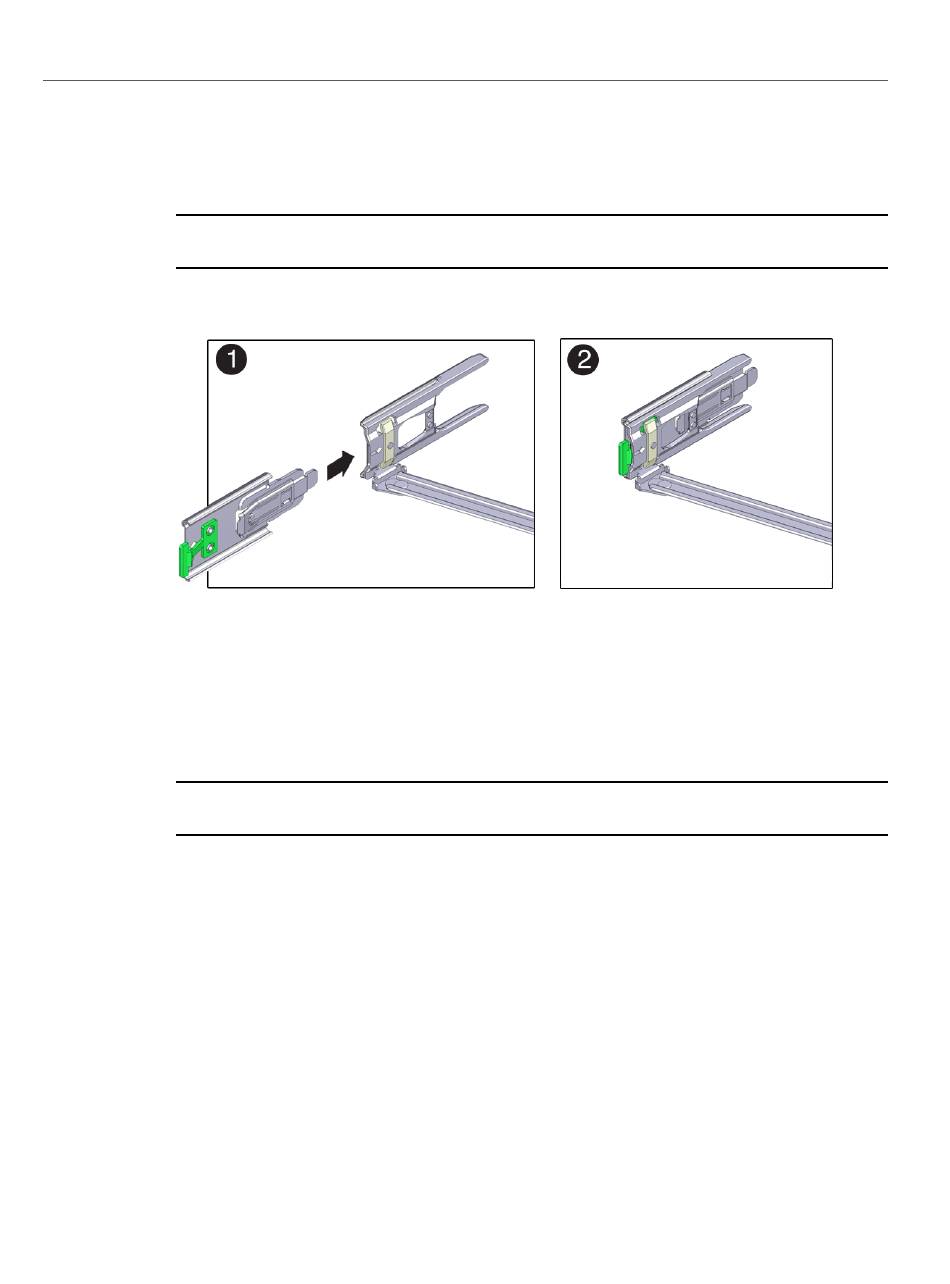

Remove the tape that secures the slide rail latching bracket to connector D and ensure that the

latching bracket is properly aligned with connector D (panels 1 and 2).

Note -

The CMA is shipped with the slide rail latching bracket taped to connector D. You must

remove the tape before you install this connector.

Install the CMA's connector D into the left slide rail.

While holding the slide rail latching bracket in place, insert connector D and

its associated slide rail latching bracket into the left slide rail until connector

D locks into place with an audible click (panels 1 and 2).

When inserting connector D into the slide rail, the preferred and easier method is to

Note -

install connector D and the latching bracket as one assembly into the slide rail.

Gently tug on the left side of the CMA's slide bar to verify that connector D is

properly seated.
