Verify Operation of Slide Rails and CMA
When the server is fully extended, you must release two sets of slide rail stops to return the
server to the rack.
a. Find and touch the first set of stops, which are levers located on the inside
of each slide rail, just behind the rear panel of the server.
Push in both green levers simultaneously and slide the server toward the rack.
The server slides in approximately 18 inches (46 cm) and stop.
Verify that the cables and the CMA retract without binding before you continue.

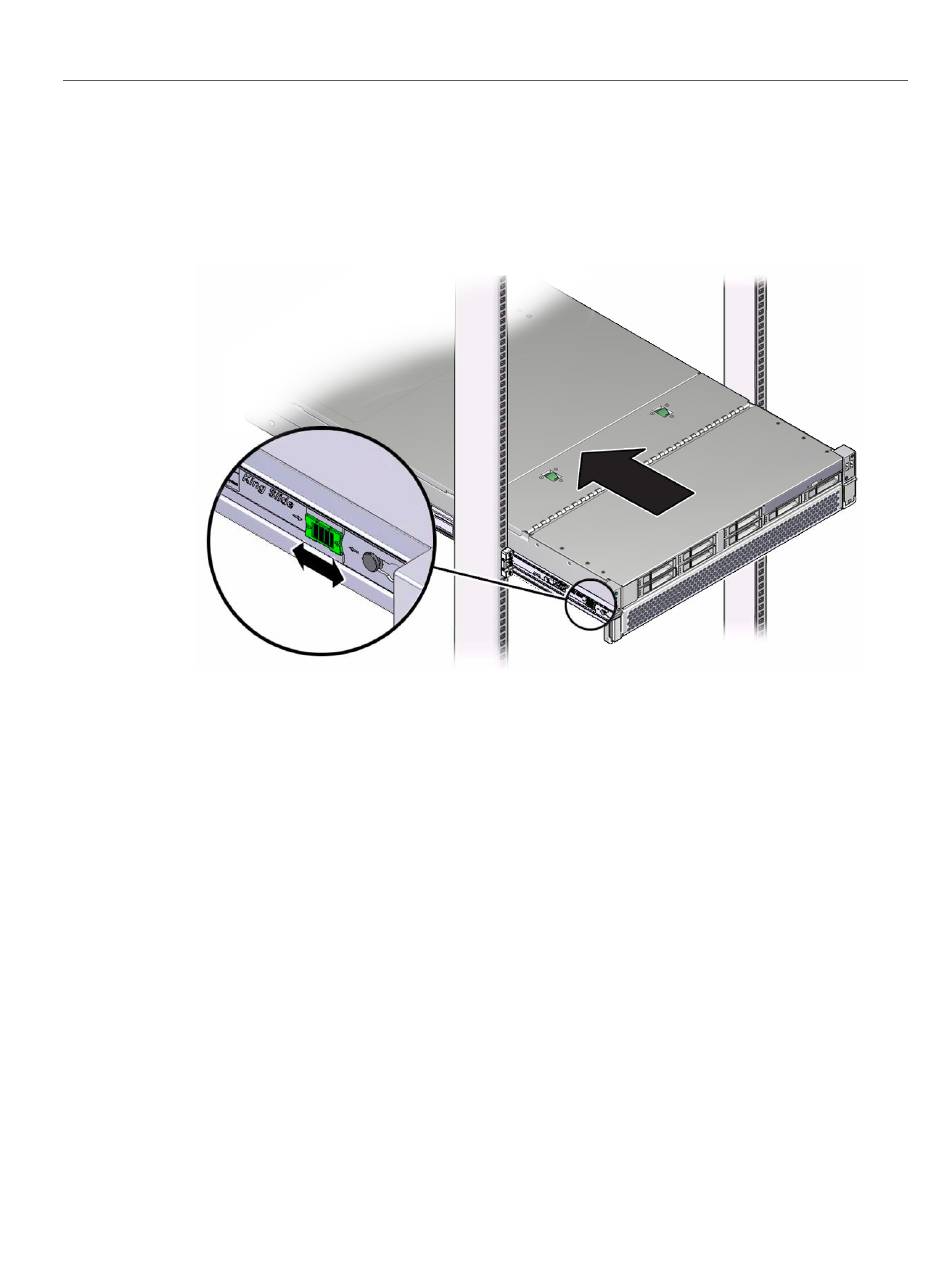

b. Find and touch the second set of stops, which are the slide rail release
buttons located near the front of each mounting bracket.
Simultaneously push both of the green slide rail release buttons, and push the server
completely into the rack until both slide rail locks engage.
5. Adjust the cable straps and CMA, as required.
