Install the Server Into the Slide Rail Assemblies
4.
Insert the mounting brackets into the slide rails, and then push the server
into the rack until the mounting brackets encounter the slide rail stops
(approximately 12 inches, or 30 cm).
No.
1
2
Simultaneously pull down and hold the slide rail release levers on each
5.
mounting bracket while you push the server into the rack.
Continue pushing the server into the rack until the slide rail locks (on the front of the mounting
brackets) engage the slide rail assemblies.
44
SPARC S7-2L Server Installation Guide • June 2017
Description

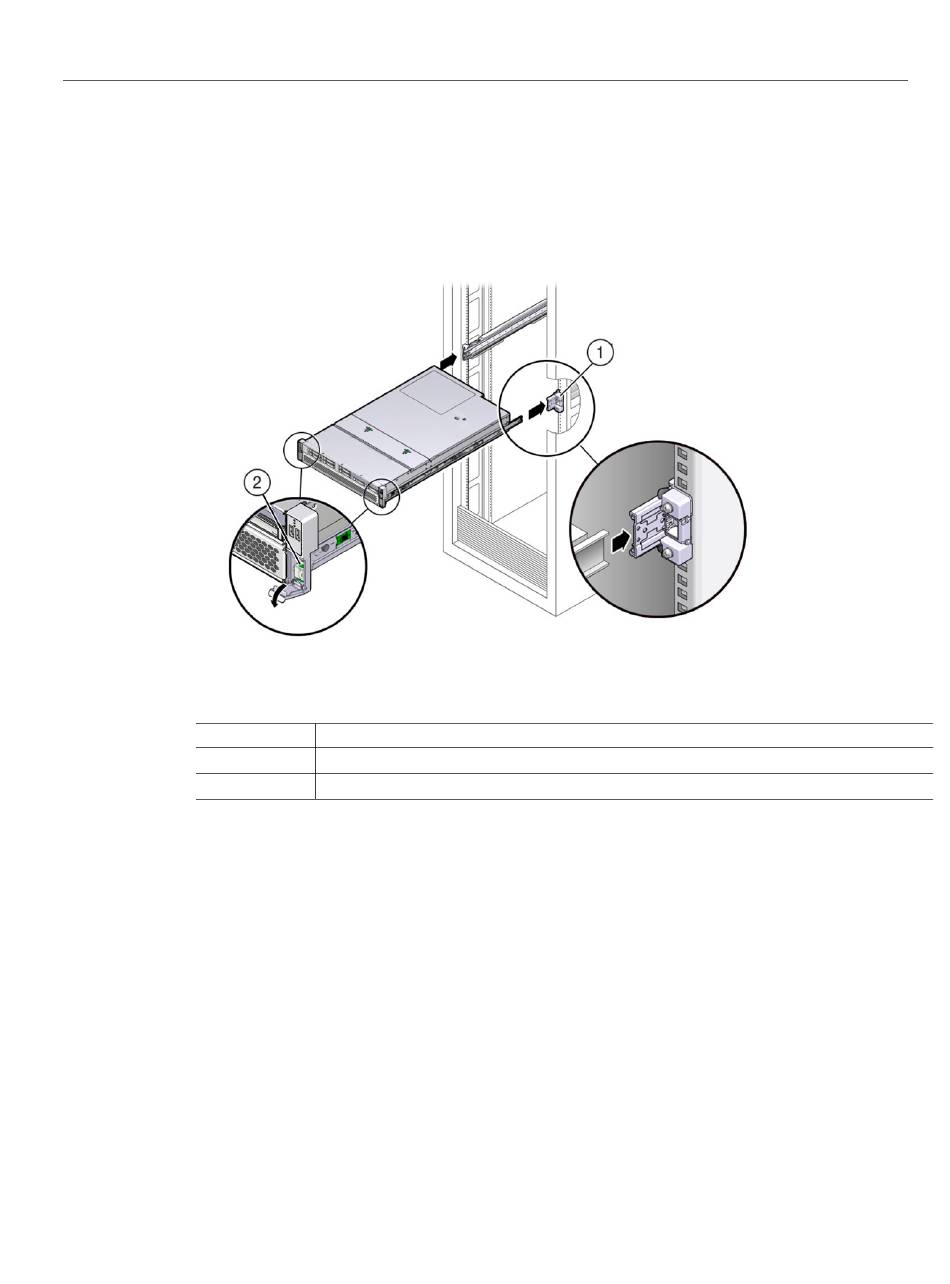

Inserting mounting bracket into slide rail
Slide rail release lever
