Another example is given by setting Alarm 2 based on the vector sum VSUM (see Figure 4.8.3)
while this value is not calculated in the software, because in the background file this has not been
activated (see Figure 4.8.4, where the signal peak and the dominant frequency are calculated but
not the vector sum). If the setting Mode is change to "Peak + Vector Sum", then the warning
disappears (see Figure 4.8.5).

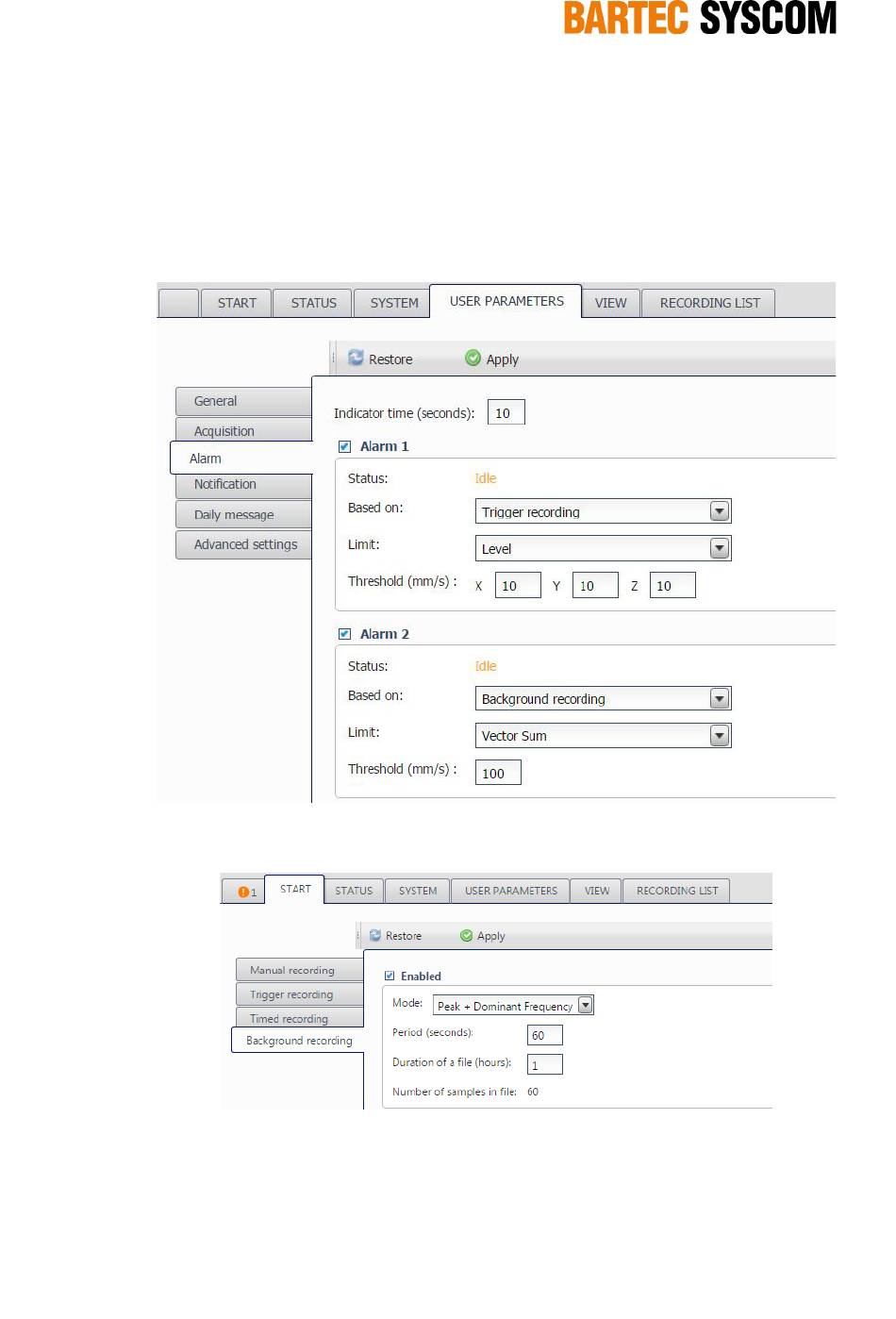

Figure 4.8.3. Setting of the alarm, where the Alarm 2 is based on the Vector Sum.
Figure 4.8.4. Settings of background recording, with selection of the peak and the dominant frequency, that
causes a conflict with the alarm settings.
