Syscom Video MR3000C User Manual page 48

check the synchronization status with the SCS
•
check the last synchronization to the cloud software
•
select the interval between two synchronizations with the cloud software.
•
The synchronization with the cloud software is necessary because certain parameters related to
the measurements can be also modified in the SCS cloud software. These parameters are:
Name of the device
•
Comment
•
Trigger levels
•
Alarm 1 parameters
•
Alarm 2 parameters
•
Background settings
•
During the synchronization, both the MR3000C/TR firmware and the SCS check if the parameters
have been changed. There are three cases:
1. The parameters have been changed only in the firmware → the SCS is updated during
the synchronization;
2. The parameters have been changed only in the SCS → the firmware is updated during
the synchronization;
MR3000CMR3000C_TR_v2.0_rev1.odt

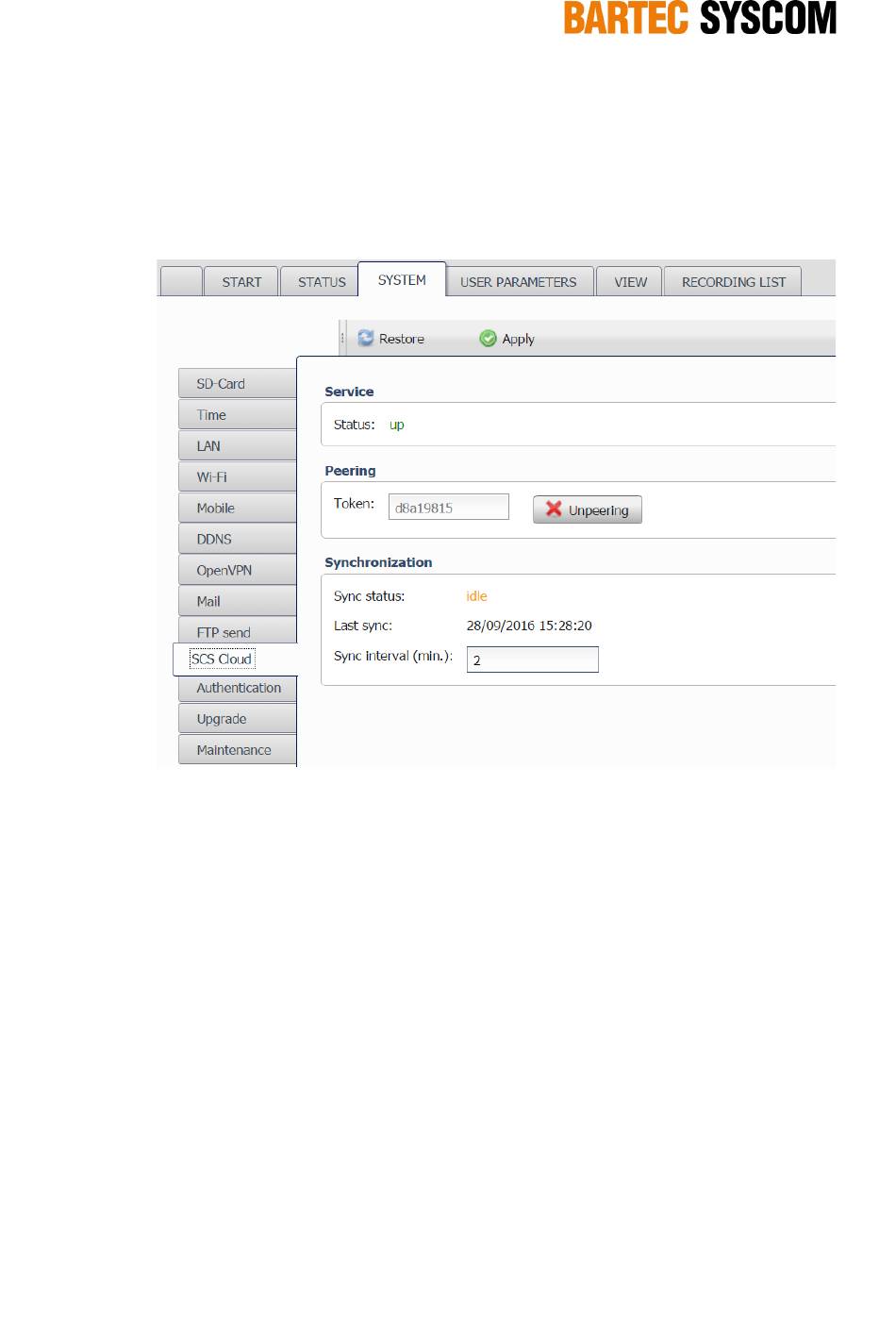

Figure 4.3.10. Subsection dedicated to the SCS Cloud.
subject to technical change without notice
48
