ASCII, a simple format where all the data recorded is put in a simple text file. It is
convenient if you plan to use software like GNU Octave, Matlab or other commercial
software to view and process your data.
Moreover, you can choose the maximum duration for manual events. This means that if you do not
stop the measure, the entire measure is divided in files having the duration set at this point.
Limitation for triggered recordings can be set in chapter 4.1.2.
In Background recording settings you can choose between two file formats:

BMR, the proprietary format prepared by Bartec Syscom for background files.

ASCII format
In Traffic settings you can set-up how often the background files are pushed to the server,
choosing a value included from 1 to 60 minutes. Moreover, you can choose to push the files after a
trigger event.
4.5

VIEW

4.5.1

Acquisition

This service provides a real-time display of the waveform data, as they are recorded if the trigger
criteria (see chapter 4.1.2) are fulfilled. The data are filtered and the sampling rate is as set in
Acquisition (see chapter 4.4.2).
Each axis is can be unselected, so that you can display only one axis if you want.
The Query refresh period is the period between two requests from your computer to the MR. If
you set it to a small value (like 100ms), the display is smooth, but also requires a fast
communication to the MR3000C/TR (direct connection, not via GPRS) and more CPU time on your
MR3000CMR3000C_TR_v2.0_rev1.odt

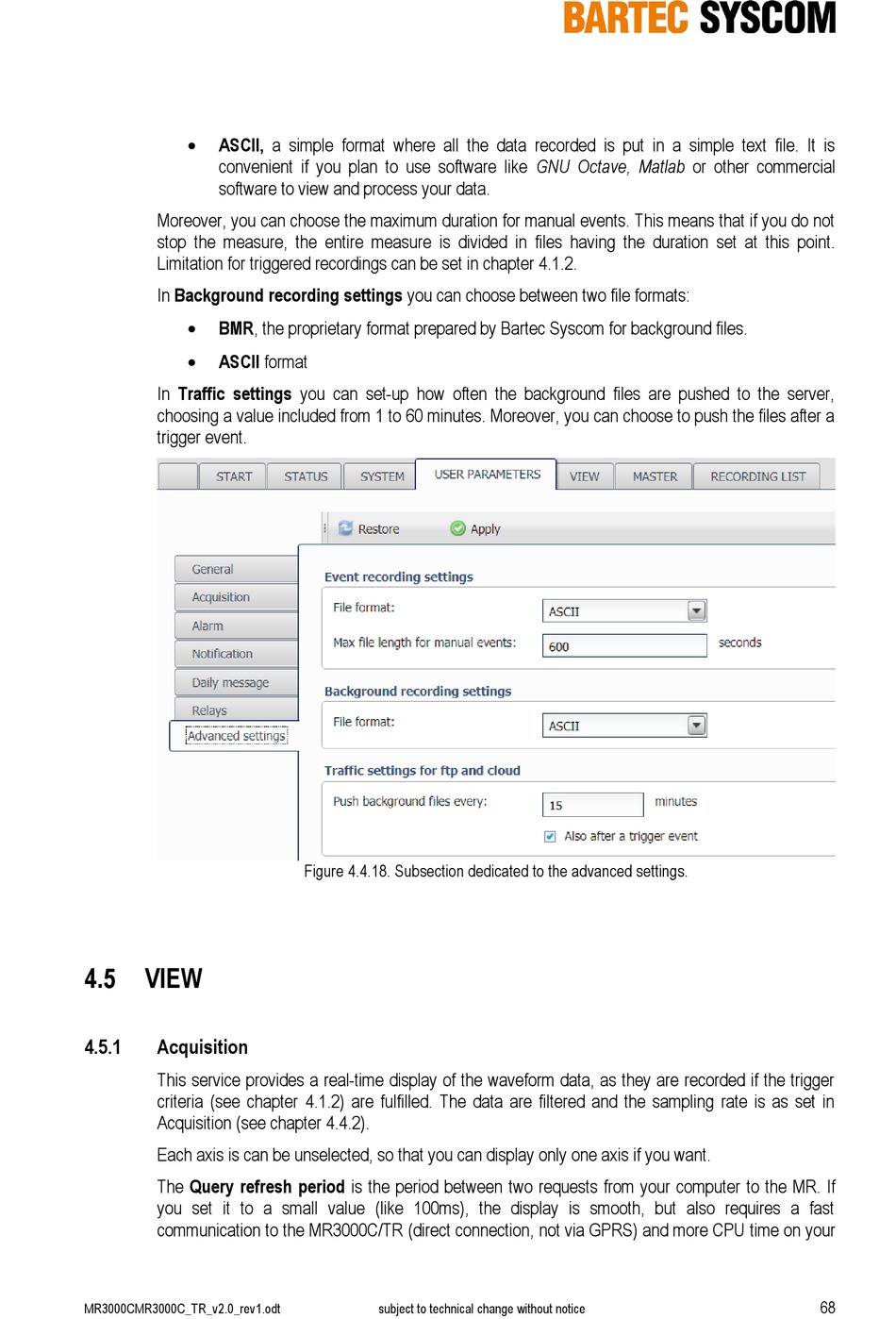

Figure 4.4.18. Subsection dedicated to the advanced settings.
