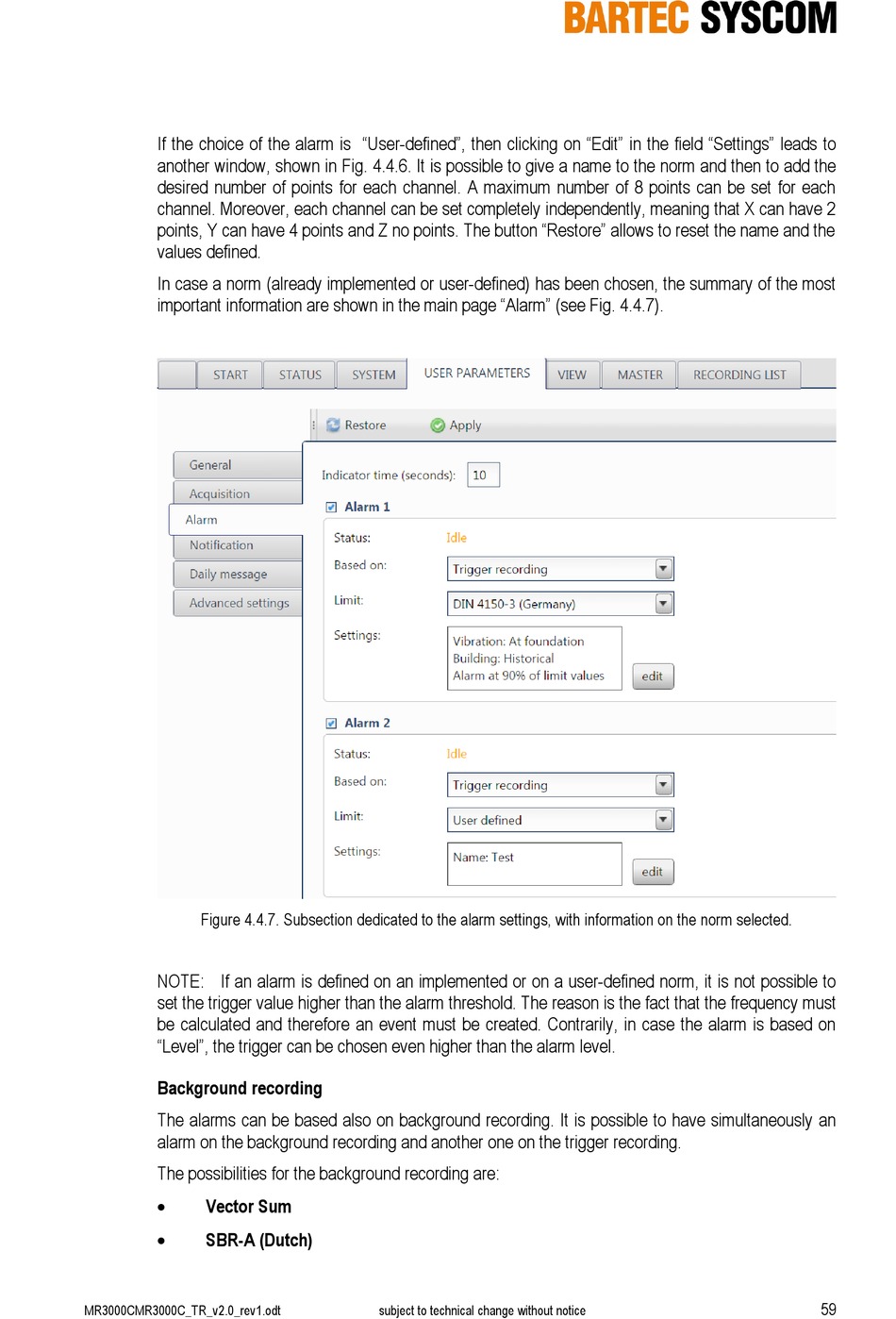

Syscom Video MR3000C User Manual page 59

If the choice of the alarm is "User-defined", then clicking on "Edit" in the field "Settings" leads to
another window, shown in Fig. 4.4.6. It is possible to give a name to the norm and then to add the
desired number of points for each channel. A maximum number of 8 points can be set for each
channel. Moreover, each channel can be set completely independently, meaning that X can have 2
points, Y can have 4 points and Z no points. The button "Restore" allows to reset the name and the
values defined.
In case a norm (already implemented or user-defined) has been chosen, the summary of the most
important information are shown in the main page "Alarm" (see Fig. 4.4.7).
Figure 4.4.7. Subsection dedicated to the alarm settings, with information on the norm selected.
NOTE: If an alarm is defined on an implemented or on a user-defined norm, it is not possible to
set the trigger value higher than the alarm threshold. The reason is the fact that the frequency must
be calculated and therefore an event must be created. Contrarily, in case the alarm is based on
"Level", the trigger can be chosen even higher than the alarm level.
Background recording
The alarms can be based also on background recording. It is possible to have simultaneously an
alarm on the background recording and another one on the trigger recording.
The possibilities for the background recording are:

Vector Sum

SBR-A (Dutch)
MR3000CMR3000C_TR_v2.0_rev1.odt subject to technical change without notice
59
