Relay board
NOTE: This subsection is related only to MR3000TR.
The MR3000TR is equipped with a relay board, as shown in Figure 2.5.4.
The relay board allows to have:
two relay outputs, to connect external devices, typically for alarming (like sirens,
•
gyrophares), with current 2 A and tension 30 VDC.
one hardware trigger input, to trigger the instrument with an external device (see Table
•
2.2.1).
An alarm box is available in case a higher power is needed. Please visit
http://www.syscom.ch/products/mr3000tr/
information on it.
MR3000CMR3000C_TR_v2.0_rev1.odt

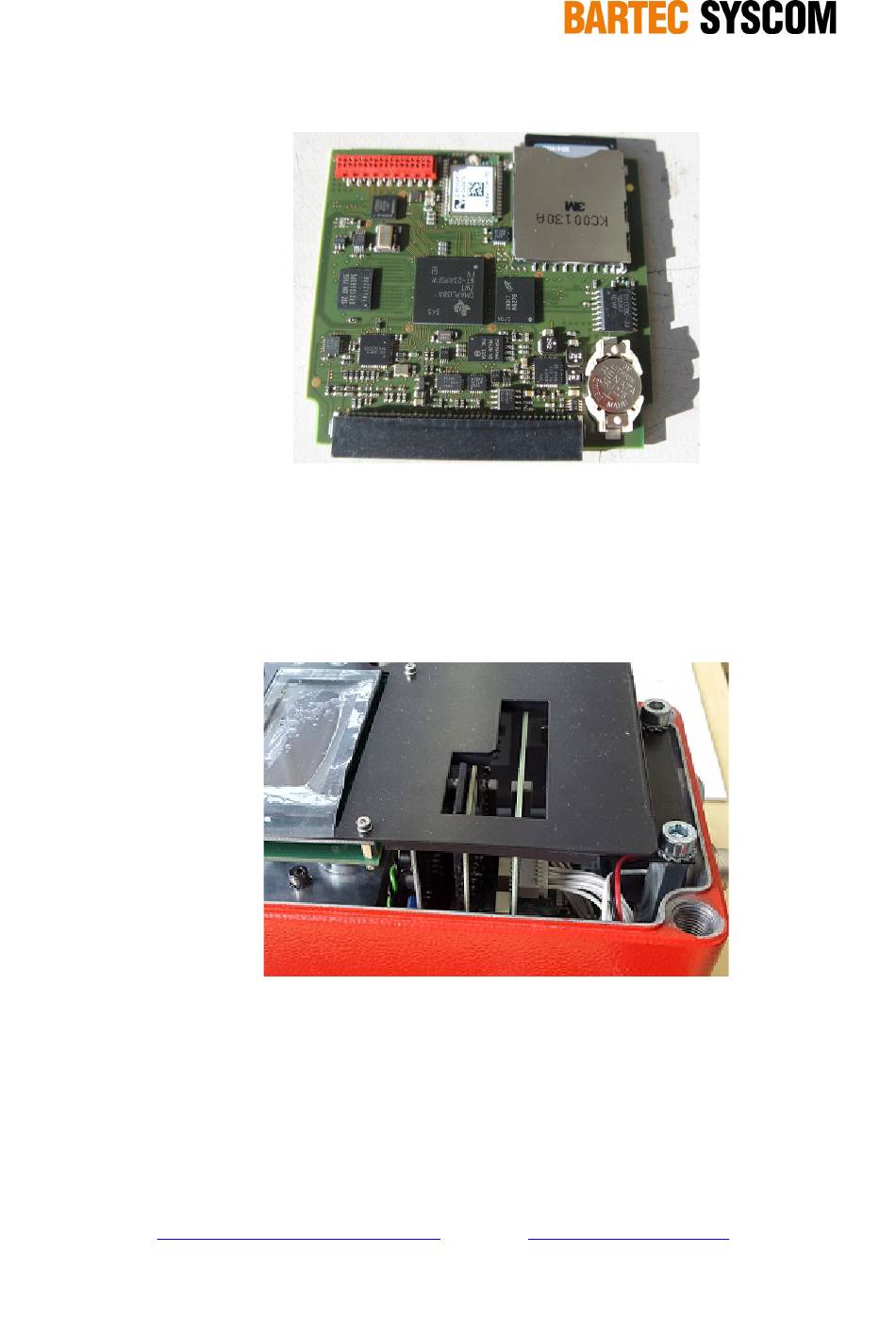

Figure 2.5.3. The internal lithium battery on the main board.
Figure 2.5.4 The relay board of the MR3000TR.
