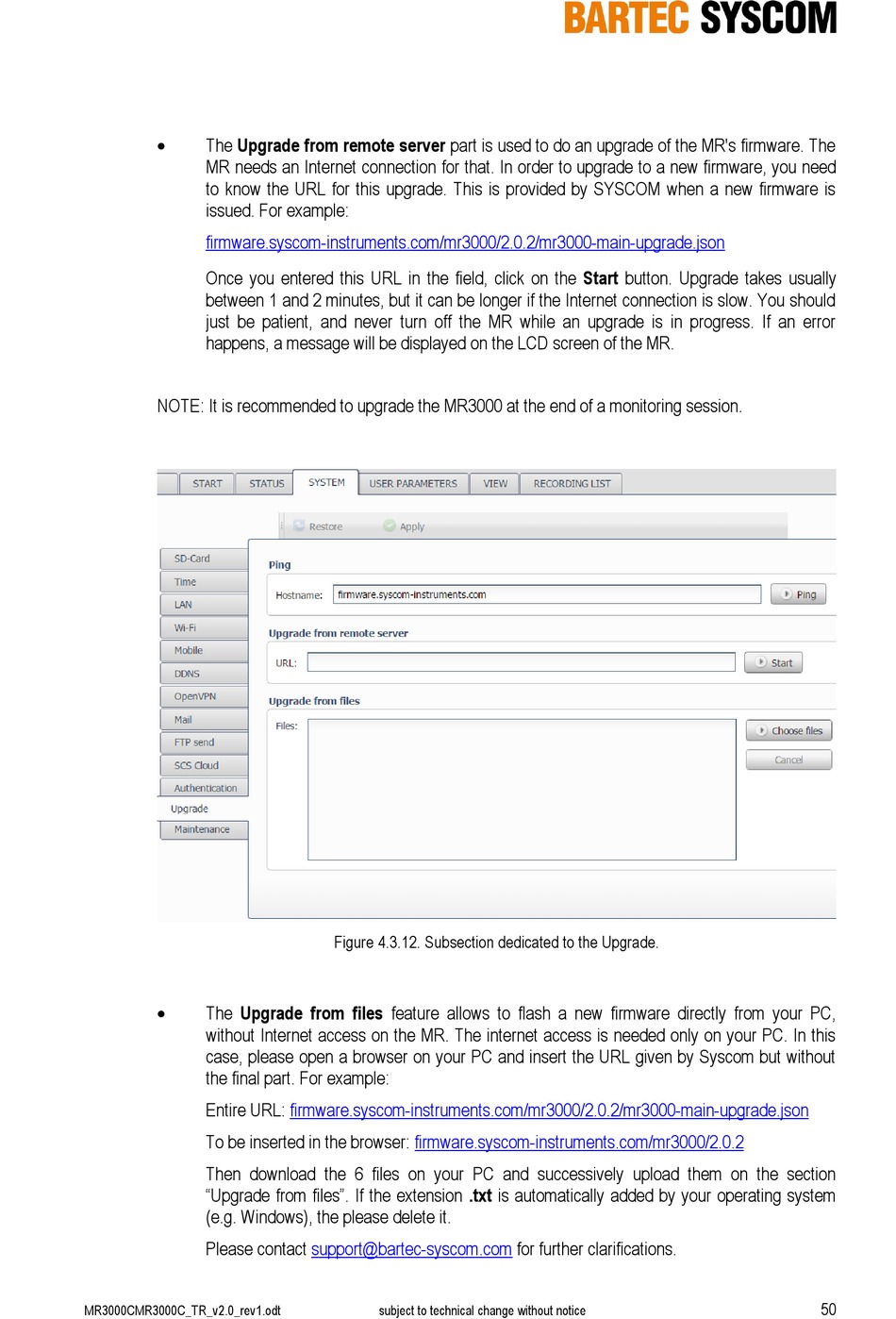

Syscom Video MR3000C User Manual page 50


The Upgrade from remote server part is used to do an upgrade of the MR's firmware. The
MR needs an Internet connection for that. In order to upgrade to a new firmware, you need
to know the URL for this upgrade. This is provided by SYSCOM when a new firmware is
issued. For example:
firmware.syscom-instruments.com/mr3000/2.0.2/mr3000-main-upgrade.json
Once you entered this URL in the field, click on the Start button. Upgrade takes usually
between 1 and 2 minutes, but it can be longer if the Internet connection is slow. You should
just be patient, and never turn off the MR while an upgrade is in progress. If an error
happens, a message will be displayed on the LCD screen of the MR.
NOTE: It is recommended to upgrade the MR3000 at the end of a monitoring session.

The Upgrade from files feature allows to flash a new firmware directly from your PC,
without Internet access on the MR. The internet access is needed only on your PC. In this
case, please open a browser on your PC and insert the URL given by Syscom but without
the final part. For example:
Entire URL:
To be inserted in the browser:
Then download the 6 files on your PC and successively upload them on the section
"Upgrade from files". If the extension .txt is automatically added by your operating system
(e.g. Windows), the please delete it.
Please contact
MR3000CMR3000C_TR_v2.0_rev1.odt
Figure 4.3.12. Subsection dedicated to the Upgrade.
firmware.syscom-instruments.com/mr3000/2.0.2/mr3000-main-upgrade.json
firmware.syscom-instruments.com/mr3000/2.0.2
support@bartec-syscom.com
subject to technical change without notice
for further clarifications.
50
