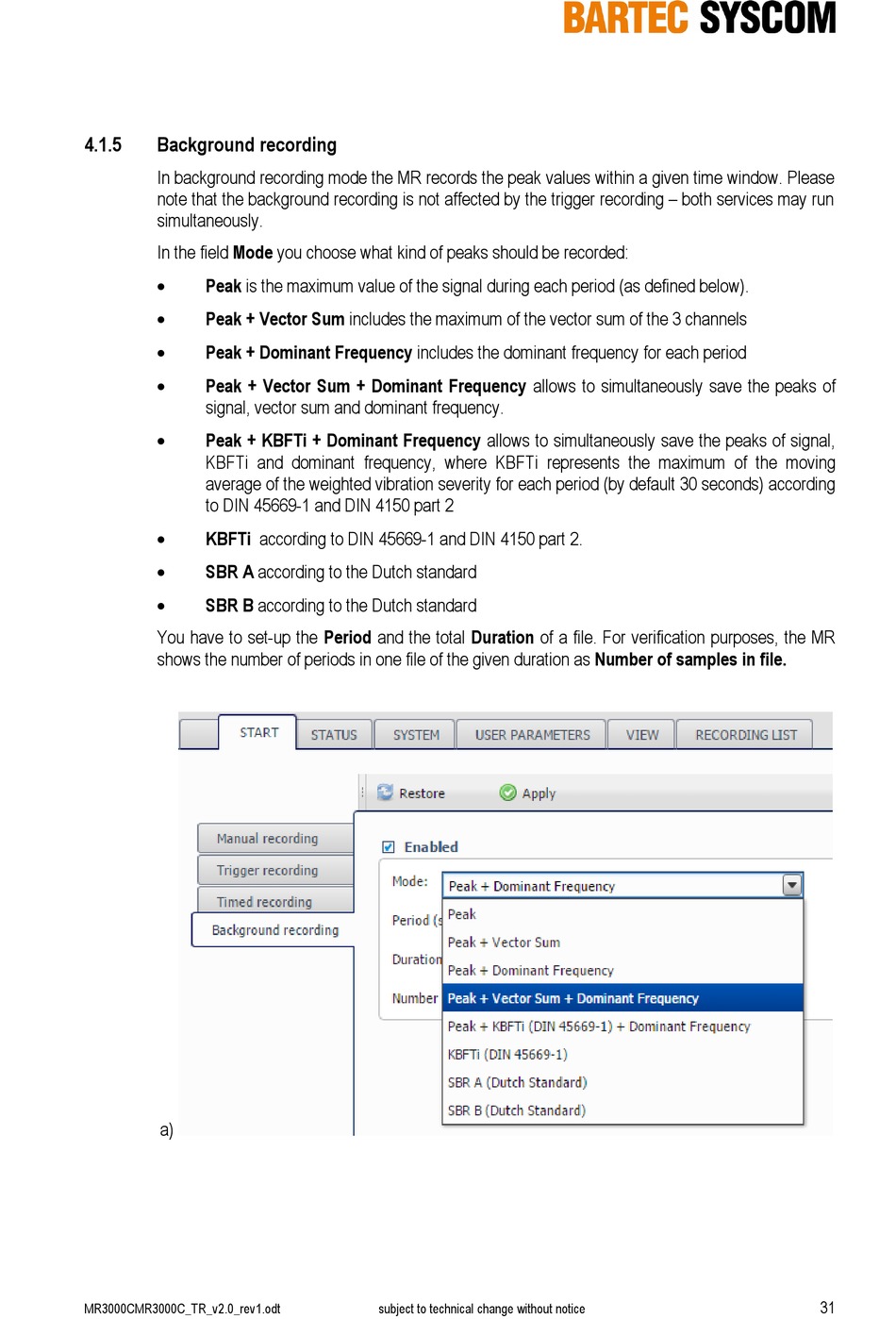

4.1.5

Background recording

In background recording mode the MR records the peak values within a given time window. Please
note that the background recording is not affected by the trigger recording – both services may run
simultaneously.
In the field Mode you choose what kind of peaks should be recorded:

Peak is the maximum value of the signal during each period (as defined below).

Peak + Vector Sum includes the maximum of the vector sum of the 3 channels

Peak + Dominant Frequency includes the dominant frequency for each period

Peak + Vector Sum + Dominant Frequency allows to simultaneously save the peaks of
signal, vector sum and dominant frequency.

Peak + KBFTi + Dominant Frequency allows to simultaneously save the peaks of signal,
KBFTi and dominant frequency, where KBFTi represents the maximum of the moving
average of the weighted vibration severity for each period (by default 30 seconds) according
to DIN 45669-1 and DIN 4150 part 2

KBFTi according to DIN 45669-1 and DIN 4150 part 2.

SBR A according to the Dutch standard

SBR B according to the Dutch standard
You have to set-up the Period and the total Duration of a file. For verification purposes, the MR
shows the number of periods in one file of the given duration as Number of samples in file.
a)
