Once clicked on a contact line or on the add button, a window like in Fig. 4.4.12 is shown. In the
first part (Contact details), it is possible to insert name, e-mail and phone number of the contact. In
the second part (Messages), the user can choose the desired messages to be sent to the contact.
The condition to trigger a message can either be related to Event recording or – regardless of the
recording of an event – when the vibration reaches the Alarm threshold (see Section 4.4.3). The
difference between the two methods is:

Alarm messages related to Event recording include additional information, such as the peak
of the event, peak of the vector sum of the event and the dominant frequency of the event.
To use this option, you have to make sure that the trigger threshold is below the alarm
threshold. Such messages are sent immediately after the event is recorded, i.e. the vibration
MR3000CMR3000C_TR_v2.0_rev1.odt

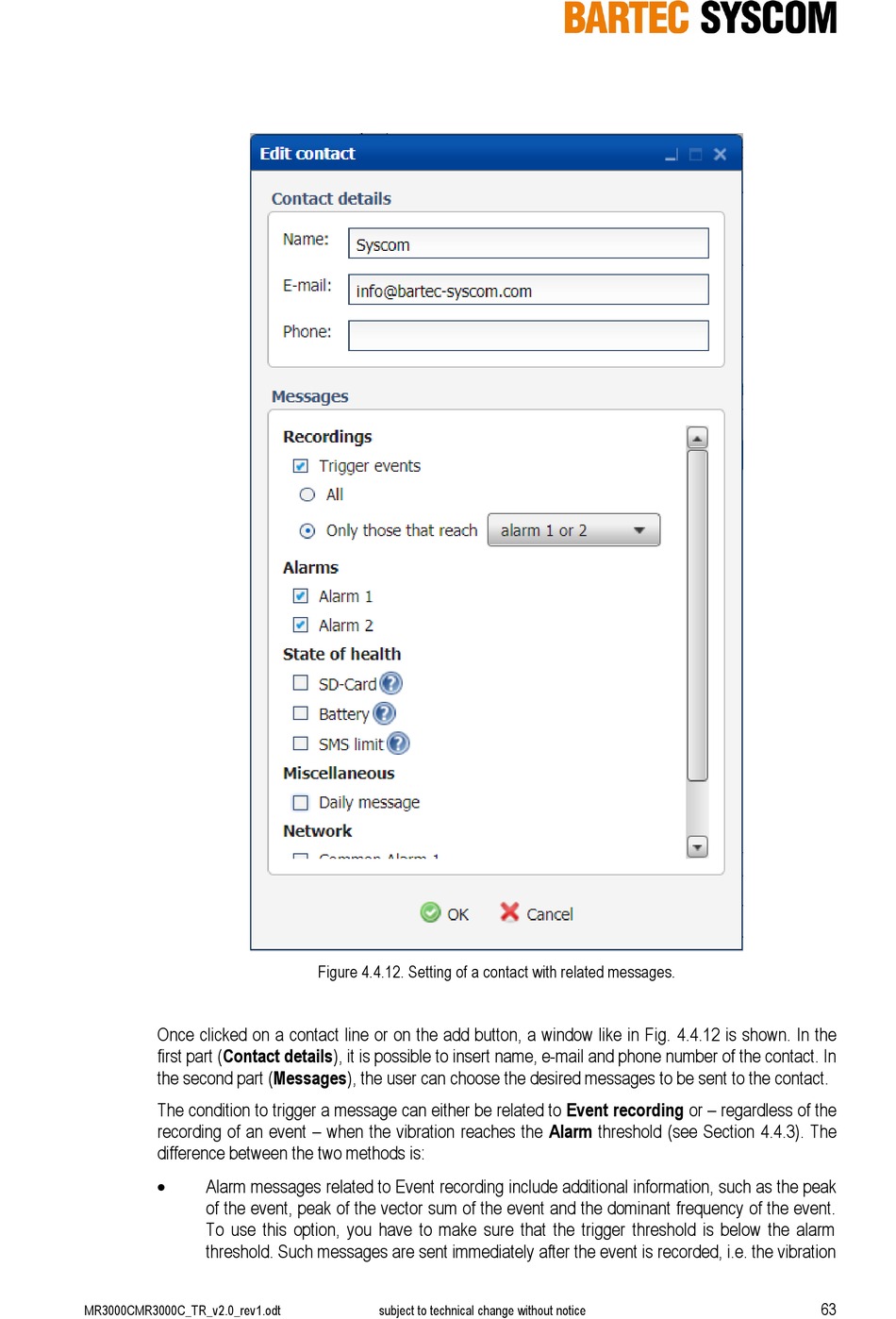

Figure 4.4.12. Setting of a contact with related messages.
