Common trigger means that all MRs in the network start recording if a single MR or a group of MRs
meet the trigger criteria. A group is defined by a logical AND combination of individual MRs. It is
possible to define several groups. The groups are combined with a logical OR condition.
Common alarm provides an alarm voting logic. The set-up is – similar to the common trigger –
made by logical AND and OR combinations.
4.6.1

Config / Status

Here you define which MRs are part of the network. Simply add the IP address of the MR. The
Master itself must be included (simply check the itself box). The IP address of the Master could be
shown as 127.0.0.1 (localhost) or as its own IP address (Figure 4.6.1).
If the MRs are connected by wire in the same physical network, you use the real IP address (as
shown on the LCD of each MR). If the MRs have a virtual address (VPN address) in addition to the
physical address, you have to use the virtual address. Don't forget to check the Enabled box and
click on Apply.
The column MRs status should show ok: this means the Master is able to communicate with the
Slave. The column Time synced with master should show yes. This means the time difference in
the corresponding MR is less than 3 seconds compared to the Master. This is usually the case if all
MRs have access to a NTP server in the Internet or if a specific MR in the network is acting as time
server. If you have an MR as internal time server, configure all other MRs to use the IP address of
this MR as NTP server. (see chapter 4.3.2).
In the example proposed in Figure 4.6.1, three MRs are connected on the same local network, and
the IP address has been changed manually.
NOTE: the time synchronization might take few minutes to be synchronized at start.
MR3000CMR3000C_TR_v2.0_rev1.odt

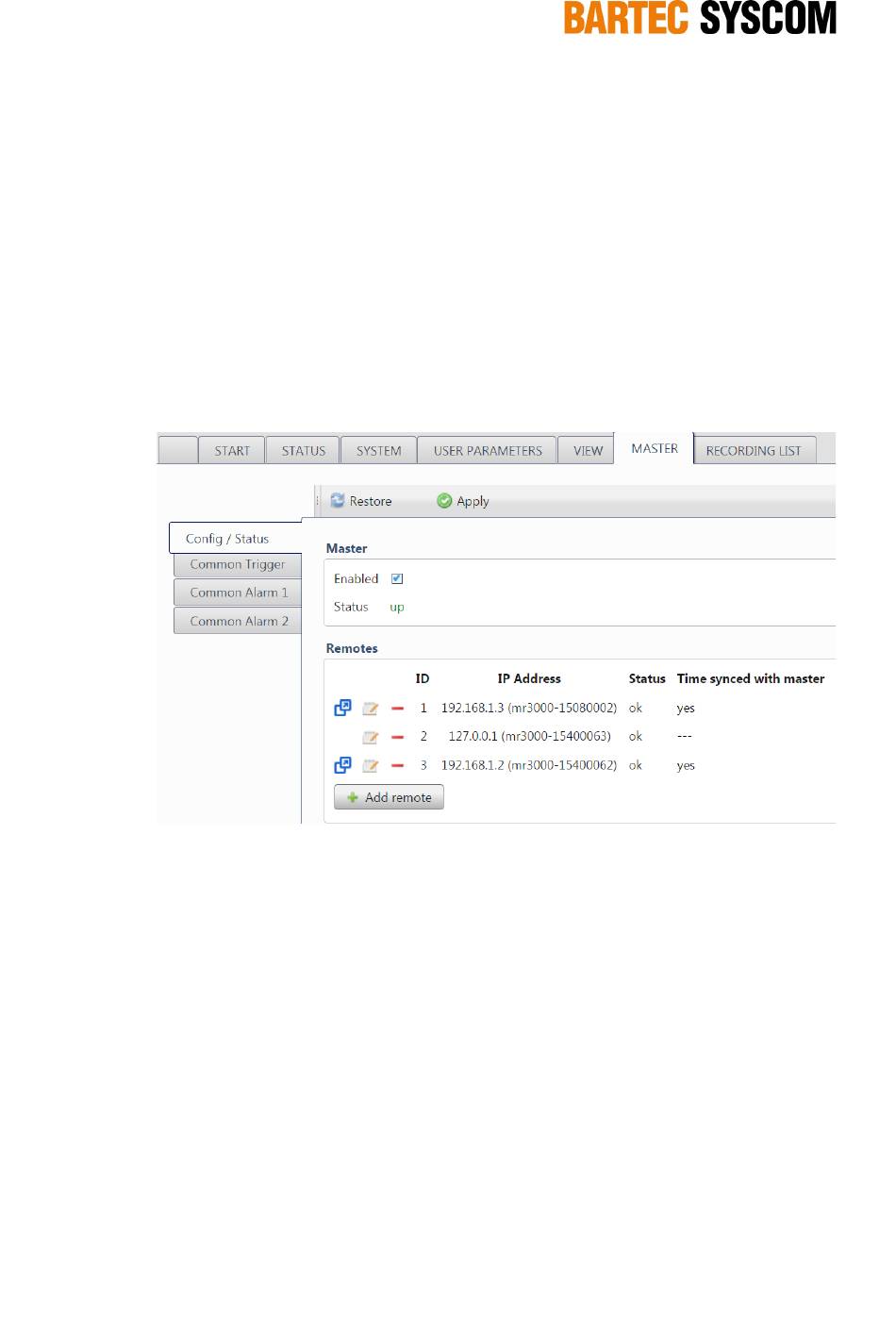

Figure 4.6.1. Subsection dedicated to the configuration of the network.
