The Name may be used as the root-directory for the FTP service. No special characters and
no spaces are allowed for the Name. The Name is written in the Header of each XMR /
BMR file.

The Comment string should describe the location of the MR. It is intended to be included
the alarm messages. Special characters are allowed, but use extra space if the alarm
message is sent as SMS.
4.4.2

Acquisition

In the acquisition settings, it is possible to select the desired filter applied on the raw signal and the
sampling rate (Figure 4.4.2a).
Velocity sensor
In case of velocity sensor, the pre-defined Filter types can be selected among the choices shown
in 4.4.2b. It is important to select the adequate filter for the desired application. The filter "Bandpass
of the sensor" means that there is only the anti-aliasing filter applied on the signal, which cuts off
the frequency contents above 80 % of Nyquist frequency (= half of the sampling rate).
Moreover, you can choose the Sampling rate, which is the number of samples per second. For the
MR3000C/TR, the selection is between 50 Hz and 2000 Hz.
NOTE: Higher sampling rates accumulate more data and create larger files.
a)
MR3000CMR3000C_TR_v2.0_rev1.odt

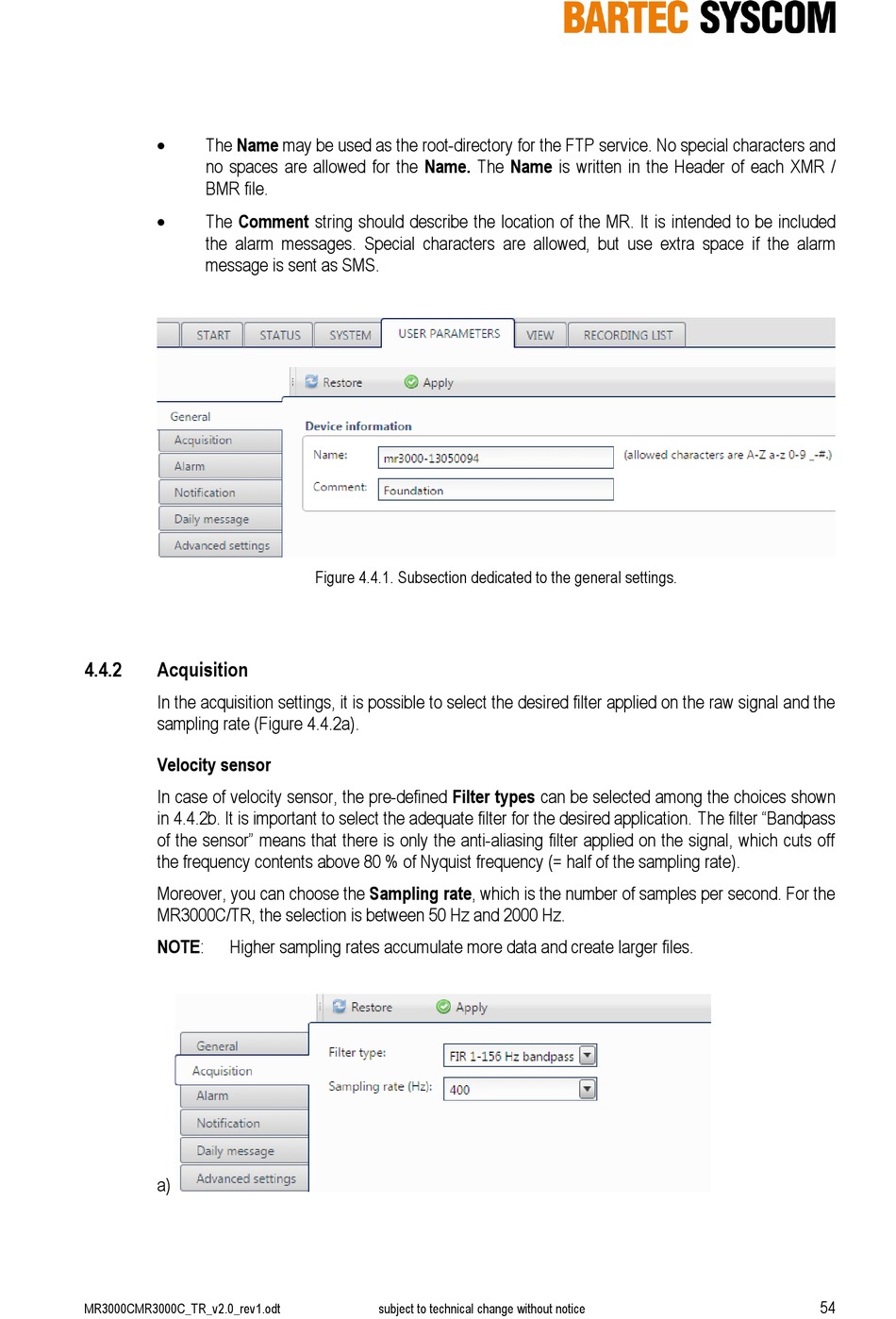

Figure 4.4.1. Subsection dedicated to the general settings.
subject to technical change without notice
54
