Power

Here you connect either the external AC/DC adapter, the external battery pack (provided by Bartec
Syscom ) or an external battery.
NOTE: There is no internal battery in the MR3000C/TR.
2.2.2

LAN

Here you connect the Ethernet cable (wired communication via router or direct connection to your
PC) – for further detail check chapter 3.1.2 and 3.1.3. The MR3000 interfaces to a standard
10/100-BASE LAN.
If you hook-up the MR3000 to a router with PoE (Power over Ethernet), the MR is powered over
this connection and no additional supply power is needed. You may however connect an additional
power source for redundancy.
2.2.3

GPS (optional)

Here you connect to an appropriate GPS module for time synchronization.
2.2.4

AUX

The AUX connector is available only for the MR3000TR, and it is dedicated to the relay cable
81000580. In the MR3000TR there are:
2 relay outputs, for the connection to external devices;
•
1 hardware trigger input, to start the measure with an external trigger.
•
The relay cable contains the connections for both the relay and the hardware trigger.
The MR3000TR can be connected to an external Alarm Box, whose application note is provided at
the following webpage: http://www.syscom.ch/products/mr3000tr/.
MR3000CMR3000C_TR_v2.0_rev1.odt

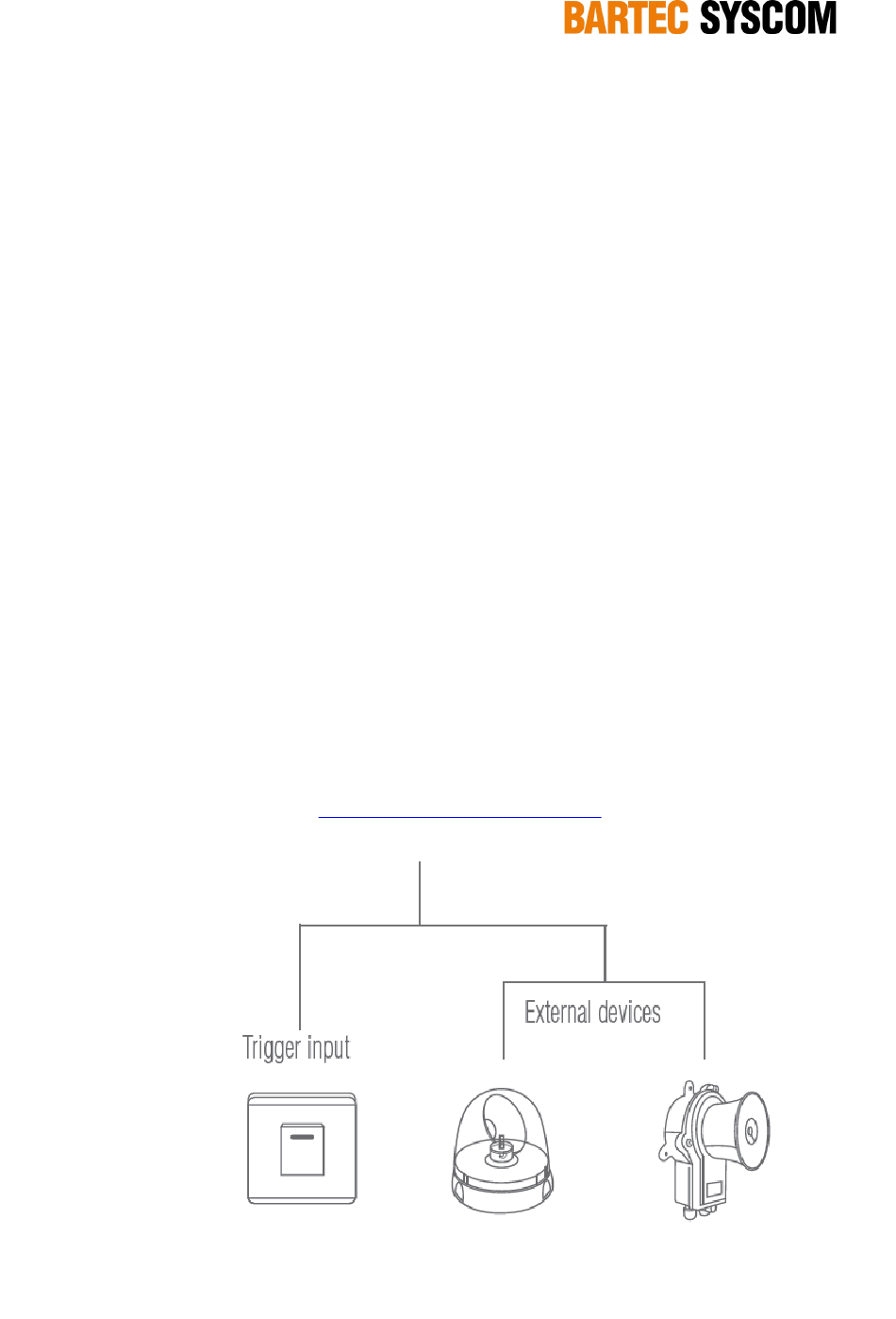

Figure 2.2.2. Relay cable 81000580 and possible connections.
