forward or backward, and the double arrows send you back at the beginning or the end of the
graph.
If you are positioned at the end of the graph, it will scroll by itself when a new sample arrives.
4.6
Master functionality
The "Master" functionality is an optional feature – on a standard instrument this tab is not available.
To use this feature the option must be activated in one of the instruments present in the same
network: it is called the Master. The other instruments are standard instruments, called Slaves.
Communication in the network is handled by the Master.
With this feature some MRs (up to 32) can be integrated in a network to perform common trigger
and common alarm.
In case of Master functionality, a good synchronization among the MRs in the network is highly
recommended. This is achieved by synchronizing the clocks of all MRs in the network by one single
MR (not necessarily the Master). This MR may be equipped with a GPS clock or itself be
synchronized by an NTP server.
MR3000CMR3000C_TR_v2.0_rev1.odt

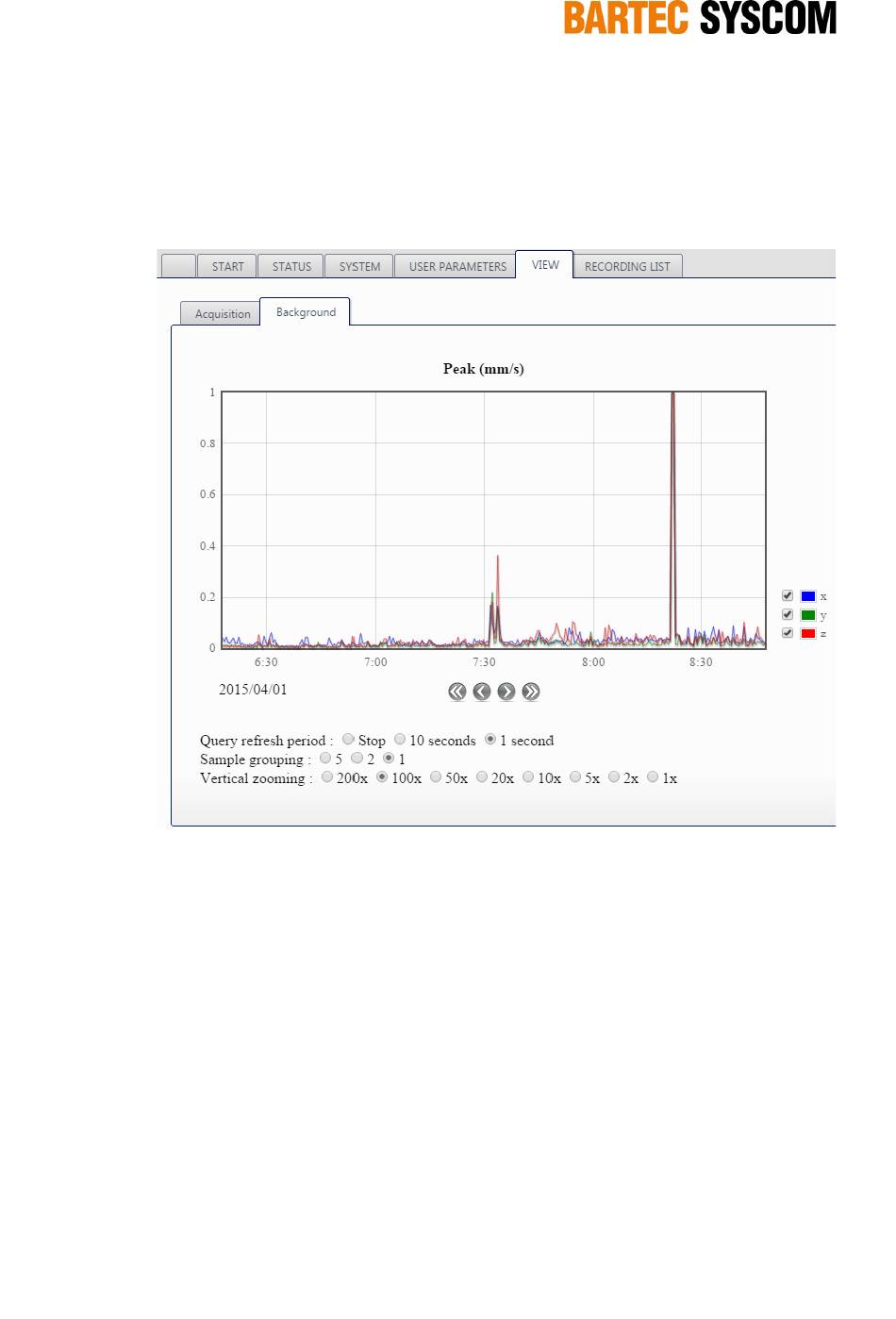

Figure 4.5.2. Real-time visualization of background data.
subject to technical change without notice
70
