b)
NOTE:
NOTE:
4.2
Status
This page displays information about the MR. The page is updated automatically.
ID contains:
•
Name of the MR3000 (by default this is MR3000, followed by a dash and its serial
o
number). You may change the name, according to your needs (see Section 4.4.1).
Comment: a description of the location where you have installed the MR. This text is
o
shown together with the name in the messages (see Section 4.4.1).
UID unit ID (serial number) – can not be changed
o
firmware version.
o
Sensor tells you for which sensor the MR is configured.
Activity reports the current activity of the data acquisition services:
Trigger shows 3 different states:
o
MR3000CMR3000C_TR_v2.0_rev1.odt

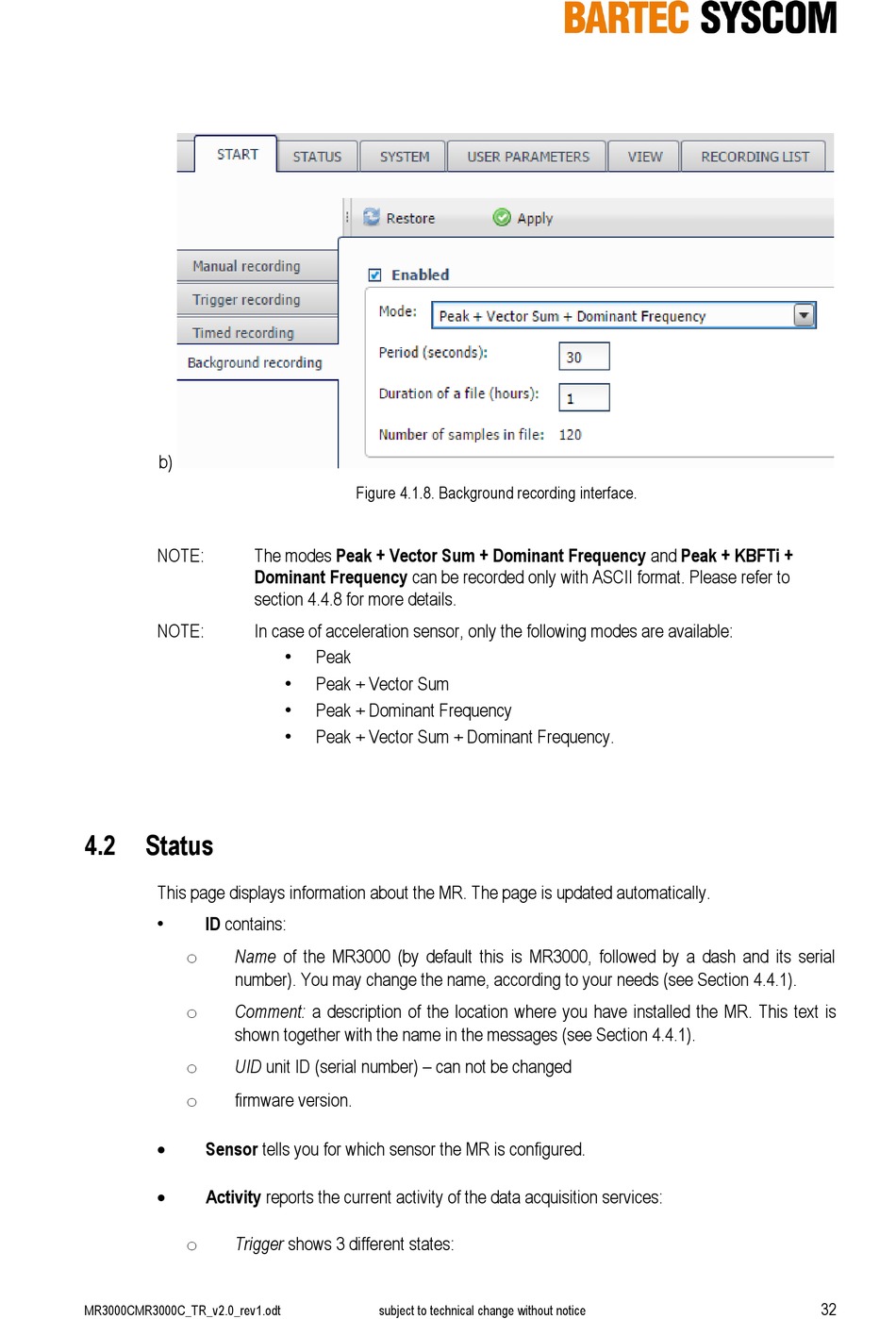

Figure 4.1.8. Background recording interface.
The modes Peak + Vector Sum + Dominant Frequency and Peak + KBFTi +
Dominant Frequency can be recorded only with ASCII format. Please refer to
section 4.4.8 for more details.
In case of acceleration sensor, only the following modes are available:
Peak
•
Peak + Vector Sum
•
Peak + Dominant Frequency
•
Peak + Vector Sum + Dominant Frequency.
•
subject to technical change without notice
32
