2.3

Display (LCD)

The LCD of the MR3000C shows the most important settings and parameters. In particular, there
are two types of screen, that are changing constantly. The first one, as can be seen in Figure 2.2.2,
indicates general parameters related to the MR3000C:
LINE 1. Typology of the instrument, together with the battery voltage
LINE 2. IP address of the instrument. When the 3G module is up and there is no LAN
LINE 3. Values set for the trigger on the three axes. When trigger is 'disabled' or its mode
LINE 4. Number of events recorded on the SD card.

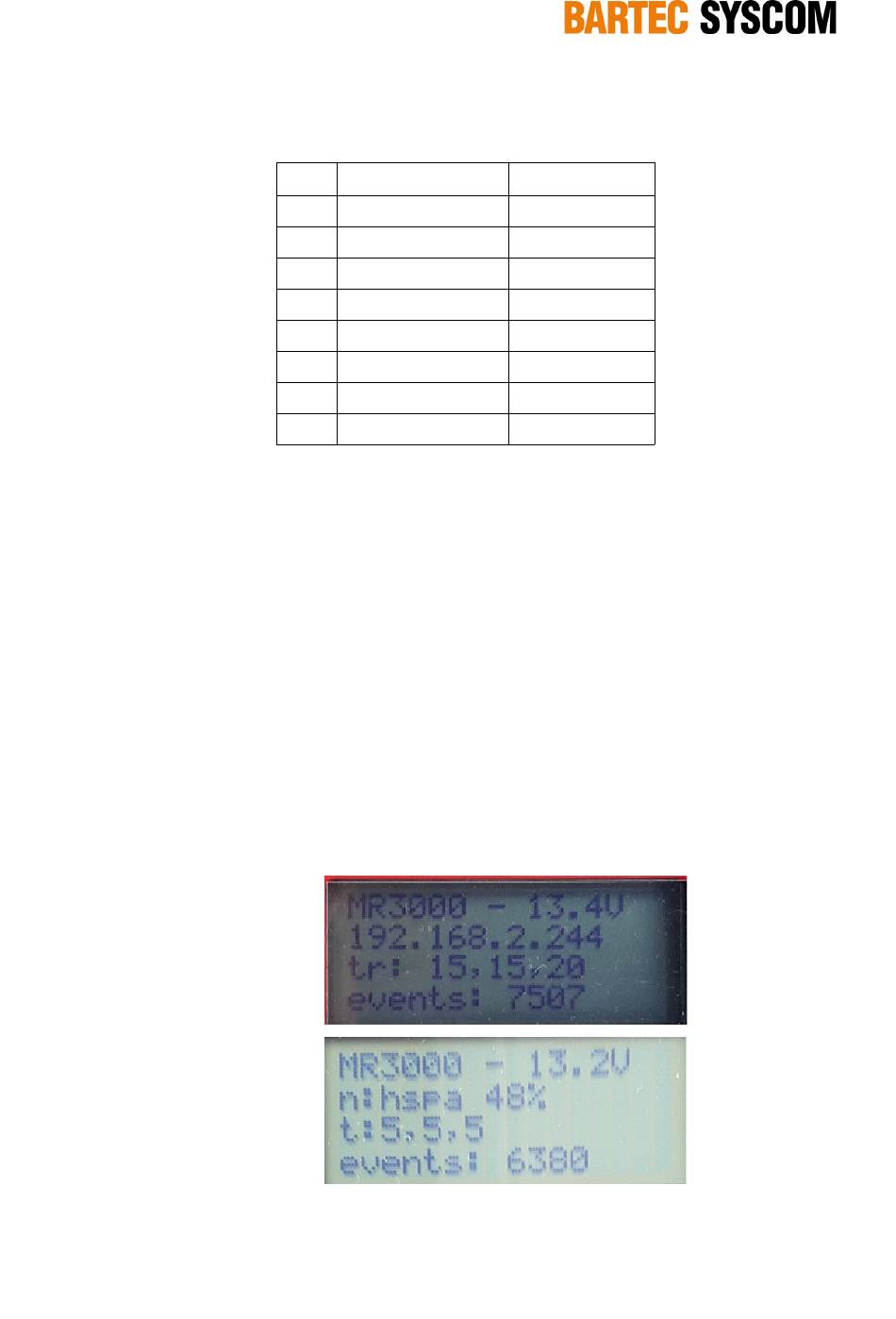

Figure 2.3.1. First screen of the MR3000C /TR with general information, in case of: a) LAN connection; b)
MR3000CMR3000C_TR_v2.0_rev1.odt
Table 2.2.1.Electric scheme of the relay cable 81000580.
Pin Signal name
1 Relay1 NC
2 Relay1 NO
3 Relay1 COM
4 Relay2 NC
5 Relay2 NO
6 Relay2 COM
7 TRIGGER
8 GND
connection then the display shows the characteristics of the mobile signal.
is 'STA/LTA', this is clearly shown on the LCD display
a)
b)
GPRS active and LAN not active.
subject to technical change without notice
Colour
Red
Blue
Pink
Grey
Yellow
Green
Brown
White
