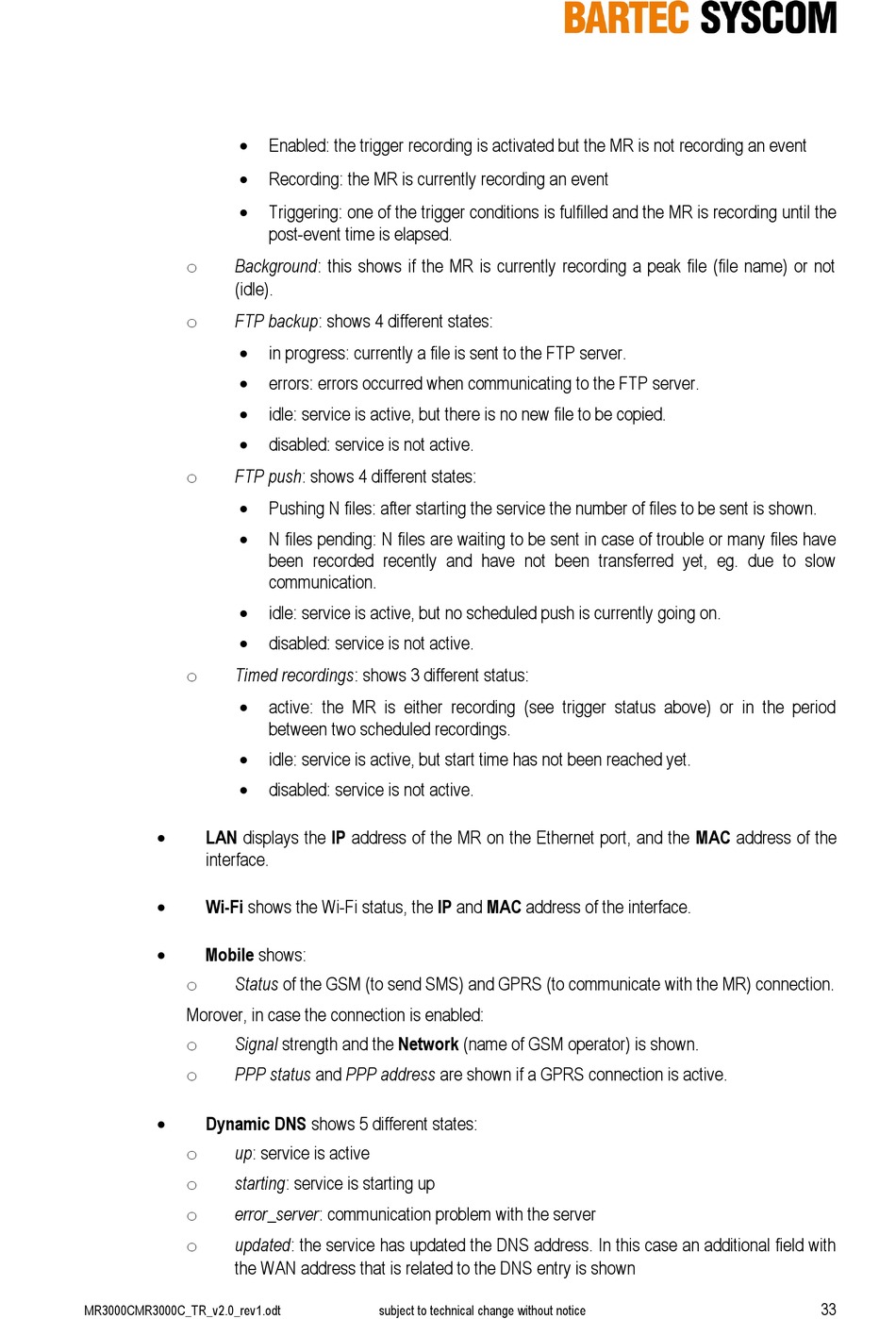

Syscom Video MR3000C User Manual page 33




Background: this shows if the MR is currently recording a peak file (file name) or not
o
(idle).
FTP backup: shows 4 different states:
o




FTP push: shows 4 different states:
o




Timed recordings: shows 3 different status:
o




LAN displays the IP address of the MR on the Ethernet port, and the MAC address of the
interface.

Wi-Fi shows the Wi-Fi status, the IP and MAC address of the interface.

Mobile shows:
Status of the GSM (to send SMS) and GPRS (to communicate with the MR) connection.
o
Morover, in case the connection is enabled:
Signal strength and the Network (name of GSM operator) is shown.
o
PPP status and PPP address are shown if a GPRS connection is active.
o

Dynamic DNS shows 5 different states:
up: service is active
o
starting: service is starting up
o
error_server: communication problem with the server
o
updated: the service has updated the DNS address. In this case an additional field with
o
the WAN address that is related to the DNS entry is shown
MR3000CMR3000C_TR_v2.0_rev1.odt
Enabled: the trigger recording is activated but the MR is not recording an event
Recording: the MR is currently recording an event
Triggering: one of the trigger conditions is fulfilled and the MR is recording until the
post-event time is elapsed.
in progress: currently a file is sent to the FTP server.
errors: errors occurred when communicating to the FTP server.
idle: service is active, but there is no new file to be copied.
disabled: service is not active.
Pushing N files: after starting the service the number of files to be sent is shown.
N files pending: N files are waiting to be sent in case of trouble or many files have
been recorded recently and have not been transferred yet, eg. due to slow
communication.
idle: service is active, but no scheduled push is currently going on.
disabled: service is not active.
active: the MR is either recording (see trigger status above) or in the period
between two scheduled recordings.
idle: service is active, but start time has not been reached yet.
disabled: service is not active.
