3.1.2

Wired connection via Router

Use the cable RJ45/LEMO provided with the MR (see Fig. 3.1.4, below). On the MR side, plug the
LEMO connector into the "LAN" socket. On the other side, you connect the RJ45 receptacle to one
of the LAN ports of your router. Your PC needs a connection to the same router (wired or Wi-Fi).
Make sure to disable any other LAN connections on your PC.
After connecting the MR to the router, the LCD of your MR3000 says Sending DHCP requests....
After a few seconds the MR3000 shows the IP address on the LCD, e.g. NET 192.168.1.27. This
IP address has been assigned by the router.
MR3000CMR3000C_TR_v2.0_rev1.odt

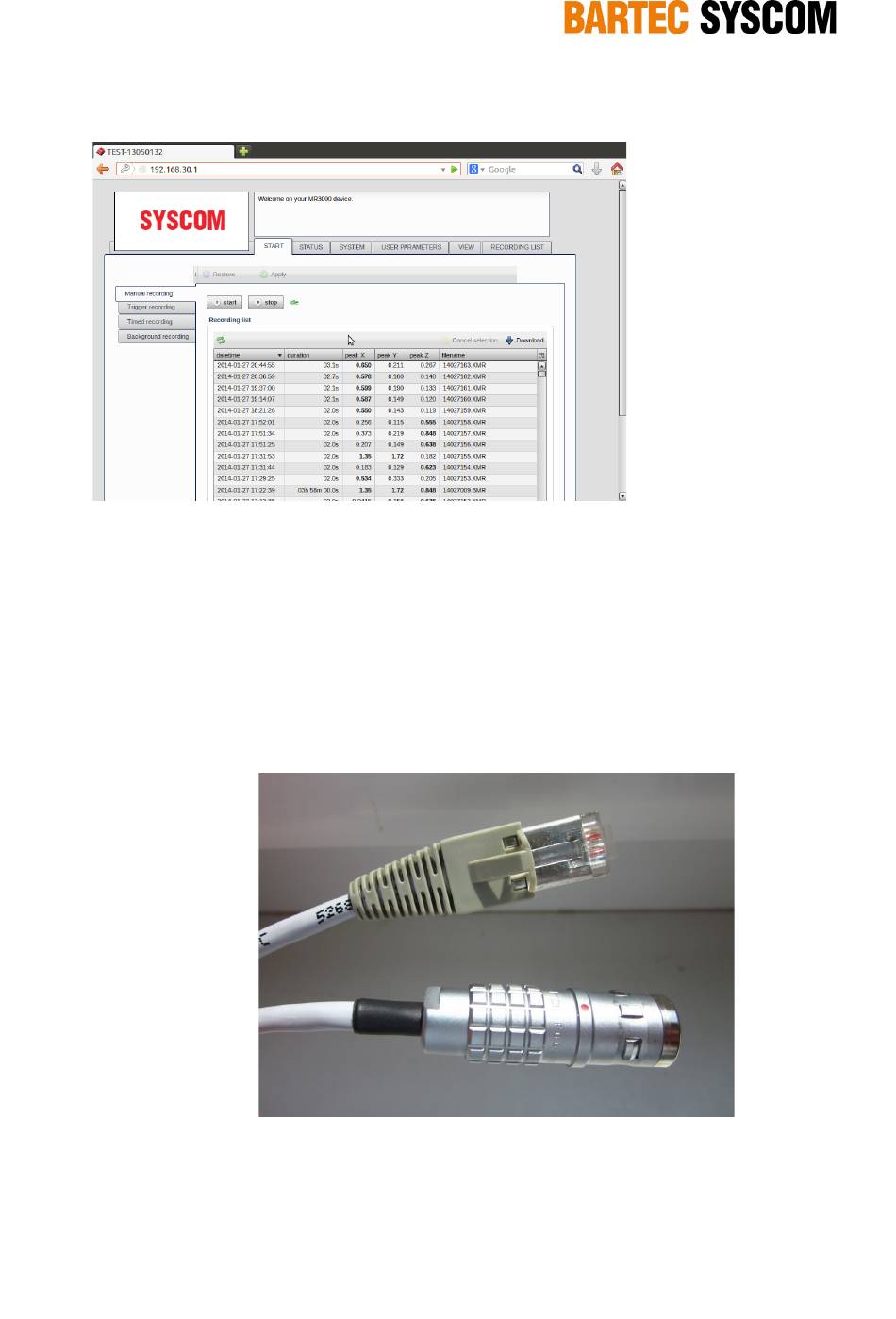

Figure 3.1.3. Procedure to enter in the Web User Interface.
Figure 3.1.4. RJ45 connector on top, LEMO connector below.
subject to technical change without notice
..you will see the main page
of the Start screen
