down: service is not active.
o
OpenVPN shows the Status and the IP address of the Virtual Private Network.
Clock displays the current date and time on the MR. Last update shows when the clock
has been synchronized the last time.
SD Card shows the total size and the free size on the SD Card, together with the lifetime,
calculated on the remaining erase cycles (this functionality is available only with the Swissbit
SD cards). It also shows the number of events on the MR.
Indicators shows the current temperature inside the MR, the input voltage and the uptime
(time since the last boot of the system).
If any error is present in the system, it is highlighted in red. If a warning is present, it will be
highlighted in yellow.
MR3000CMR3000C_TR_v2.0_rev1.odt

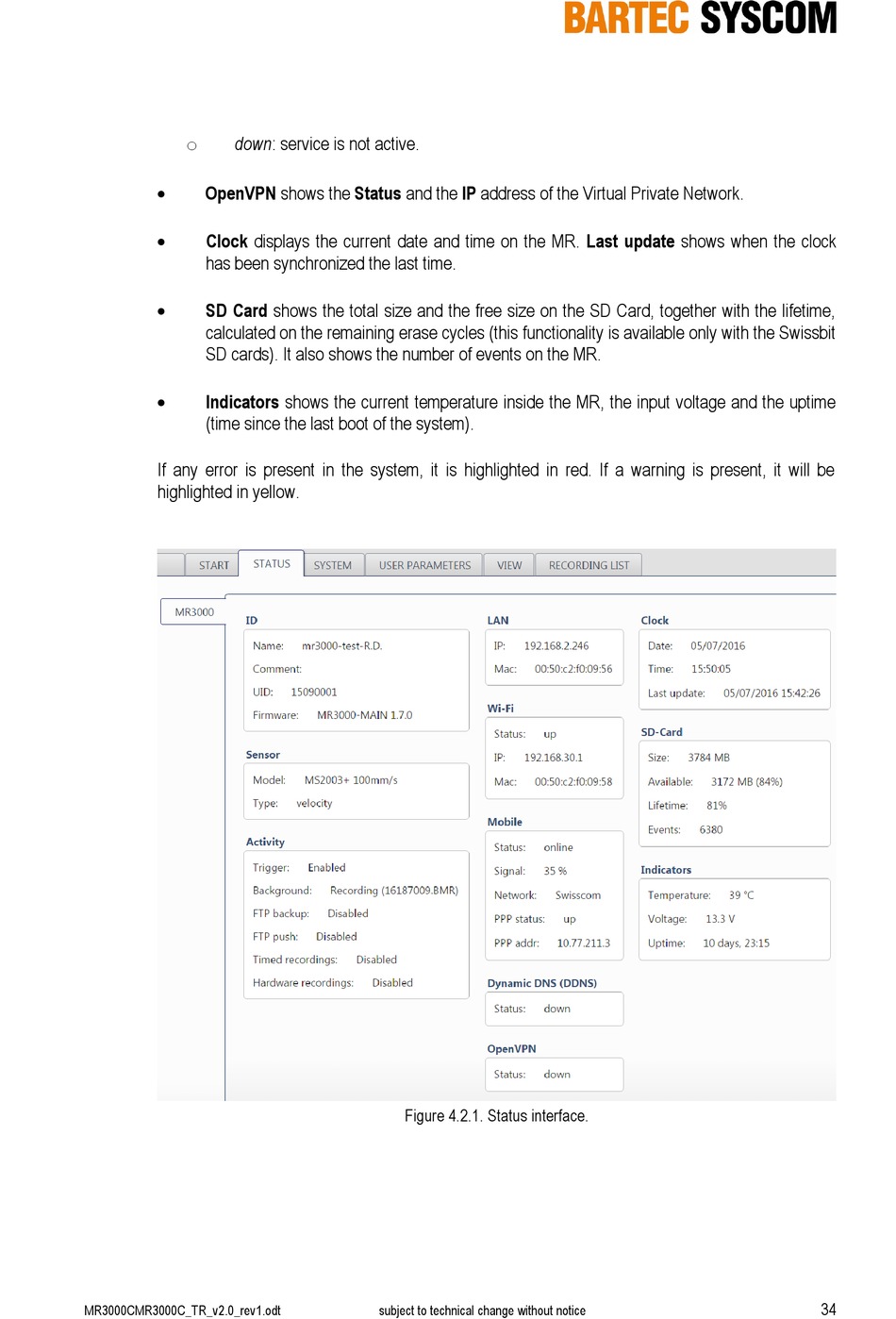

Figure 4.2.1. Status interface.
subject to technical change without notice
34
