Sensors; Battery Pack (Optional) - Syscom Video MR3000C User Manual

2.5.5

Sensors

The MR3000C and the MR3000TR can be equipped with:
an internal triaxial velocity sensor (as presented in Figure 2.5.5)
•
an external triaxial velocity sensor
•
three external uniaxial velocity sensors
•
Moreover, the MR3000C can also equipped with
an internal triaxial accelerometer,
•
an external triaxial accelerometer
•
Concerning the orientation, the MR3000 and the external sensors can be ordered for horizontal
mounting (typically on the ground) or for vertical mounting (on the walls).

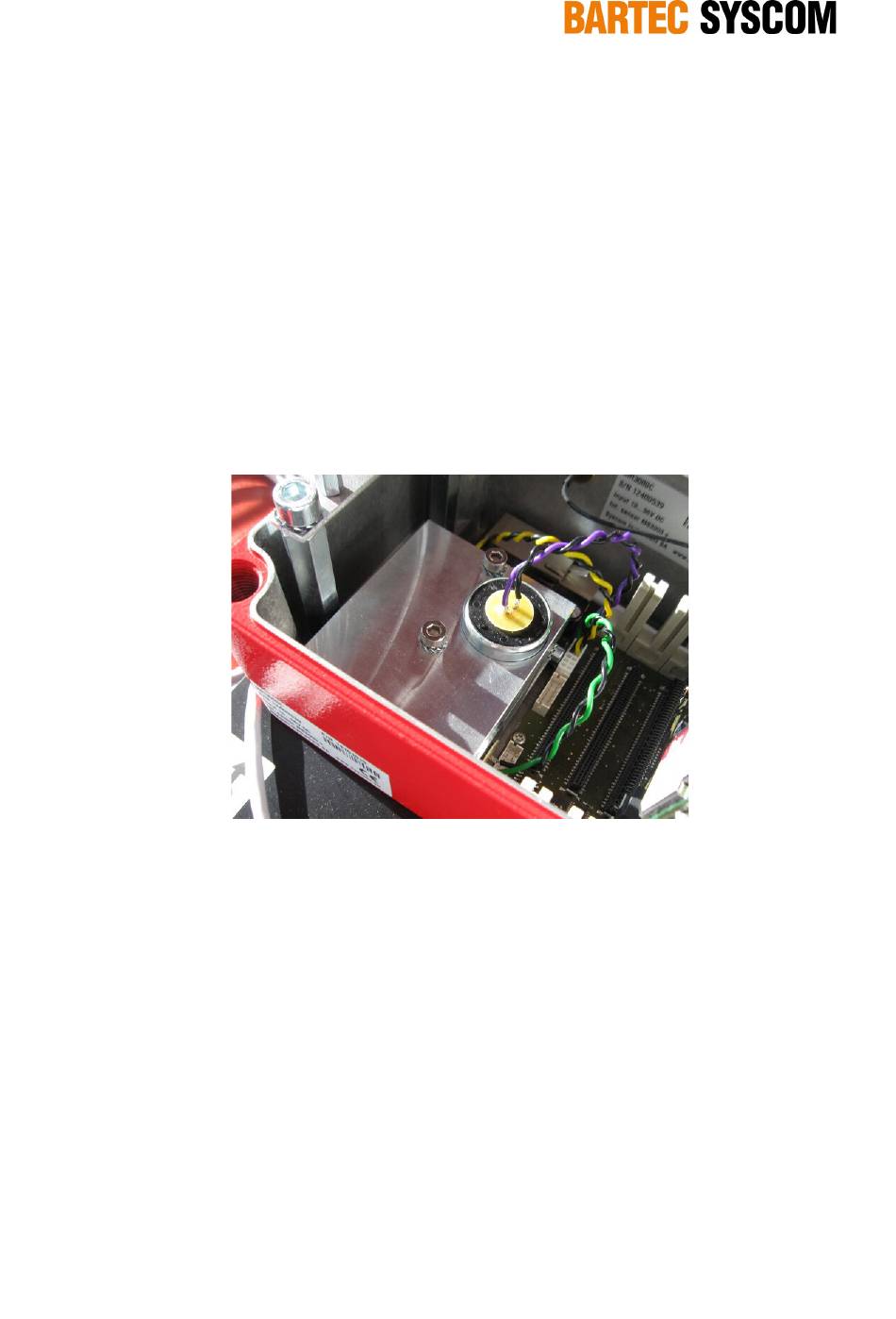

Figure 2.5.5 The internal triaxial velocity sensor is located at the rear end of the housing.
2.6

Battery pack (optional)

An external battery can be used together with the MR3000C/TR. It is a lead-acid gel cell 5 Ah with
integrated battery charger: AC 90-264 V / 47-63 Hz.
MR3000CMR3000C_TR_v2.0_rev1.odt subject to technical change without notice
17
