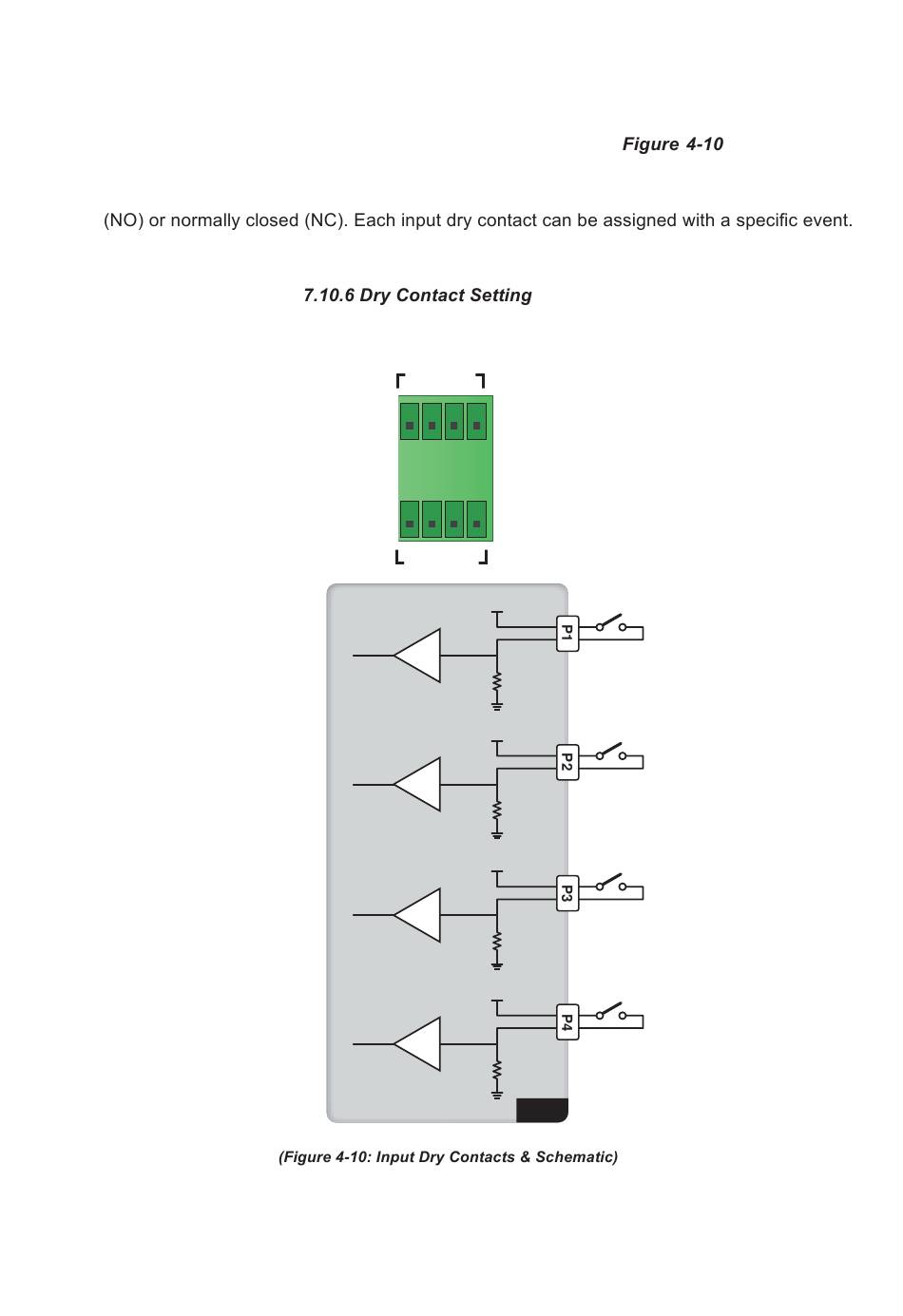

4.1.6 Input Dry Contacts
There are four sets of programmable input dry contacts (see
contacts allow the UPS to receive external signals from peripheral devices and let the UPS
response accordingly. Please use the touch panel to set each dry contact as normally open
There are six events can be assigned according to your applications. For information about
the six events, please refer to the table below. To learn how to set up, please contact your
local dealer and refer to
Modulon DPH Series
I/P DRY
CONTACT
P1 P2
P3 P4
5V
Dry-1
Buffer
5V
Dry-2
Buffer
5V
Dry-3
Buffer
5V
Dry-4
Buffer
UPS
4-10
.
2mA. Max
2mA. Max
2mA. Max
2mA. Max
). The input dry
