2.6 Internal View
After you open the UPS's front door, you will see the internal mechanisms including
communication interfaces, six power module slots (among which, only the bottom three
slots have covers), an STS module and four breakers (Input/ Bypass/ Manual Bypass/
Output). Please refer to
Modulon DPH Series
WARNING:
Only authorized Delta engineers or service personnel can perform installation,
wiring, panel & cover removal, maintenance and operation. If you want to execute
any action mentioned above by yourself, the action must be under the supervision
of authorized Delta engineers or service personnel.

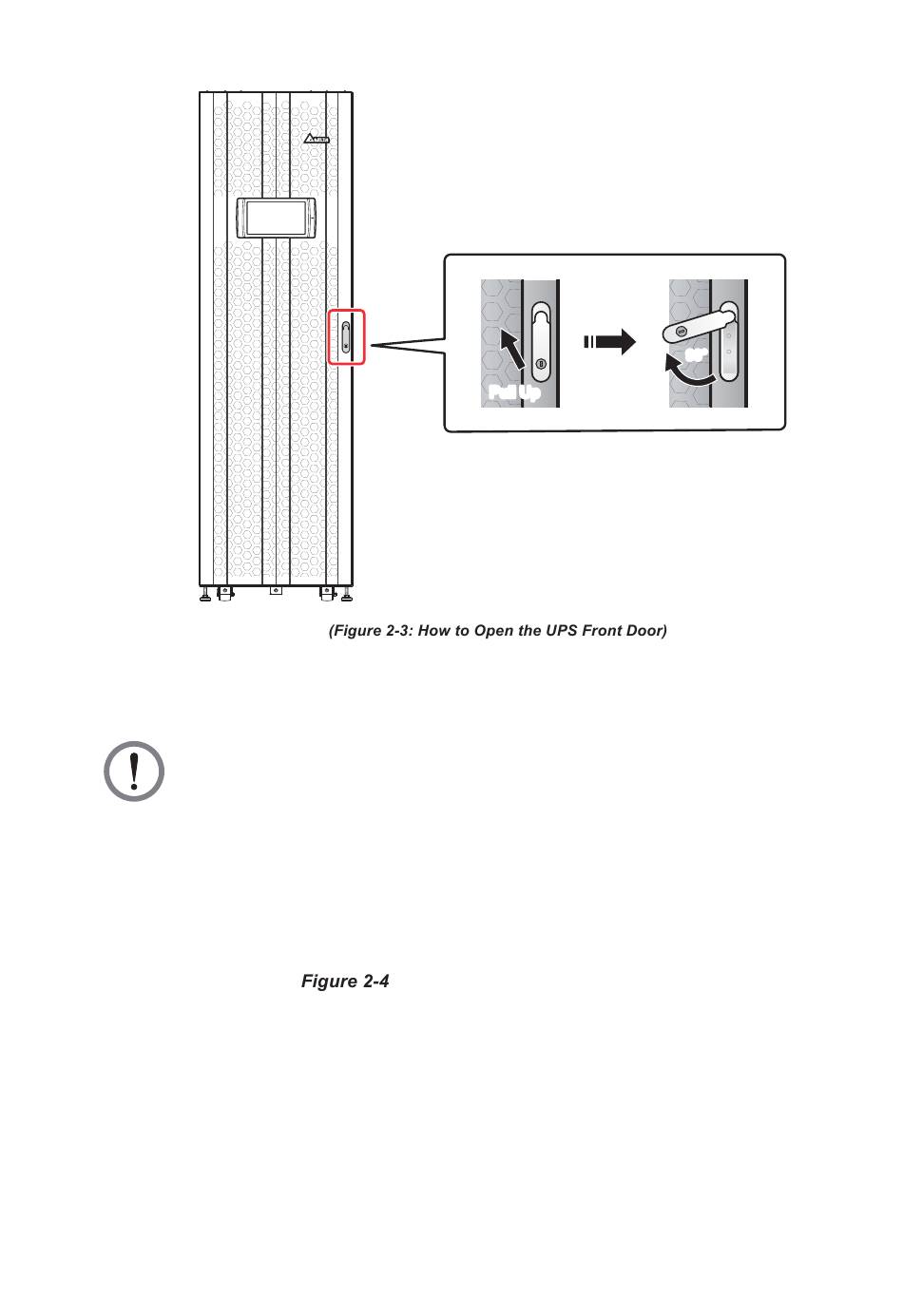

Pull Up
.
2-8
90° 90°
