3.1.8 Energy Recycle Mode_ Single Input_ Single Unit
Energy Recycle mode is only applicable to UPS self-test only. Without connection to any
critical loads, the UPS can execute current test under full load condition. Before you activate
Energy Recycle mode, please make sure that the Manual Bypass Breaker (Q3), Output
Breaker (Q4) and each external battery cabinet's battery breaker (Q5) are in the OFF
status.
To activate Energy Recycle mode, please refer to

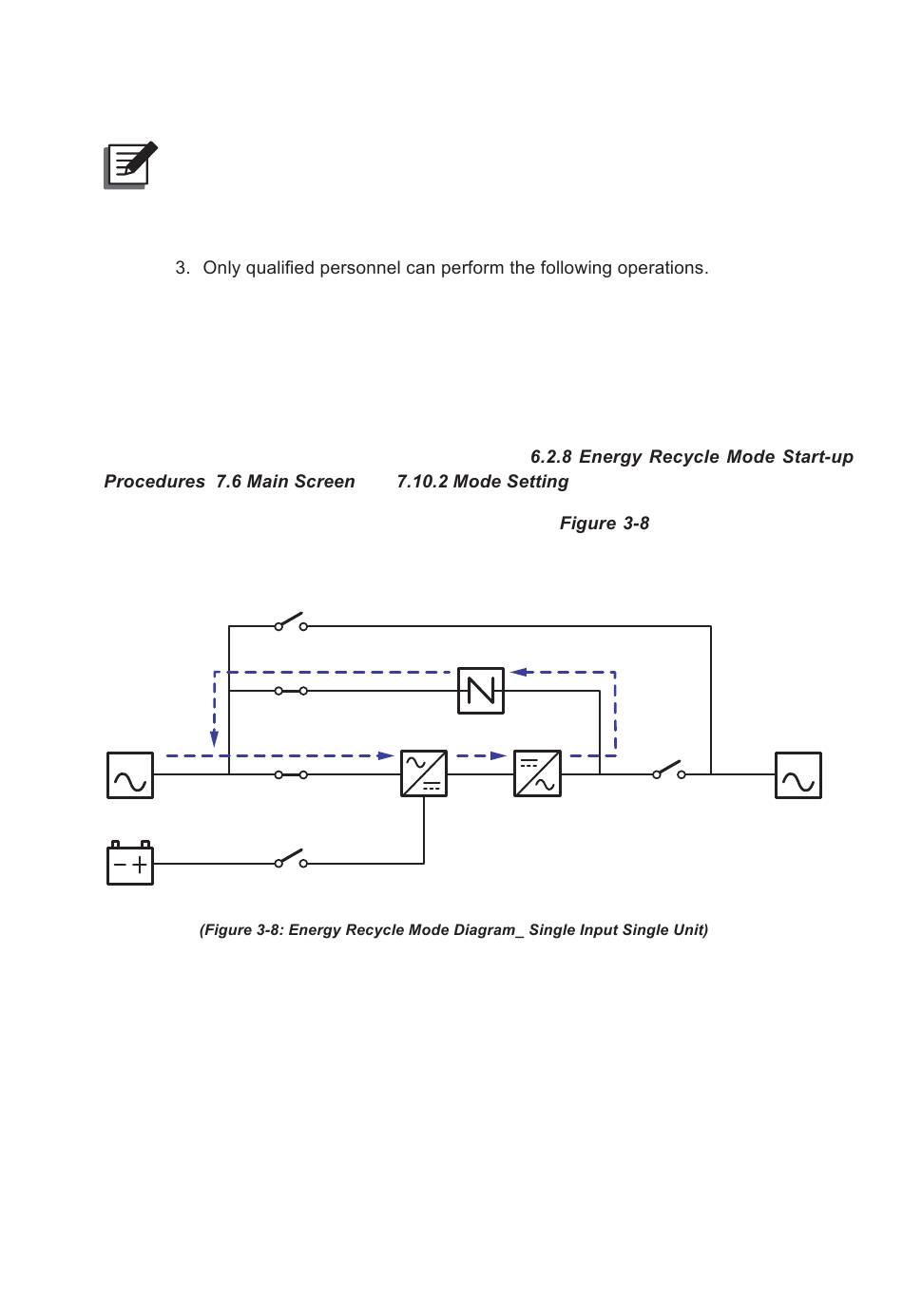

For the diagram of Energy Recycle mode, please see
mode, the UPS's tri-color LED illuminates yellow and the text 'Energy Recycle' appears in
the upper right corner of the screen.
MAIN
Batteries
Modulon DPH Series
NOTE:
1. Energy Recycle mode is only applicable to single input and single unit application.
2. Do not let the UPS run in Energy Recycle mode when batteries are supplying
power to the loads.
,
