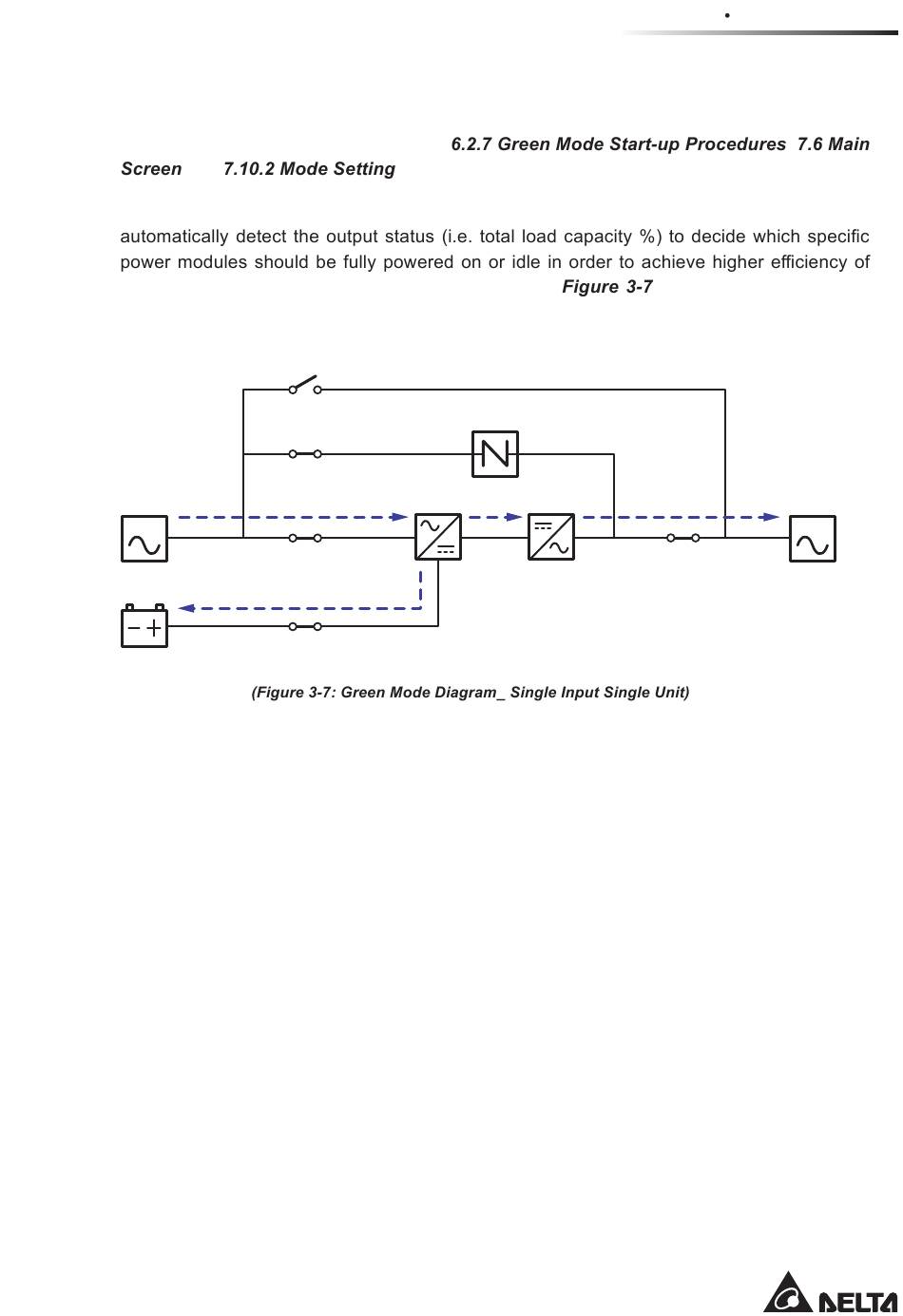

3.1.7 Green Mode_ Single Input_ Single Unit
To activate Green mode, please refer to
and
Green mode is the same as On-Line mode, but the difference is that the system will
the UPS. For the Green mode diagram, please see
UPS's tri-color LED illuminates green and the text 'Green' appears in the upper right corner
of the screen.
MAIN
Batteries
.
Q3
Static Switch
Q2
Rectifier
Q1
Q5
3-7
. During Green mode, the
Inverter
Q4
3 Operation Modes
,
LOAD
