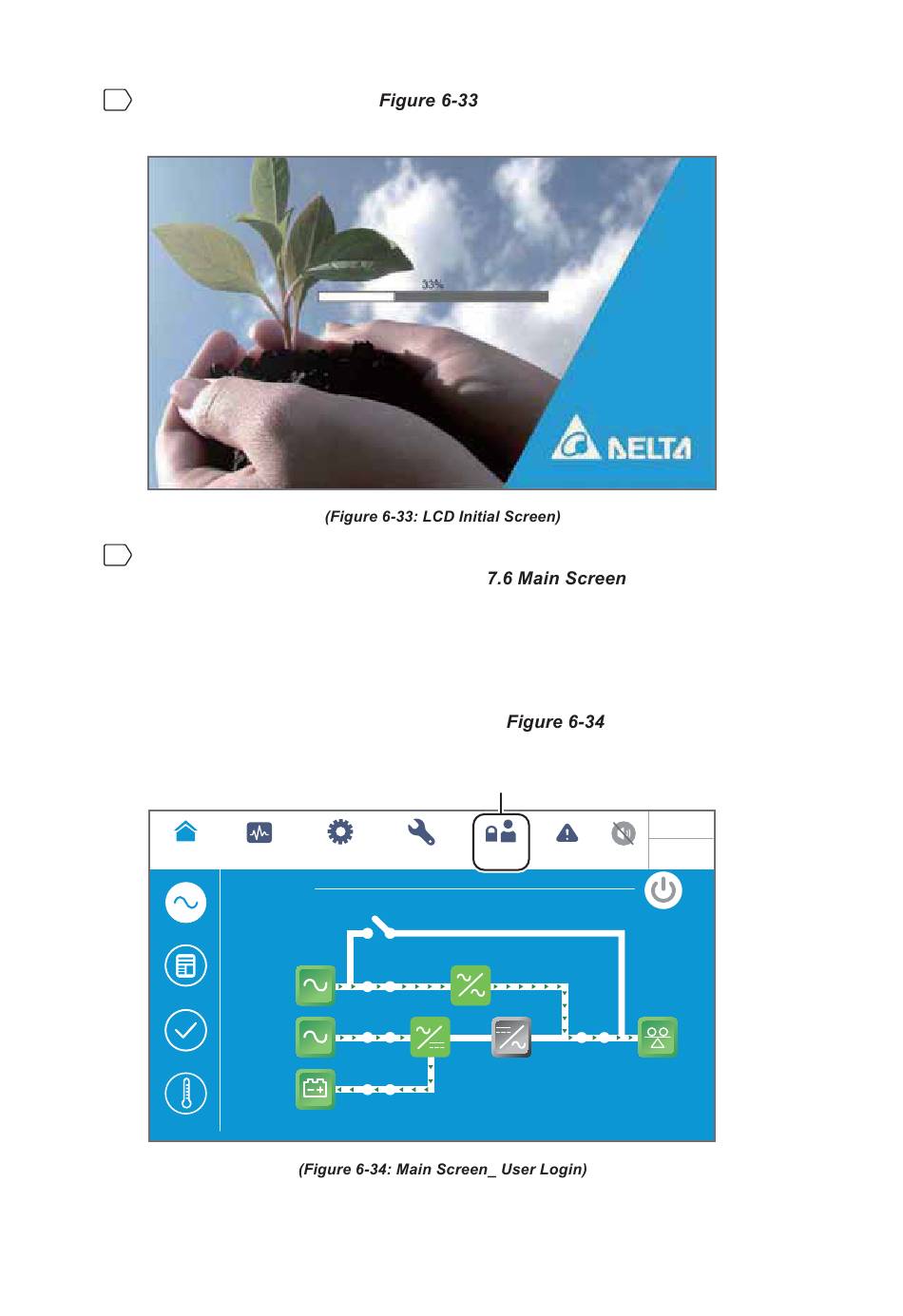

The LCD initial screen (see
Breaker (Q1) and Bypass Breaker (Q2) are turned on.
6
After 20 seconds of LCD initialization, the LCD will enter the Main Screen. For the
Main Screen information, please refer to
Now, each power module keeps running and its LED indicator remains green. After
each power module finishes establishing DC BUS voltage, the charger will start to
charge the batteries.
If the bypass AC source is within the normal range, the UPS will transfer to run in
Bypass mode, the LCD screen will show as
will illuminate yellow.
UPS-1.1
Power Flow
Power Flow
Summary
System Status
Modulon DPH Series
MEASUREMENT SETUP
POWER FLOW
Maintenance
Bypass
Bypass
Mains
90 %
5 mins
EMS
) will appear within 40 seconds after the Input
User Login
MAINTENANCE LOG IN EVENT LOG
User
6-26
.
and the tri-color LED indicator
10:15
May 25,2018
Bypass
Load
30 %
