Express-KL2

4. Connector Pinouts on Module

This chapter describes connectors and pinouts, LEDs and switches that are used on the module but are not
included in the PICMG standard specification
4.1.

Connector, Switch and LED Locations

CD
BIOS
Defaults
Reset
AB
Button
FAN
4-pin
40-pin
Fan
Debug connector

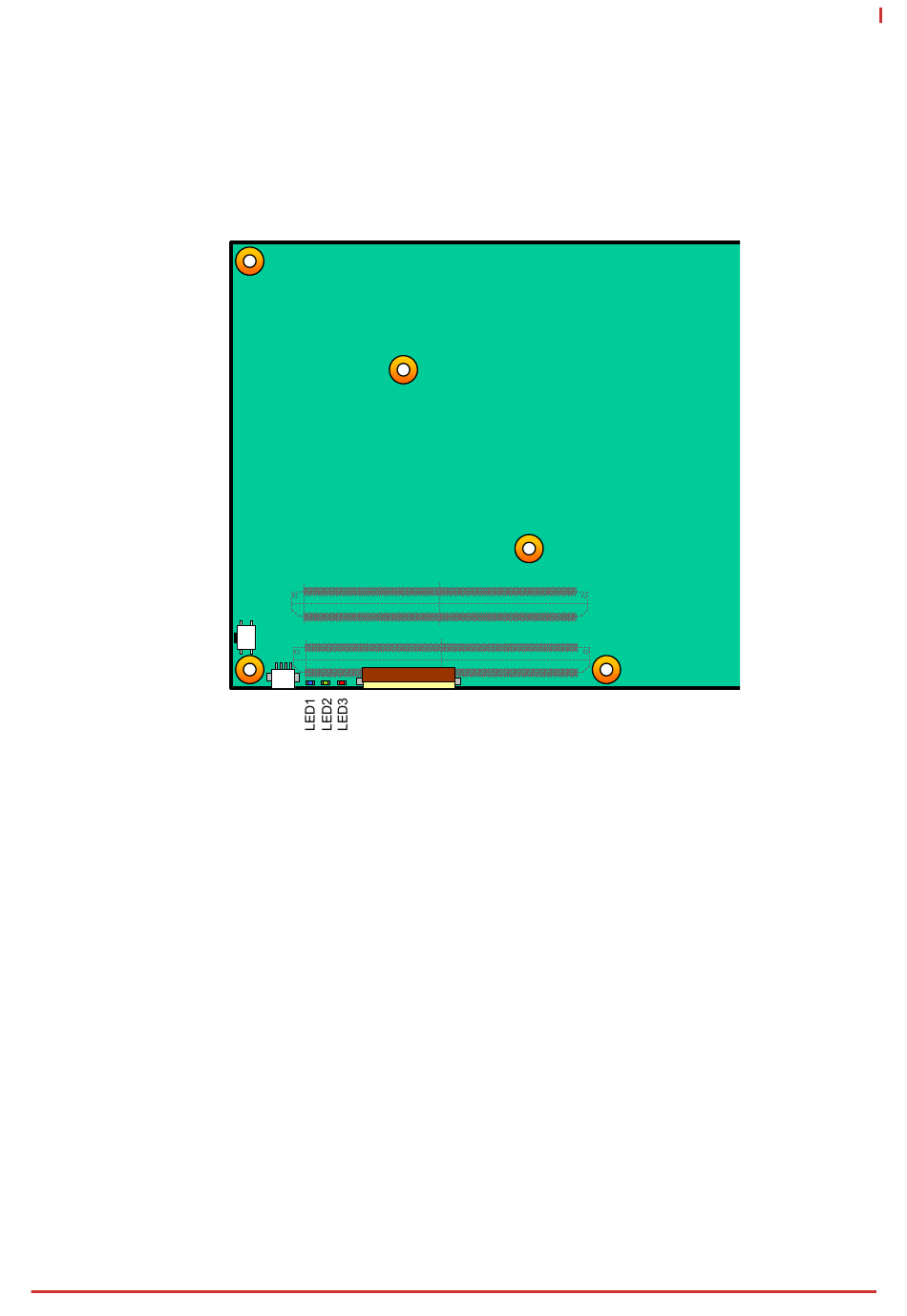

Figure 3: Express-KL2 Connector, Switch and LED Locations

Connector Pinouts on Module
27
