2.17. Mechanical Drawing

All are dimensions shown in millimeters.
Tolerances should be ± 0.25mm (±0.010"), unless otherwise noted. The tolerances of the module
connector locating peg holes (dimensions [16.50, 6.00] and [16.50, 18.00]) should be ±0.10mm (±0.004").

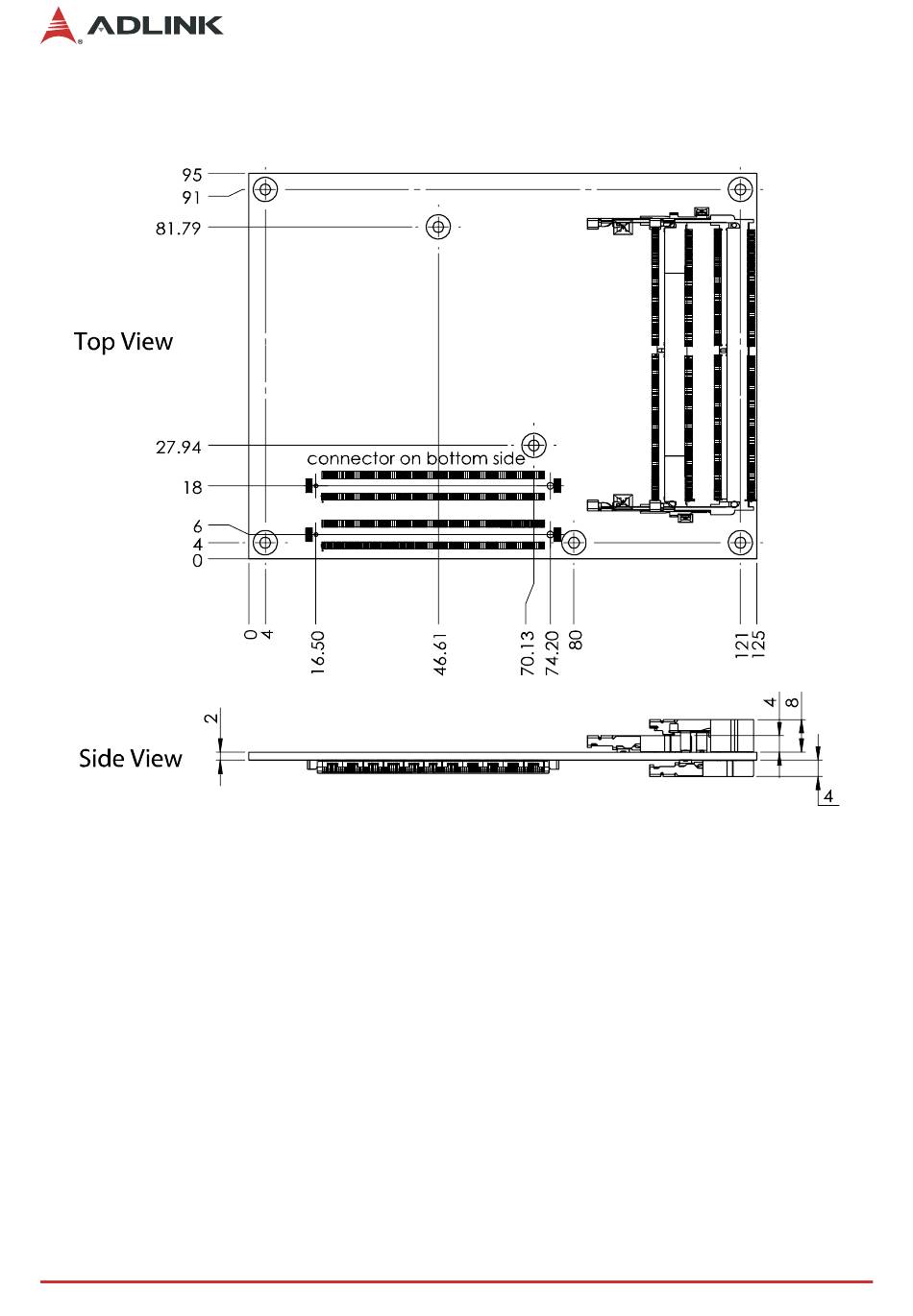

Figure 2: Express-KL2 Mechanical Drawing

8 Specifications
