Express-KL2

4.7.

PCIe x16-to-two-x8 Adapter Card

The Express-KL2 can be used with the PCIe x16-to-two-x8 Adapter Card on the Express-BASE Reference Carrier

to support bifurbication of the CPU's PEG interface (PCIe x16). The card reroutes the PCIe x16 to two x8 and

allows testing of two independent PCIe add-on cards with x8/x4/x2/x1 width. To use the card, set SW1 to "2 x8 PCI

Express" as above.

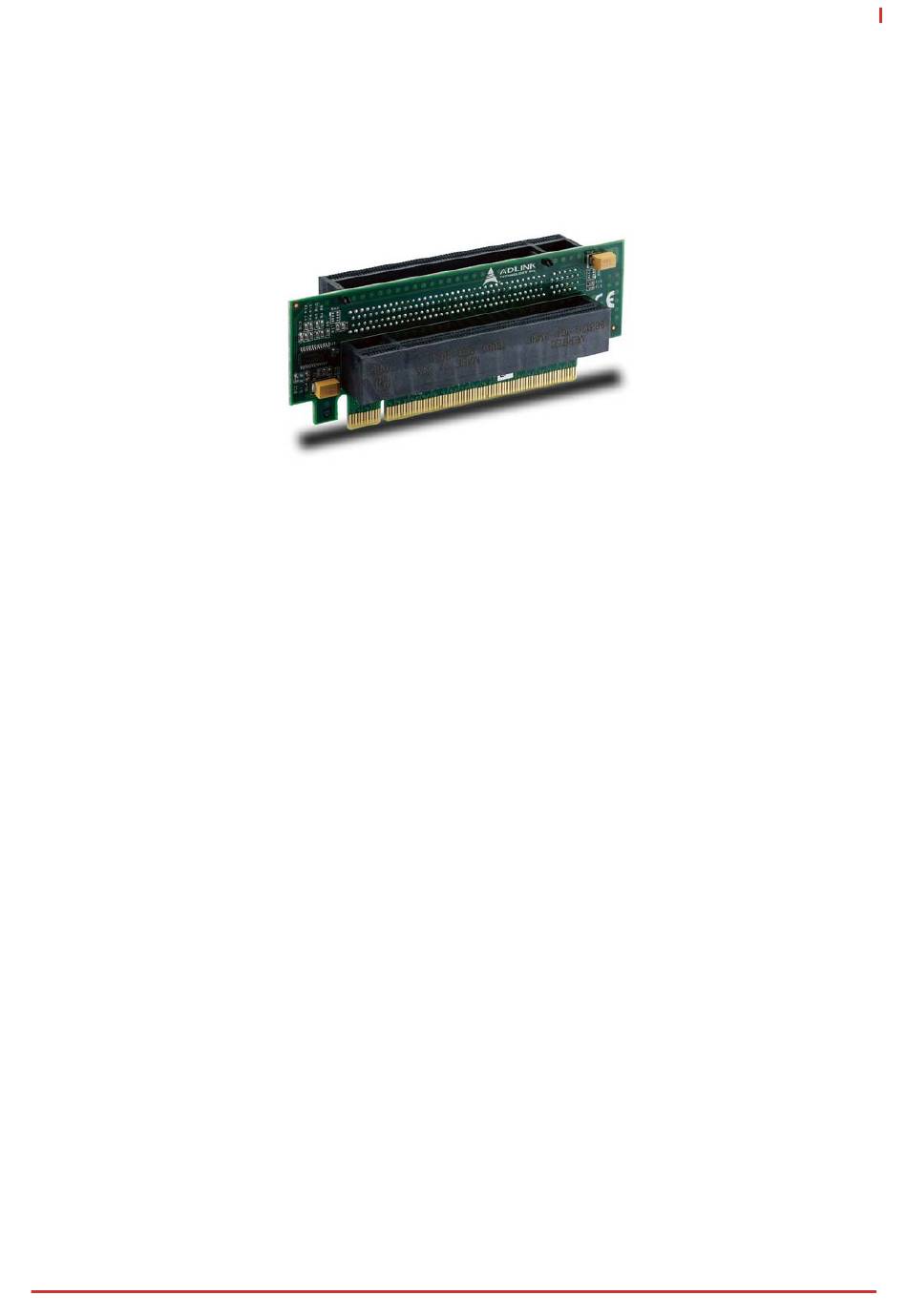

PCIex16-to-two-x8 Adapter Card

(Model: P16TO28, Part No.: 91-79301-0010)

Connector Pinouts on Module
