11 Connection description

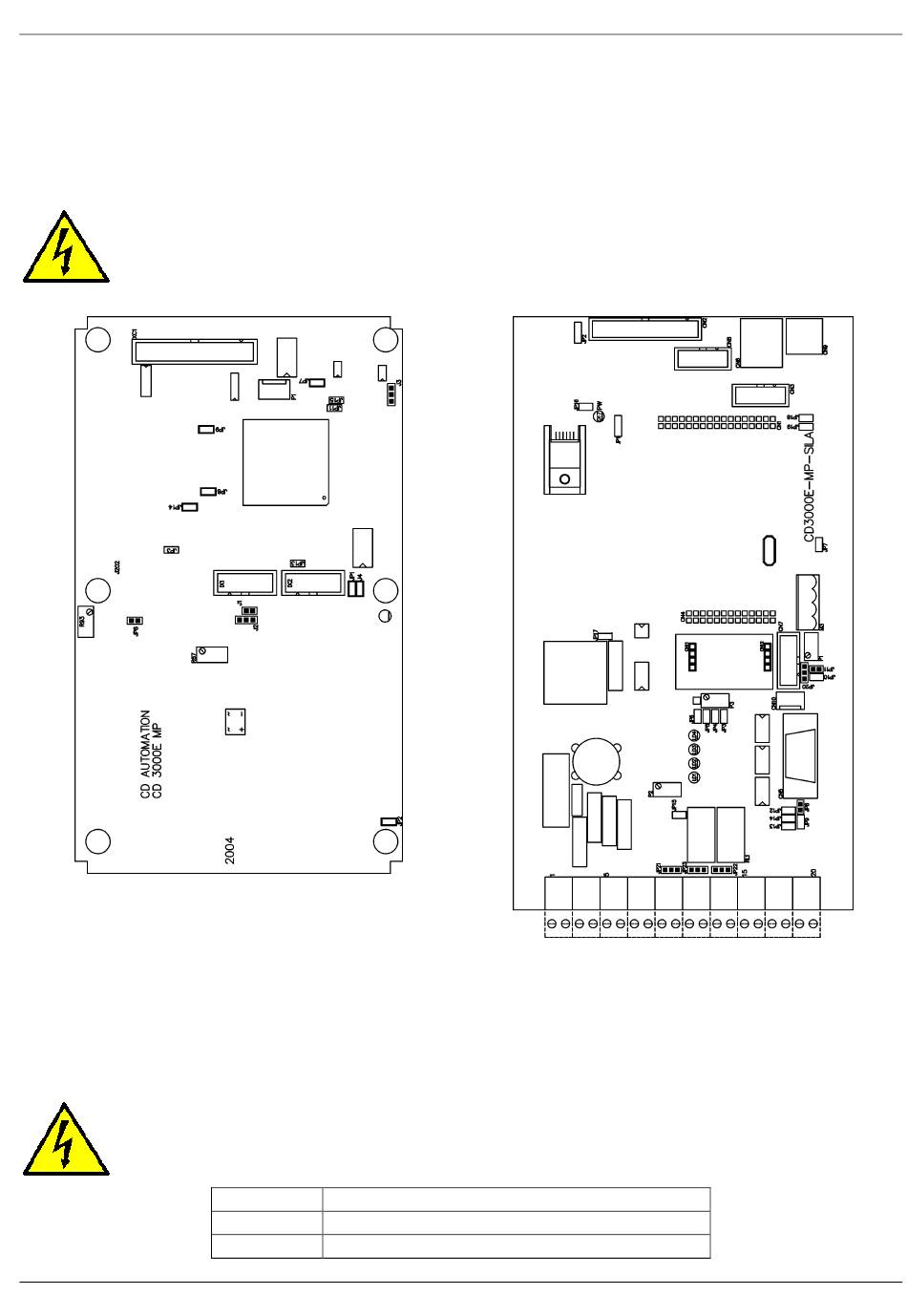

11.1 Access to the Electronic boards

To have access to the electronic boards the user must removing the unit's cover
(see par.6.3)
Warning: Before operate, be sure that power and control cables are isolated from voltage
sources

11.2 Supply the Electronic Board

The REVO E thyristor unit, to work, requires a voltage supply for the electronic boards. This voltage is
used also to supply the internal fans.
The consumption is 20VA max, at this you must add the consumption of the internal fans (see par. 8.2).
The voltage supply for the electronic boards is configured in line with customer requirements that are
defined in the Order Code. The Order Code is written on the identification label.
Warning: Before connecting or disconnecting the unit check that power and control cables
are isolated from voltage sources.
REVO E-3PH from 25A to 500A
Size S09
Terminal
1
Voltage Supply for Electronic Boards
2
Voltage Supply for Electronic Boards
Size S11/S13/S14
Description
37
