REVEX
3PH from 120A to 210A

10.6 Software General information

Here it is described the Confi gurator Software and how use it.

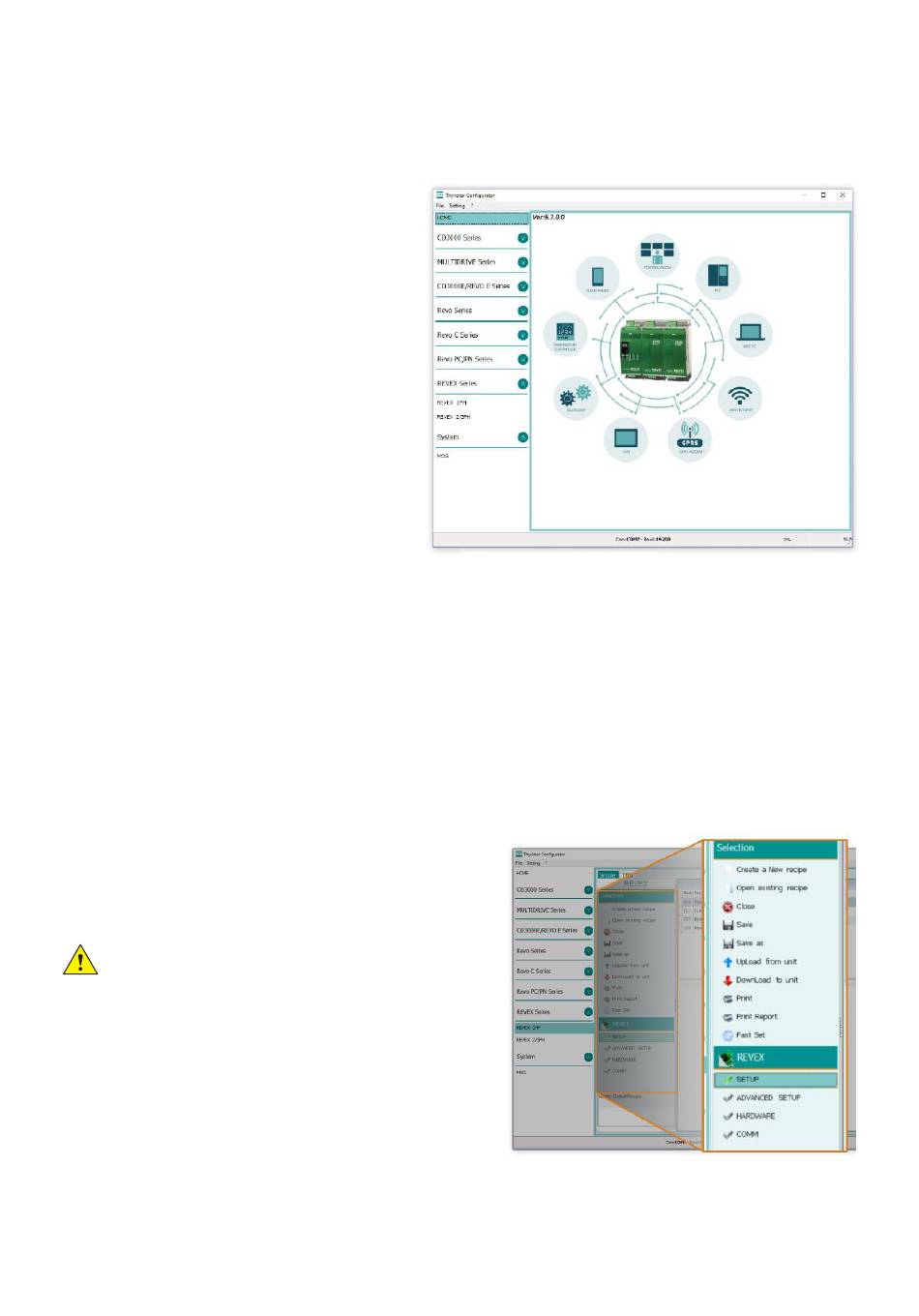

10.6.1 Program Window
Main Menu
Access these menus.
File menu
Exit: close the program
Setting menu
Language: open Language Settings dialog
box
Serial Port: open Serial Port dialog box
Option: open General Option dialog box
? (Help) menu
Message Log: open a serial
communication message view
About: displays the About dialog with the
program name and version and contact
information
Instruments selector
Select the right instrument to use:
HOME: the default view
REVEX 1PH: open the Simple and Test views for a single-phase power controller
2/3PH: access the Simple and Test views for a three-phase power controller
REVEX
MSG: opens a serial communication message view
Status Bar
Indicates information such as time and date, communications port and baud rate.
10.6.2 Simple Section
This section is used to create, save, upload and download
recipes of parameters settings. Can be used also to see
the settings in a controller.
Simple page is the default page when select the model
using the Model Button, but if not selected is possible to
access it by clicking the Simple tab below the main menu.
NOTE! This section is not "OnLine" so the
parameter values are not updated continuously.
They are read only when you upload them from the
power controller.
To manage a recipe click on:
Create a New recipe: create a recipe fi le with the
standard default settings
Open existing recipe: open an existing recipe fi le
Upload from unit: create a new recipe with the value
uploaded from a connected power controller
Close: close the current recipe
