7.2 Power Terminals

Warning: Before connecting or disconnecting the unit check that power and control cables
are isolated from voltage sources.
Terminal
L1 Line Input Phase 1
L2 Line Input Phase 2
L3 Line Input Phase 3
T1 Load Output Phase 1
T2 Load Output Phase 2
T3 Load Output Phase 3

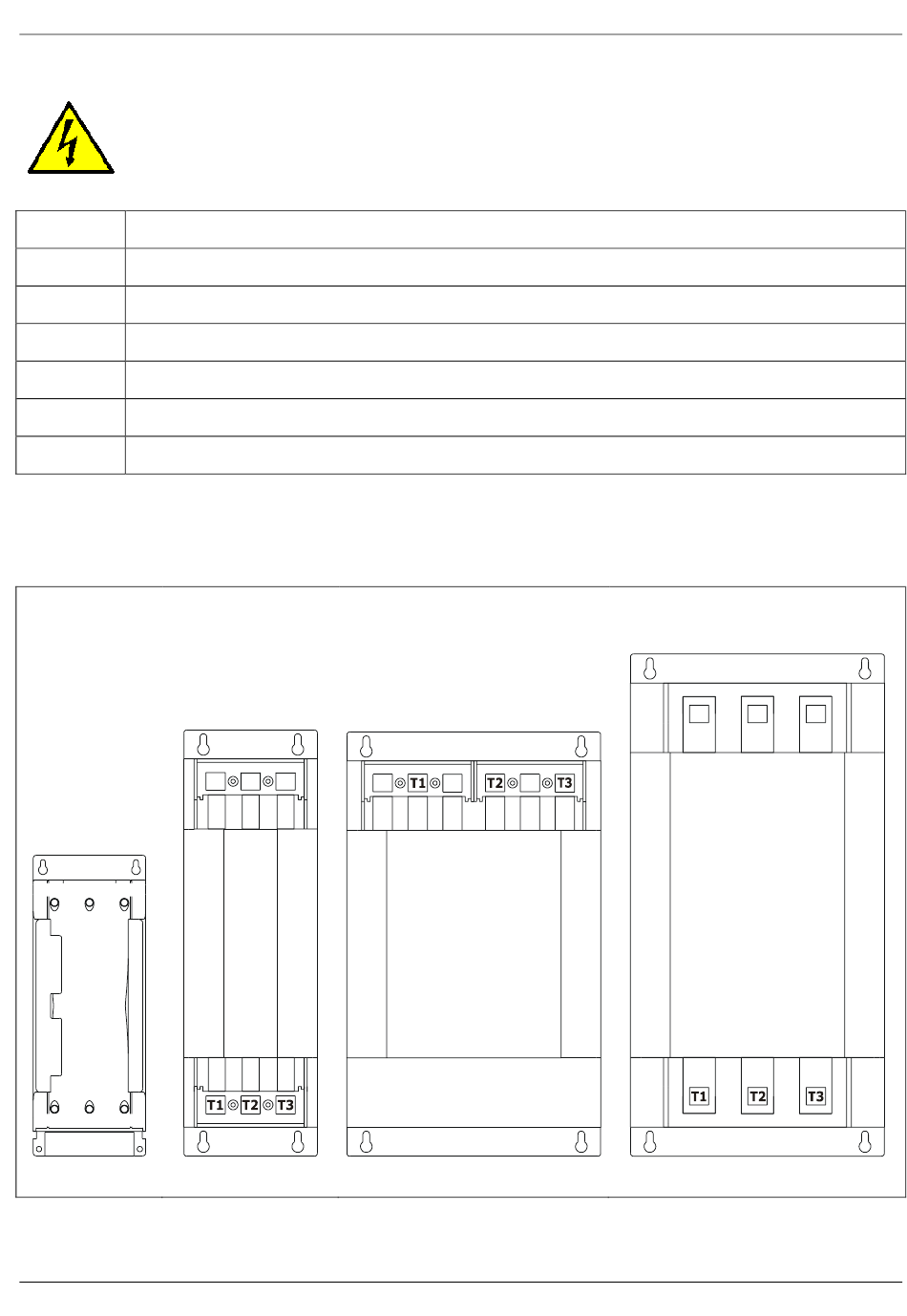

Size S09
L1 L2 L3
T1 T2 T3
REVO E-3PH from 25A to 500A
Size S11
L1 L2 L3
L1
Description
Size S13
L2 L3
19
User's Manual
Size S14
L1 L2 L3
