Hardware Layout And Configuration; Figure 2. Stm32L476G-Eval Hardware Block Diagram - ST STM32L476G-EVAL User Manual

UM1855
2

Hardware layout and configuration

The STM32L476G-EVAL evaluation board is designed around STM32L476ZGT6 target
microcontroller in LQFP 144-pin package.
connections with peripheral components.
on the evaluation board.
All manuals and user guides at all-guides.com
Figure 2
Figure 3

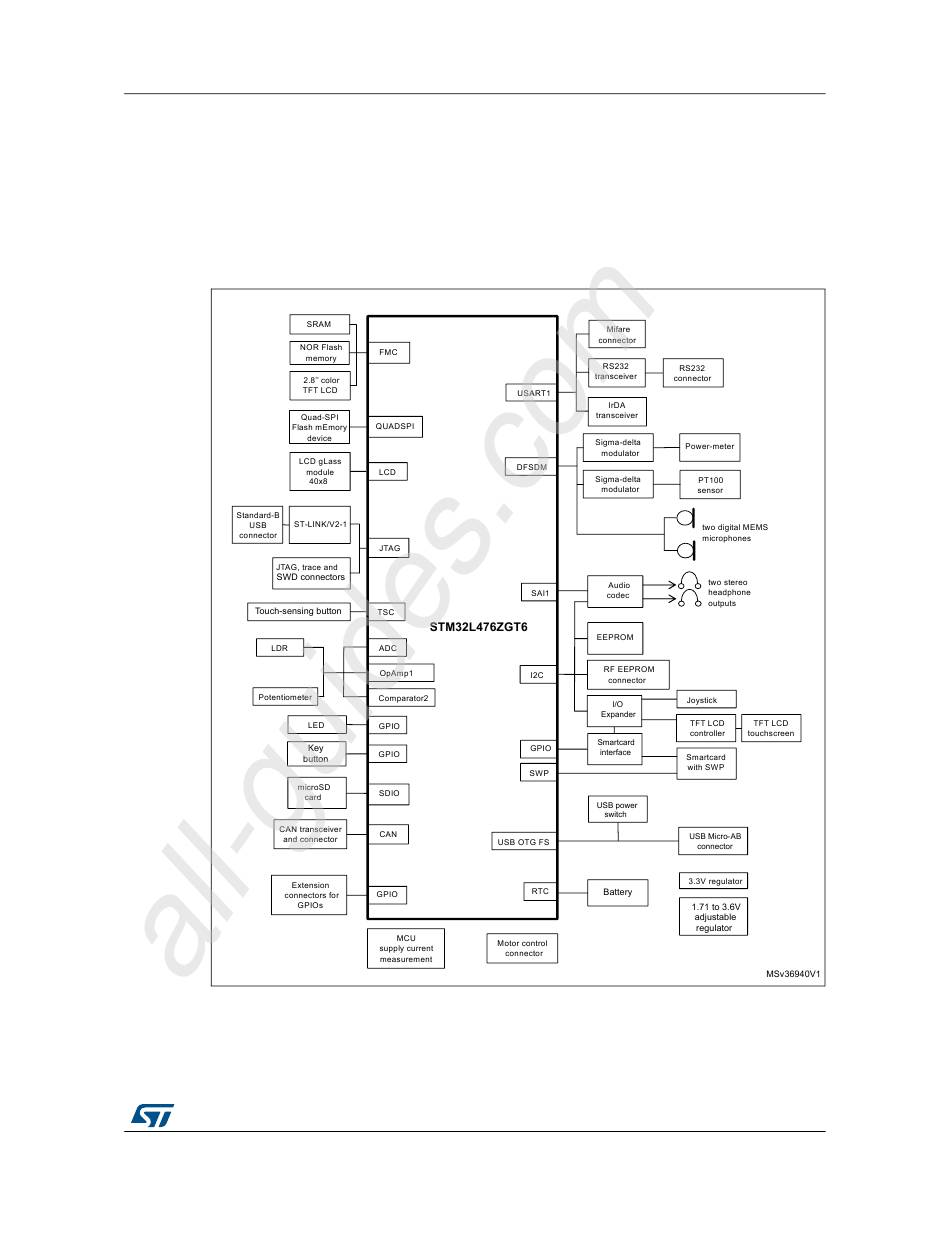

Figure 2. STM32L476G-EVAL hardware block diagram

DocID027351 Rev 3
Hardware layout and configuration
illustrates STM32L476ZGT6
shows the location of main components
