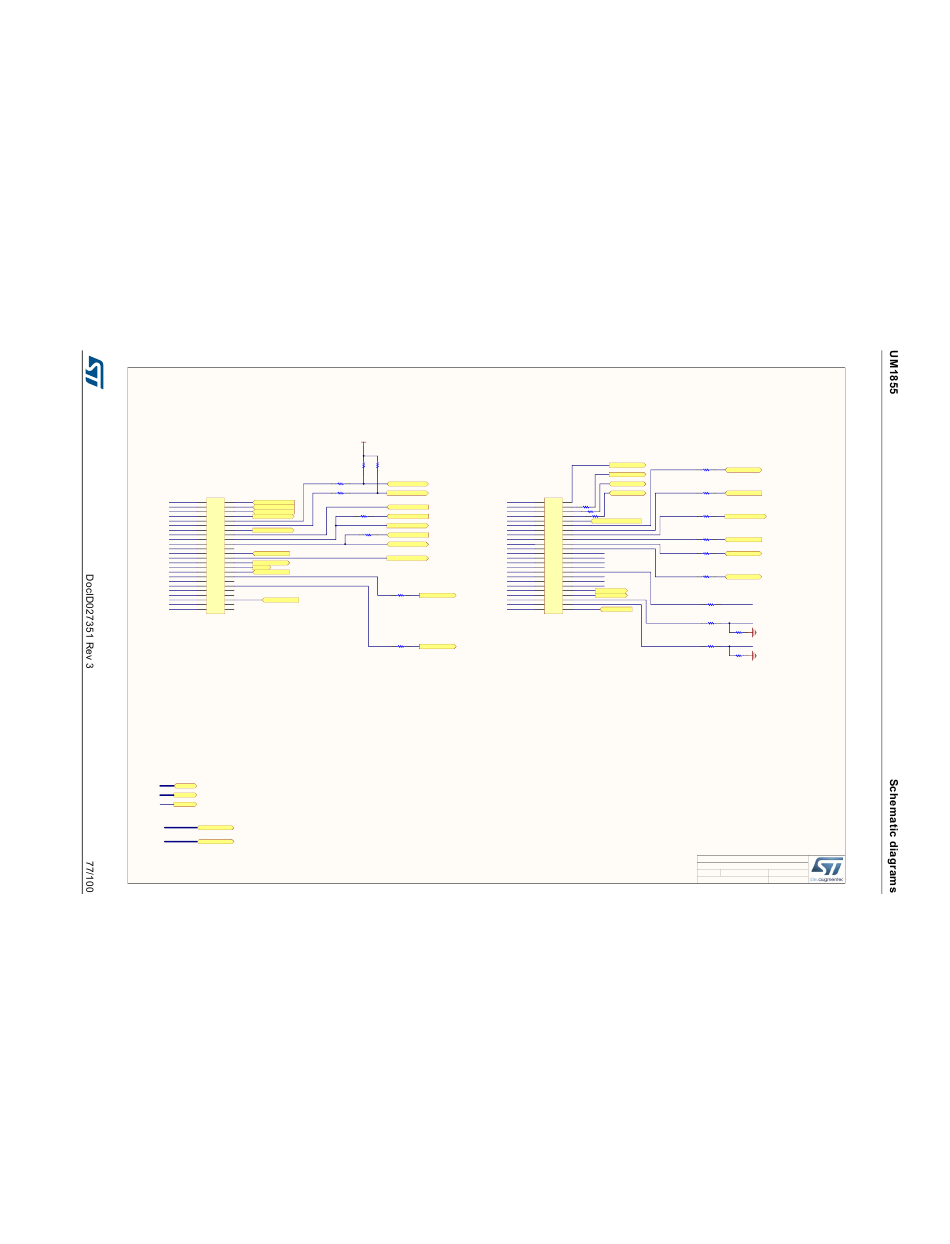

Figure 36. LCD glass module daughterboard connectors - schematic diagram

LCD Glass Connector
R265
R266
CN11
LCDCOM1 PA9
1 2 USBOTG_VBUS
LCDCOM0 PA8
3 4 uSD_DETECT
LCDCOM2 PA10
5 6 USBOTG_ID
LCDCOM3 PB9
7 8 CAN_TX
LCDSEG11 PB11
9 10
LCDSEG10 PB10
11 12
LCDSEG9 PB5
13 14 Comp2_OUT
LCDSEG14 PB14
15 16
LCDSEG13 PB13
17 18
LCDSEG12 PB12
19 20
LCDSEG17 PA15
21 22
LCDSEG16 PB8
23 24 CAN_RX
LCDSEG15 PB15
25 26
LCDSEG20 PC2
27 28 DFSDM_CKOUT
LCDSEG19 PC1
29 30 LED3
LCDSEG18 PC0
31 32 DMIC_DATIN
LCDSEG2 PA3
33 34
LCDSEG1 PA2
35 36
LCDSEG5 PB0
37 38
LCDSEG4 PA7
39 40
LCDSEG3 PA6
41 42
LCDSEG8 PB4
43 44 Comp2_INP
LCDSEG7 PB3
45 46
LCDSEG6 PB1
47 48
Header 24X2
D[0..15]
D[0..15]
A[16..19]
A[16..19]
A23
A23
LCDSEG[0..39]
LCDSEG[0..39]
LCDCOM[0..7]
LCDCOM[0..7]
VDD
LCD Glass Connector
R263 R264
1K2 1K2
0
I2C2_SDA
0
I2C2_SCL
CN14
LCDCOM7
LCDCOM6
NFC_MISO
LCDCOM5
R108
LCDCOM4
USBOTG_PRDY
0 LCDSEG21
LCDSEG22
NFC_SCK
LCDSEG23
R109
LCDSEG24
USBOTG_OVRCR
0 LCDSEG25
LCDSEG26
SWP_IO
LCDSEG27
LCDSEG28
LCDSEG29
NFC_MOSI
LCDSEG30
LCDSEG31
LCDSEG32
LCDSEG33
LCDSEG34
LCDSEG35
LCDSEG36
R111 0 LCDSEG37
OpAmp1_OUT
LCDSEG38
LCDSEG39
LCDSEG0
R107 0
SmartCard_CLK
uSD_CMD
R143
uSD_CLK
uSD_D3
R144
uSD_D2
PD2
1 2
PC12 R140 0
3 4
PC11 R141 0
5 6
PC10 R142 0 R145
7 8
PB7
9 10 USART1/IrDA_RX_3V3
PC4
11 12
PC5
13 14
PC6
15 16
PC7 R146
17 18
PC PC8
19 20
PC9
21 22
PD8 D13 R147
23 24
PD9 D14
25 26
PD10 D15
27 28
PD11 A16
29 30
PD12
31 32
PD13 A18 R148
33 34
PD14 D0
35 36
PD15 D1
37 38
PE0
39 40 FMC_NBL0
PE1
41 42 FMC_NBL1
PE2
43 44
PE3 R151
45 46
PA1
47 48 OpAmp1_INM
Header 24X2 R149
R150
Title: LCD_Glass
Project:
Size: A3
Date: 6/24/2015
0
SmartCard_IO
0
IDD_WAKEUP
0
USBOTG_PPWR
0
PT100_DATIN
0
uSD_D0
0
uSD_D1
0 A17
0 A23
R138
GND
100K
0 A19
R139
GND
100K
STM32L476G-EVAL
Reference: MB1144 Revision: B-02
Sheet: 5 of 25
