Hardware layout and configuration

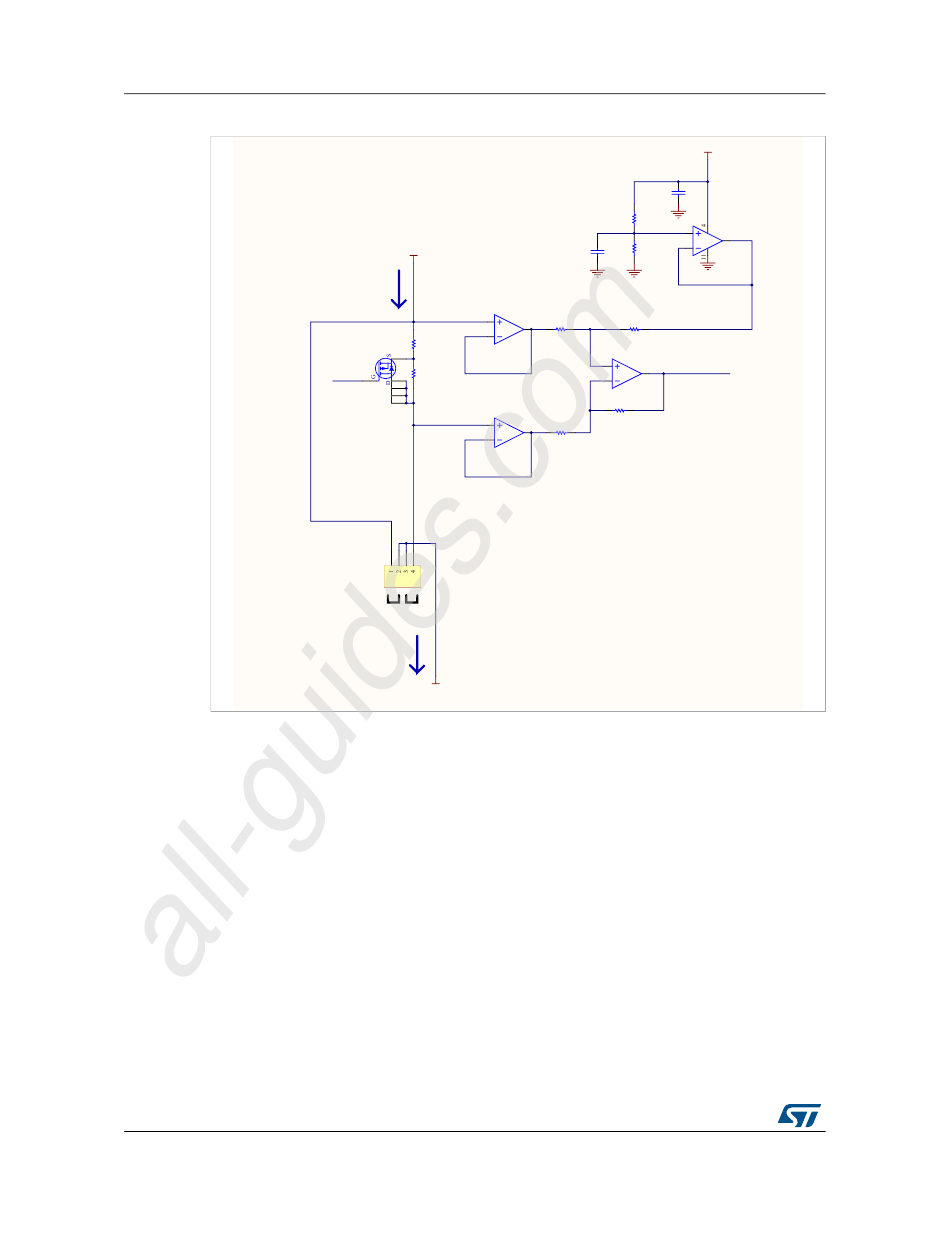

Figure 17. Schematic diagram of the analog part of IDD measurement

bypass path
2.30.2

Low-power-mode IDD measurement principle - logic part

The target microcontroller can only carry out actions for measuring a voltage when in
dynamic run mode. This is the reason why, voltage representing the current consumed by
the microcontroller when in low-power mode needs to be held by a sample-and-hold circuit,
for being exploited by the microcontroller at a later time, when back in dynamic run mode.
The sample-and-hold (S&H) circuit is built with U13 switch, R122 resistor and C73 sampling
capacitor.
The measurement of low-power-mode current consumption is started and end by the
microcontroller in its dynamic run mode. As, between the start and end event, the
microcontroller must transit through one of its low-power modes, an extra logic is required to
time and control events during this state. It consists of U14 counter, U16 inverter and the
transistor T3. Figure 18
56/100
All manuals and user guides at all-guides.com
VDD from
power
supply
VDD
Current
direction
5
6
R135
1[1%]
T2
4
shunts
R123
1K[1%]
Shunt_x1000 3 5
1
2
6
FDC606P
12
13
current
measurement
path
JP11
Current
direction
VDD_MCU
to MCU
shows the corresponding schematic diagram.
DocID027351 Rev 3
+5V
C75
100nF
R128
22K GND
3
V+
R124
2
V-
C144 1K
100nF
GND
GND GND
U15B
TSZ124IPT
R136 R129
7
3K6 0.1% 180K 0.1%
U15C
TSZ124IPT
10
8
differential 9
amplifier
R132
U15D
180K 0.1%
TSZ124IPT
R125
14
3K6 0.1%
UM1855
decoupling capacitor
close from TSZ124 part
U15A
TSZ124IPT
1
