Connectors

3 Connectors
3.1 RS-232 D-sub male connector CN9

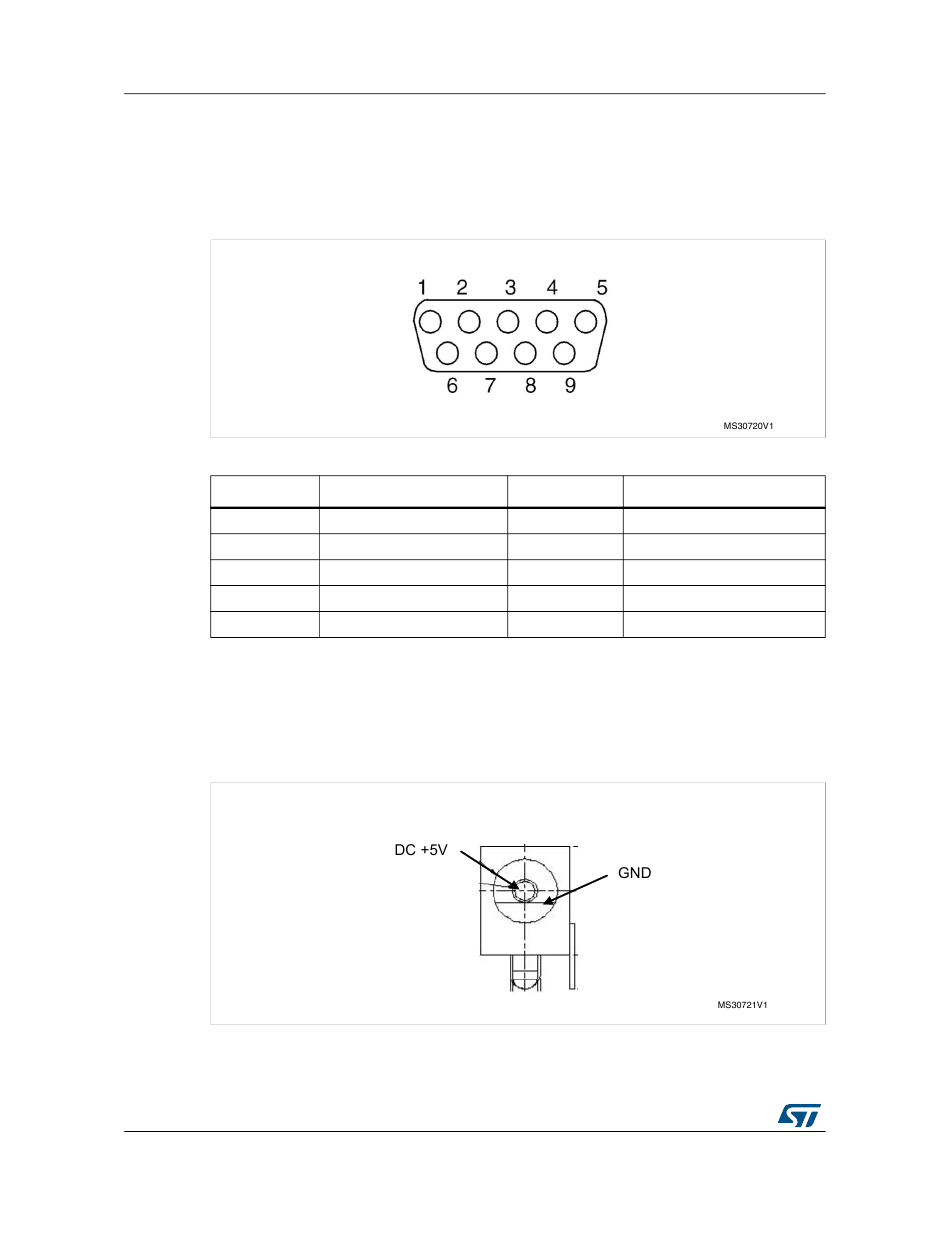

Figure 20. RS-232 D-sub (DE-9M) 9-pole connector (front view)

Table 32. RS-232 D-sub (DE-9M) connector CN9 with HW flow control and ISP support

Terminal
1
2
3
4
5
3.2

Power connector CN22

The STM32L476G-EVAL board can be powered from a DC-5V external power supply via
the CN22 jack illustrated in
60/100
All manuals and user guides at all-guides.com
Terminal name
NC
RS232_RX (PB7)
RS232_TX (PG12)
NC
GND
Figure 21. The central pin of CN22 must be positive.

Figure 21. Power supply connector CN22 (front view)

DocID027351 Rev 3
Terminal Description
6 Bootloader_BOOT0
7 NC
8 Bootloader_RESET
9 NC
-
UM1855
-
