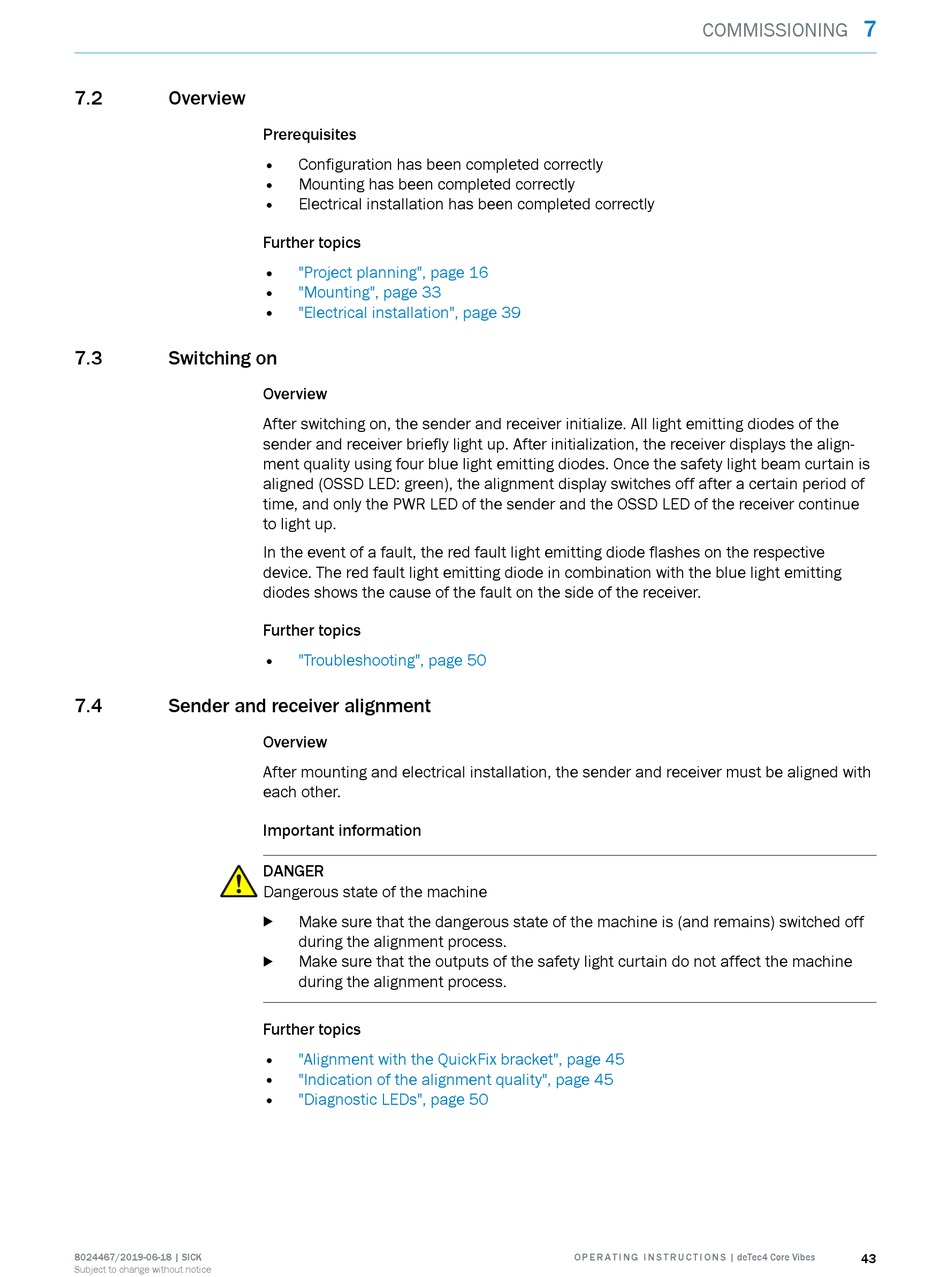

7.2

Overview

7.3

Switching on

7.4

Sender and receiver alignment

8024467/2019-06-18 | SICK
Subject to change without notice
Prerequisites
• Configuration has been completed correctly
• Mounting has been completed correctly
• Electrical installation has been completed correctly
Further topics
• "Project planning", page 16
• "Mounting", page 33
• "Electrical installation", page 39
Overview
After switching on, the sender and receiver initialize. All light emitting diodes of the
sender and receiver briefly light up. After initialization, the receiver displays the align‐
ment quality using four blue light emitting diodes. Once the safety light beam curtain is
aligned (OSSD LED: green), the alignment display switches off after a certain period of
time, and only the PWR LED of the sender and the OSSD LED of the receiver continue
to light up.
In the event of a fault, the red fault light emitting diode flashes on the respective
device. The red fault light emitting diode in combination with the blue light emitting
diodes shows the cause of the fault on the side of the receiver.
Further topics
• "Troubleshooting", page 50
Overview
After mounting and electrical installation, the sender and receiver must be aligned with
each other.
Important information
DANGER
Dangerous state of the machine
Make sure that the dangerous state of the machine is (and remains) switched off
b
during the alignment process.
Make sure that the outputs of the safety light curtain do not affect the machine
b
during the alignment process.
Further topics
• "Alignment with the QuickFix bracket", page 45
• "Indication of the alignment quality", page 45
• "Diagnostic LEDs", page 50
