PRODUCT DESCRIPTION
3.2

Product characteristics

3.2.1

Device overview

3.2.2

Absence of blind zones

3.2.3

Alignment aid

3.2.4

Status indicators

12 O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes
The sensing sensing range is dependent on the receiver used.
Further topics
• "Data sheet", page 54
!
"

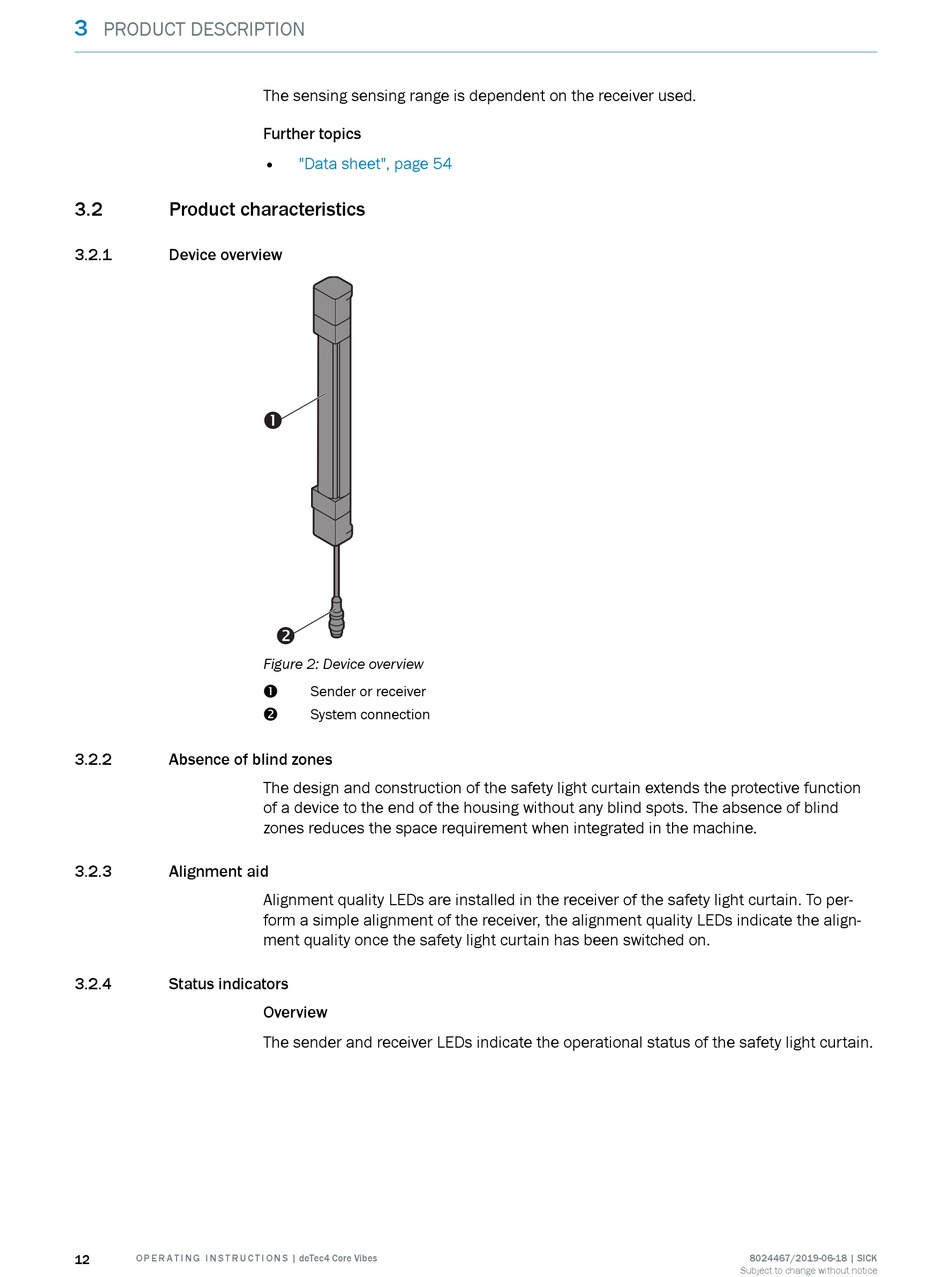

Figure 2: Device overview
Sender or receiver
!
System connection
"
The design and construction of the safety light curtain extends the protective function
of a device to the end of the housing without any blind spots. The absence of blind
zones reduces the space requirement when integrated in the machine.
Alignment quality LEDs are installed in the receiver of the safety light curtain. To per‐
form a simple alignment of the receiver, the alignment quality LEDs indicate the align‐
ment quality once the safety light curtain has been switched on.
Overview
The sender and receiver LEDs indicate the operational status of the safety light curtain.
