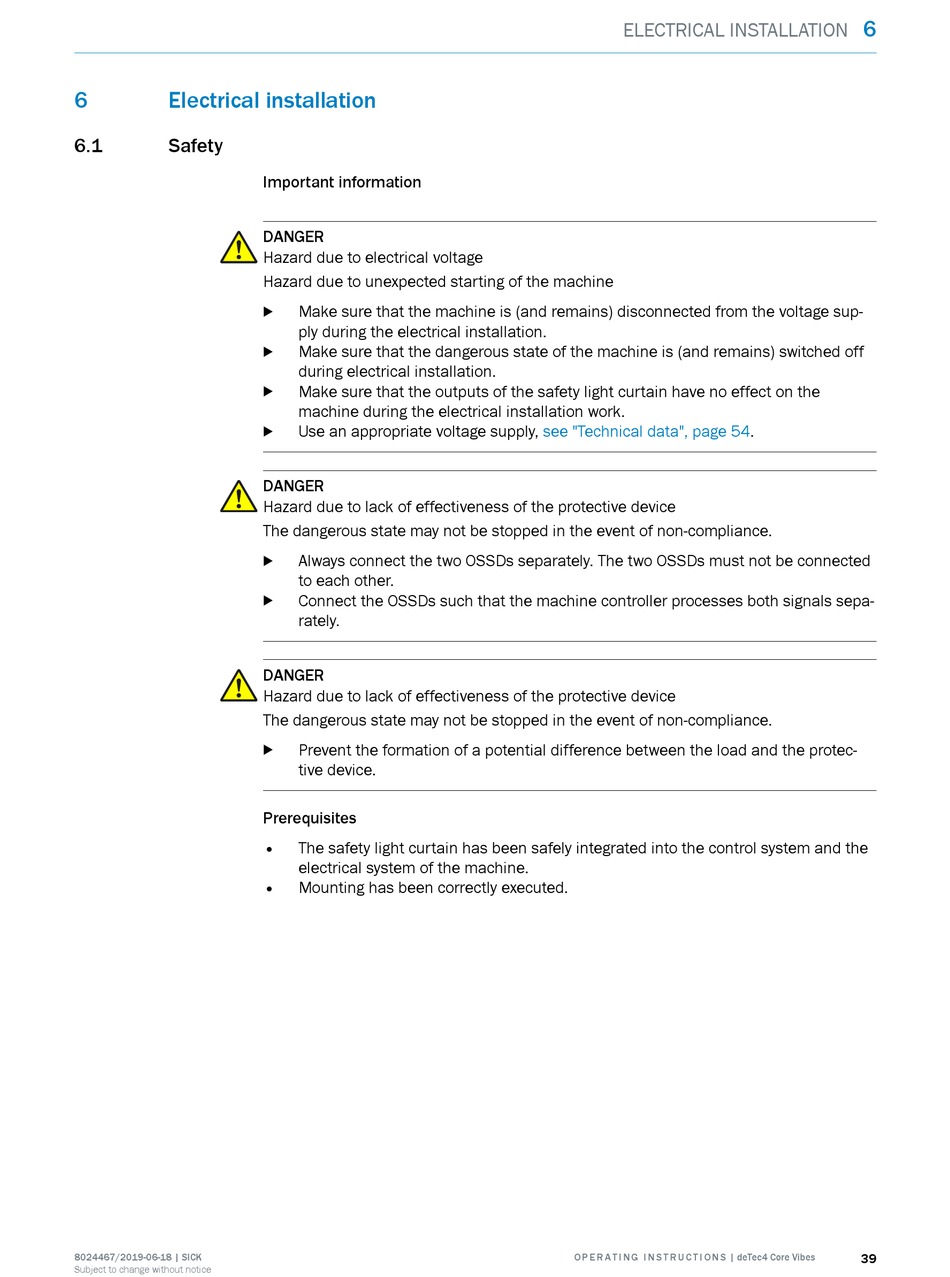

Electrical Installation; Safety - SICK deTec4 Core Vibes Operating Instructions Manual

6

Electrical installation

6.1

Safety

8024467/2019-06-18 | SICK
Subject to change without notice
Important information
DANGER
Hazard due to electrical voltage
Hazard due to unexpected starting of the machine
Make sure that the machine is (and remains) disconnected from the voltage sup‐
b
ply during the electrical installation.
Make sure that the dangerous state of the machine is (and remains) switched off
b
during electrical installation.
Make sure that the outputs of the safety light curtain have no effect on the
b
machine during the electrical installation work.
Use an appropriate voltage supply,
b
DANGER
Hazard due to lack of effectiveness of the protective device
The dangerous state may not be stopped in the event of non-compliance.
Always connect the two OSSDs separately. The two OSSDs must not be connected
b
to each other.
Connect the OSSDs such that the machine controller processes both signals sepa‐
b
rately.
DANGER
Hazard due to lack of effectiveness of the protective device
The dangerous state may not be stopped in the event of non-compliance.
Prevent the formation of a potential difference between the load and the protec‐
b
tive device.
Prerequisites
• The safety light curtain has been safely integrated into the control system and the
electrical system of the machine.
• Mounting has been correctly executed.
ELECTRICAL INSTALLATION
see "Technical data", page
O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes
6
54.
39
