5.3.1

Mounting the QuickFix bracket

8024467/2019-06-18 | SICK
Subject to change without notice

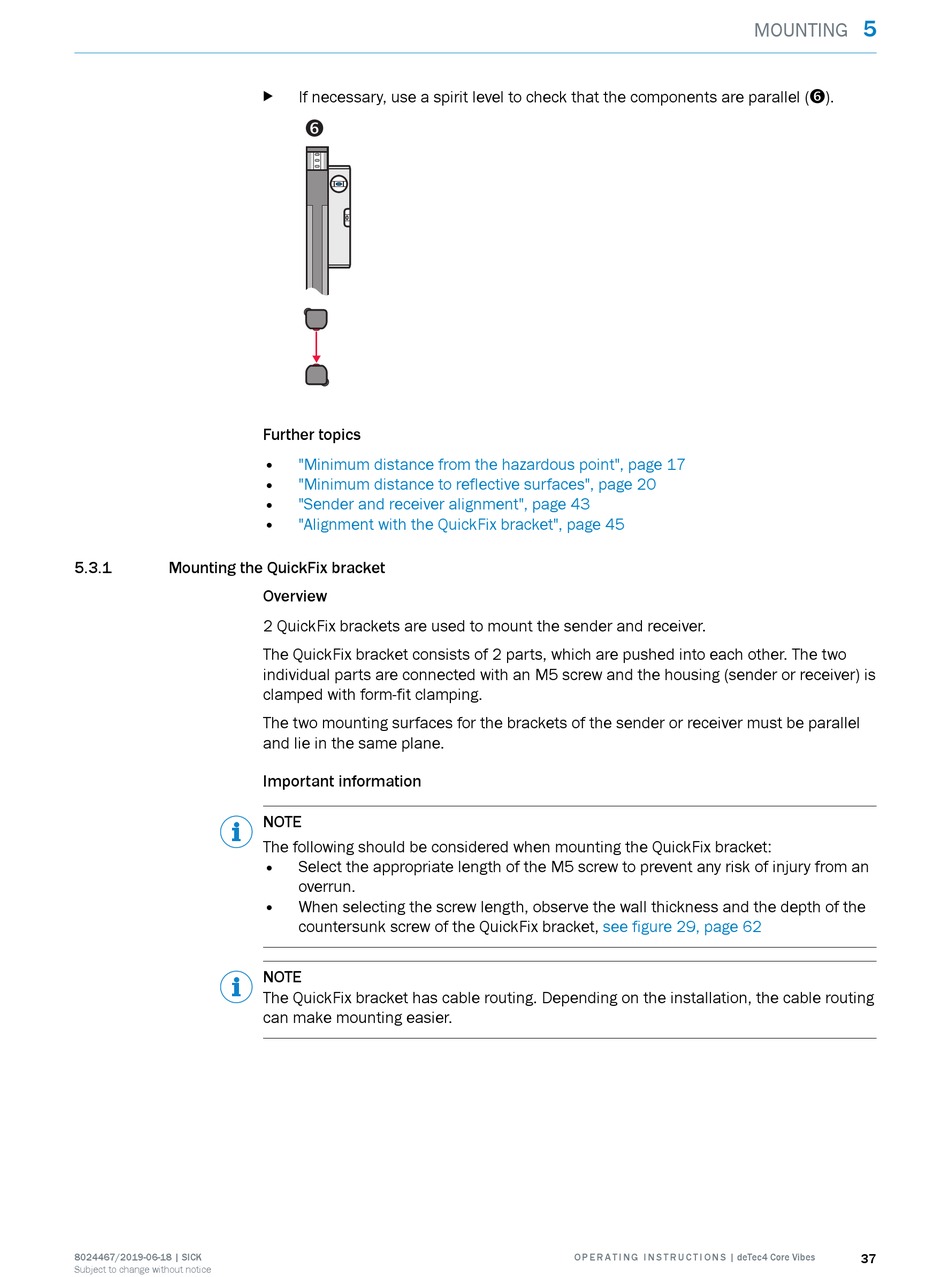

If necessary, use a spirit level to check that the components are parallel (&).
b
&
Further topics
• "Minimum distance from the hazardous point", page 17
• "Minimum distance to reflective surfaces", page 20
• "Sender and receiver alignment", page 43
• "Alignment with the QuickFix bracket", page 45
Overview
2 QuickFix brackets are used to mount the sender and receiver.
The QuickFix bracket consists of 2 parts, which are pushed into each other. The two
individual parts are connected with an M5 screw and the housing (sender or receiver) is
clamped with form-fit clamping.
The two mounting surfaces for the brackets of the sender or receiver must be parallel
and lie in the same plane.
Important information
NOTE
The following should be considered when mounting the QuickFix bracket:
• Select the appropriate length of the M5 screw to prevent any risk of injury from an
overrun.
• When selecting the screw length, observe the wall thickness and the depth of the
countersunk screw of the QuickFix bracket,
NOTE
The QuickFix bracket has cable routing. Depending on the installation, the cable routing
can make mounting easier.
MOUNTING
see figure 29, page 62
