12
TECHNICAL DATA
12.6

Dimensional drawings

58 O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes
Protective field height in mm
1650
1800
1950
2100
1) Tolerance: ± 50 g.
29,5
30,7

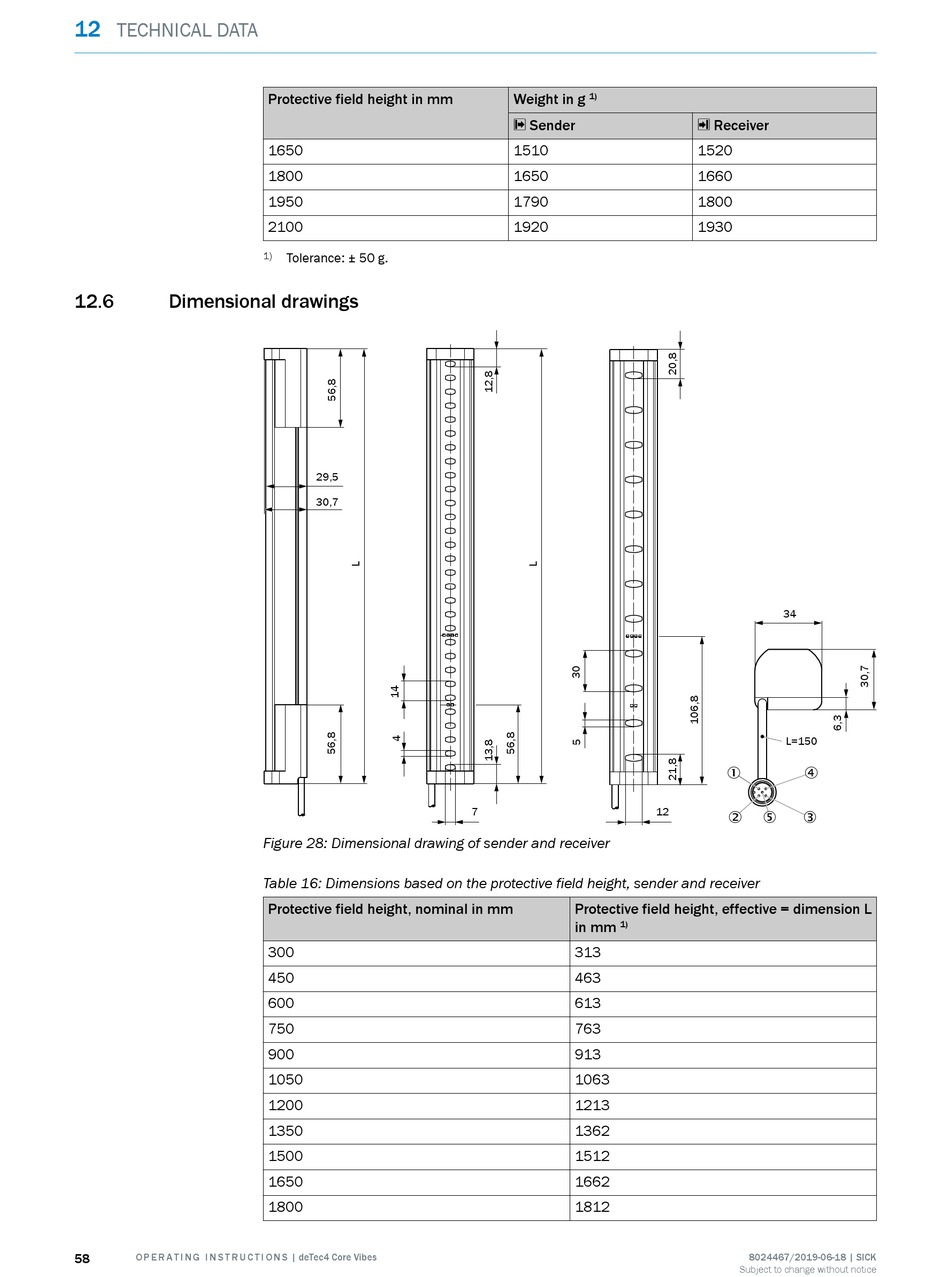

Figure 28: Dimensional drawing of sender and receiver
Table 16: Dimensions based on the protective field height, sender and receiver
Protective field height, nominal in mm
300
450
600
750
900
1050
1200
1350
1500
1650
1800
Weight in g
1)
s Sender
1510
1650
1790
1920
7
Protective field height, effective = dimension L
in mm
1)
313
463
613
763
913
1063
1213
1362
1512
1662
1812
r Receiver
1520
1660
1800
1930
34
L=150
1 4
12
2 5 3
