4
PROJECT PLANNING
4.3.3

Minimum distance to reflective surfaces

20 O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes

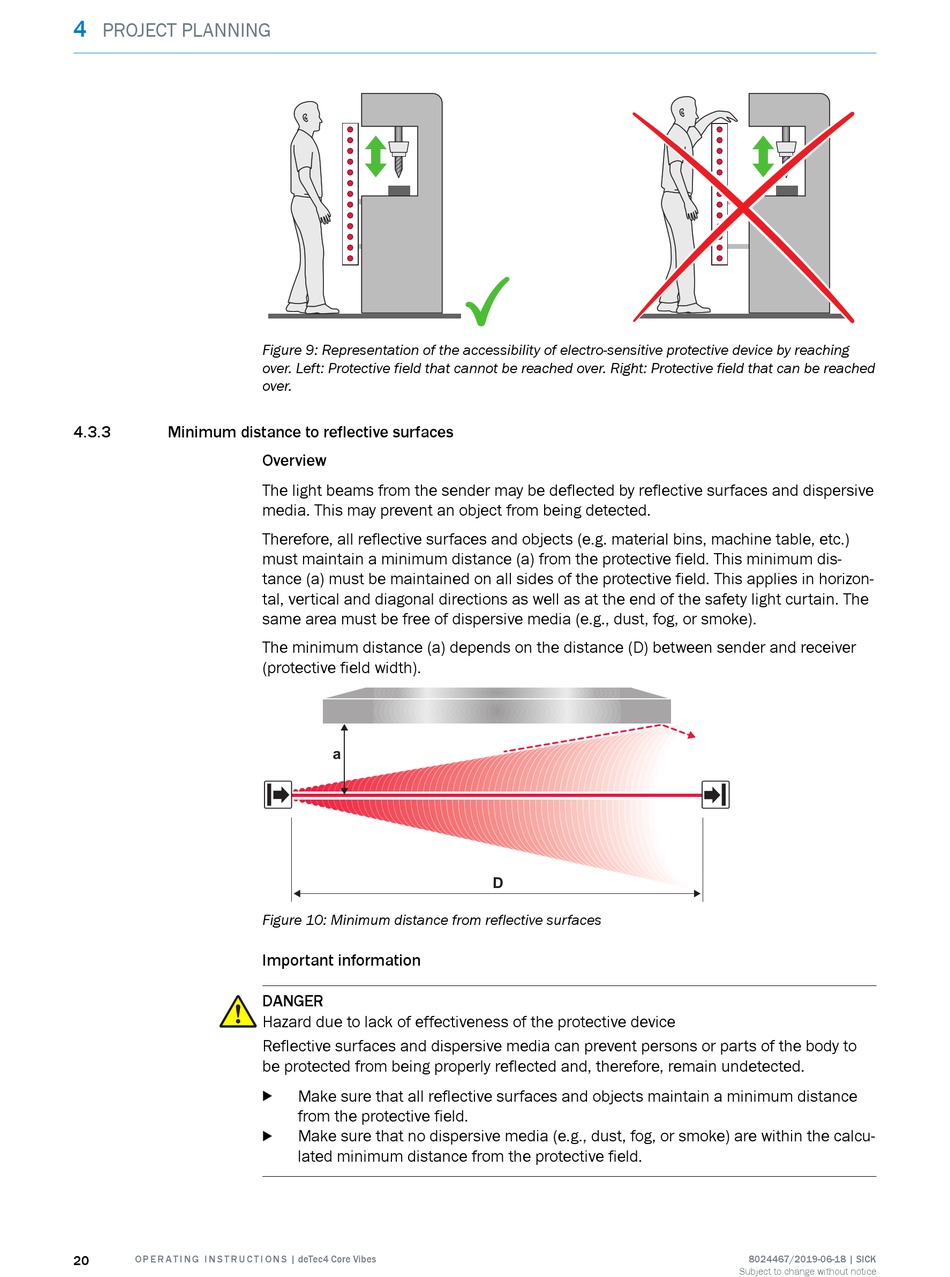

Figure 9: Representation of the accessibility of electro-sensitive protective device by reaching
over. Left: Protective field that cannot be reached over. Right: Protective field that can be reached
over.
Overview
The light beams from the sender may be deflected by reflective surfaces and dispersive
media. This may prevent an object from being detected.
Therefore, all reflective surfaces and objects (e.g. material bins, machine table, etc.)
must maintain a minimum distance (a) from the protective field. This minimum dis‐
tance (a) must be maintained on all sides of the protective field. This applies in horizon‐
tal, vertical and diagonal directions as well as at the end of the safety light curtain. The
same area must be free of dispersive media (e.g., dust, fog, or smoke).
The minimum distance (a) depends on the distance (D) between sender and receiver
(protective field width).
s
Figure 10: Minimum distance from reflective surfaces
Important information
DANGER
Hazard due to lack of effectiveness of the protective device
Reflective surfaces and dispersive media can prevent persons or parts of the body to
be protected from being properly reflected and, therefore, remain undetected.
Make sure that all reflective surfaces and objects maintain a minimum distance
b
from the protective field.
Make sure that no dispersive media (e.g., dust, fog, or smoke) are within the calcu‐
b
lated minimum distance from the protective field.
r
