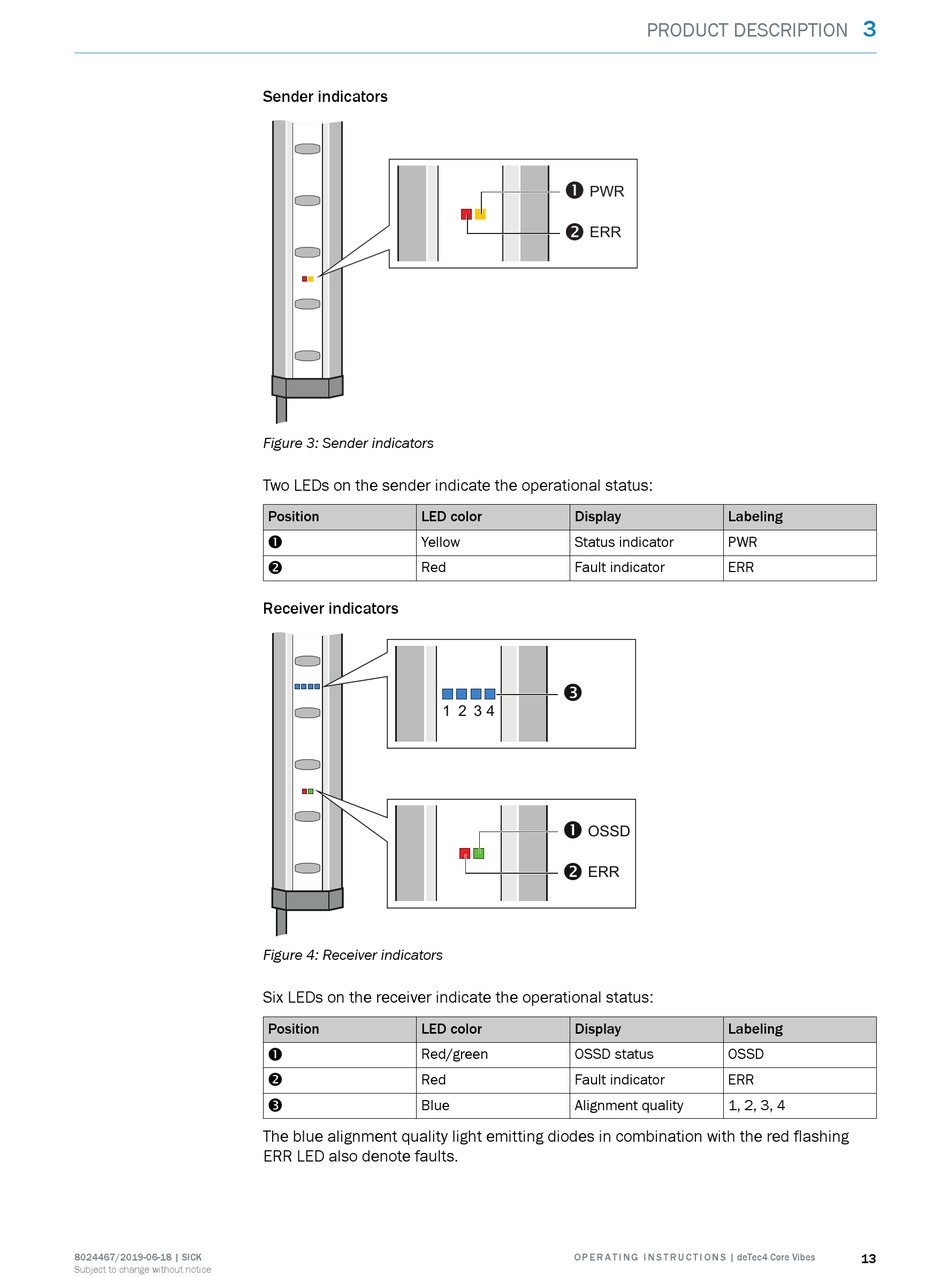

Sender indicators
Figure 3: Sender indicators
Two LEDs on the sender indicate the operational status:
Position LED color
Yellow
!
Red
"
Receiver indicators
1 2 3 4
Figure 4: Receiver indicators
Six LEDs on the receiver indicate the operational status:
Position LED color
Red/green
!
Red
"
Blue
§
The blue alignment quality light emitting diodes in combination with the red flashing
ERR LED also denote faults.
PRODUCT DESCRIPTION
!
PWR
"
ERR
Display Labeling
Status indicator PWR
Fault indicator ERR
§
!
OSSD
"
ERR
Display Labeling
OSSD status OSSD
Fault indicator ERR
Alignment quality 1, 2, 3, 4
