5
MOUNTING
5.3

Installation

34 O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes
Further topics
• "Scope of delivery", page 60
Important information
DANGER
Hazard due to lack of effectiveness of the protective device
Persons or parts of the body to be protected may not be recognized or not recognized in
time in case of non-observance.
Observe the minimum distances calculated for the machine in which the safety
b
light curtain is integrated.
Mount the safety light curtain such that it is not possible to reach under, over,
b
around, or stand behind the safety light curtain, and that the safety light curtain
cannot be repositioned.
DANGER
Hazard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of non-
observance.
The safety light curtain can only be mounted on machines on which the protective
b
field width does not change when the safety light curtain is switched on.
DANGER
Hazard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of non-
observance.
The end with the cable connection must point in the same direction for the sender
b
and receiver.
s

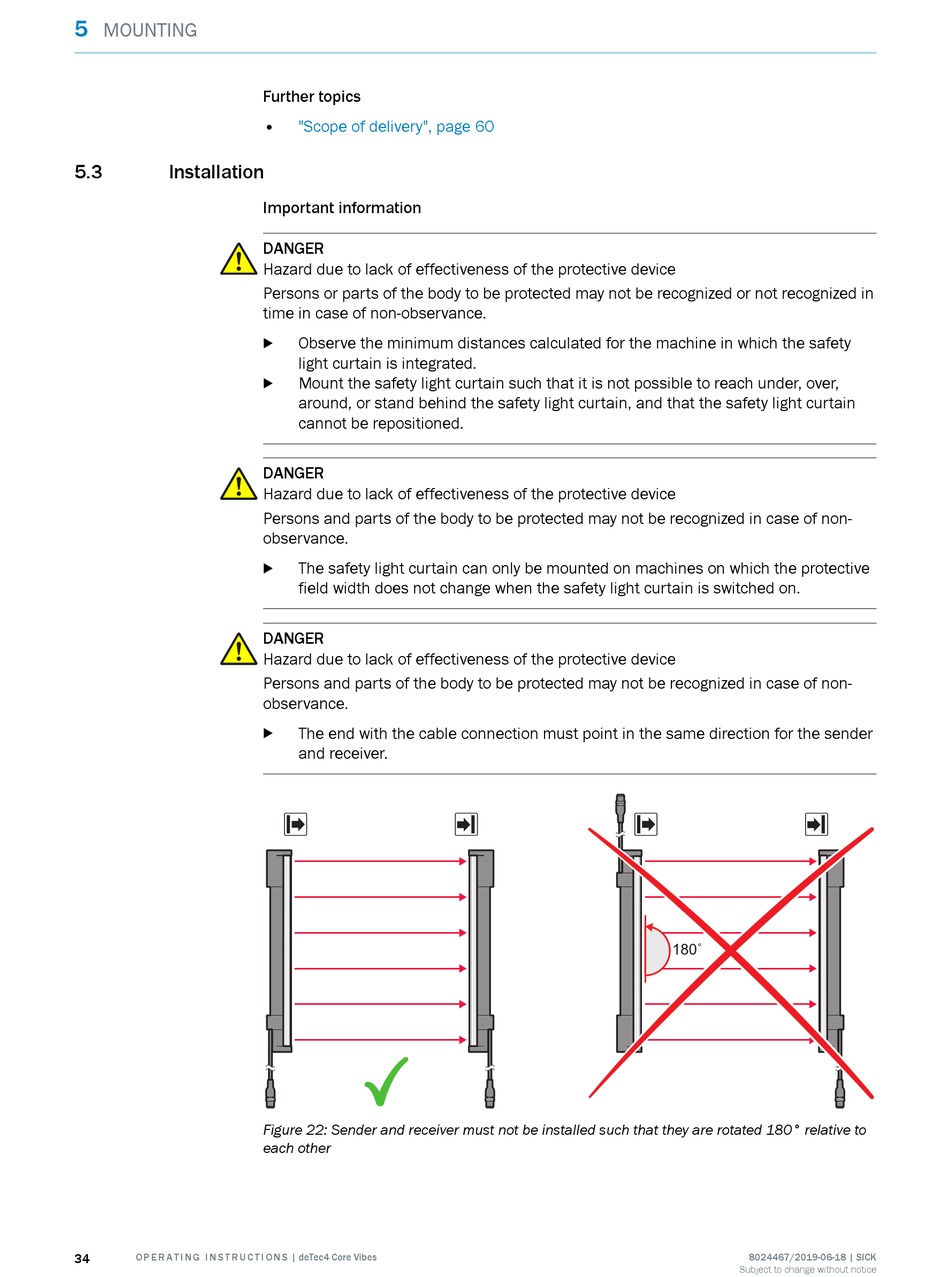

Figure 22: Sender and receiver must not be installed such that they are rotated 180° relative to
each other
r s r
180˚
