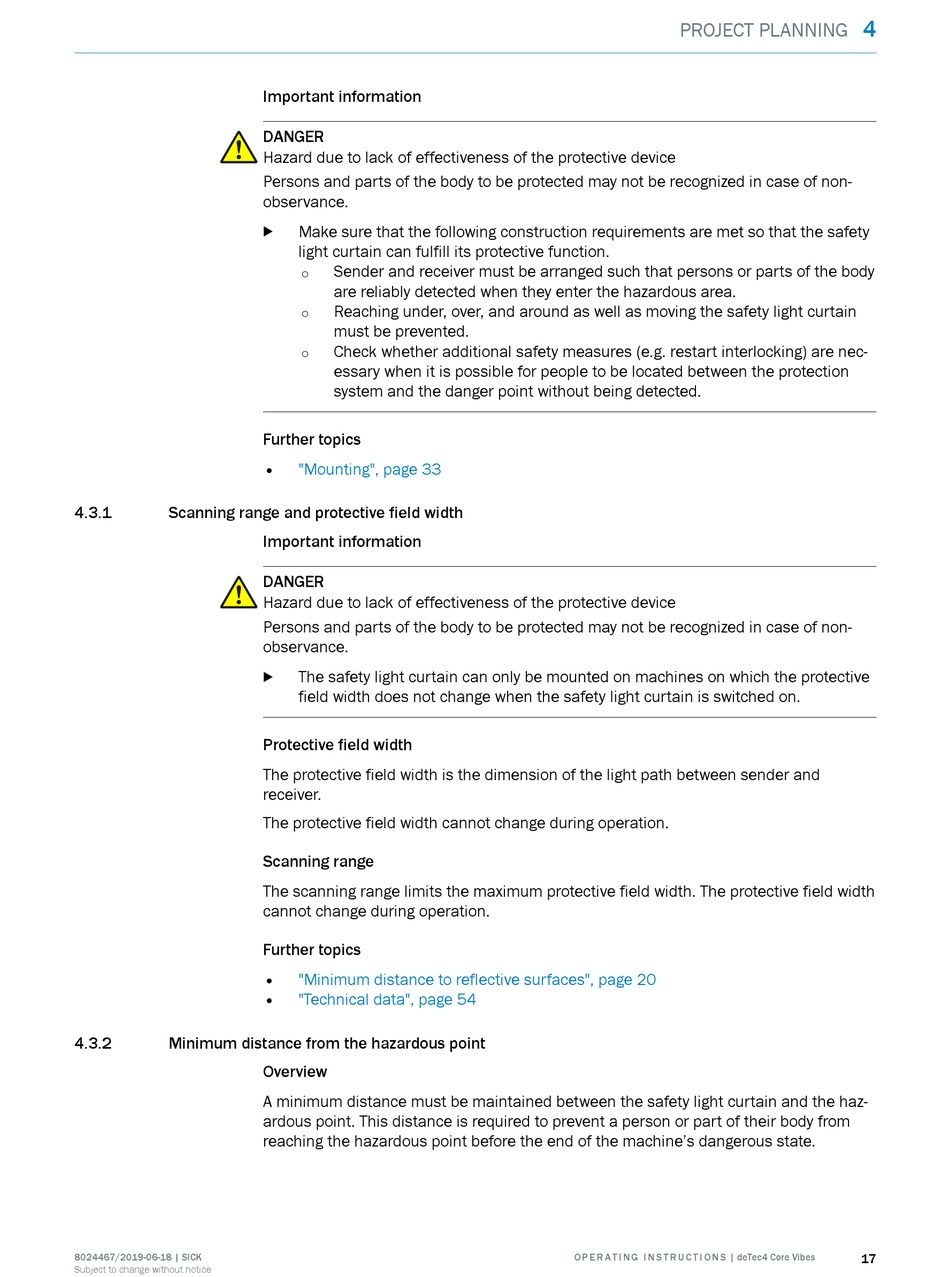

Scanning Range And Protective Field Width; Minimum Distance From The Hazardous Point - SICK deTec4 Core Vibes Operating Instructions Manual

4.3.1

Scanning range and protective field width

4.3.2

Minimum distance from the hazardous point

8024467/2019-06-18 | SICK
Subject to change without notice
Important information
DANGER
Hazard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of non-
observance.
Make sure that the following construction requirements are met so that the safety
b
light curtain can fulfill its protective function.
Sender and receiver must be arranged such that persons or parts of the body
°
are reliably detected when they enter the hazardous area.
Reaching under, over, and around as well as moving the safety light curtain
°
must be prevented.
Check whether additional safety measures (e.g. restart interlocking) are nec‐
°
essary when it is possible for people to be located between the protection
system and the danger point without being detected.
Further topics
• "Mounting", page 33
Important information
DANGER
Hazard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of non-
observance.
The safety light curtain can only be mounted on machines on which the protective
b
field width does not change when the safety light curtain is switched on.
Protective field width
The protective field width is the dimension of the light path between sender and
receiver.
The protective field width cannot change during operation.
Scanning range
The scanning range limits the maximum protective field width. The protective field width
cannot change during operation.
Further topics
•
"Minimum distance to reflective surfaces", page 20
•
"Technical data", page 54
Overview
A minimum distance must be maintained between the safety light curtain and the haz‐
ardous point. This distance is required to prevent a person or part of their body from
reaching the hazardous point before the end of the machine's dangerous state.
PROJECT PLANNING
