MOUNTING
36 O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes
§

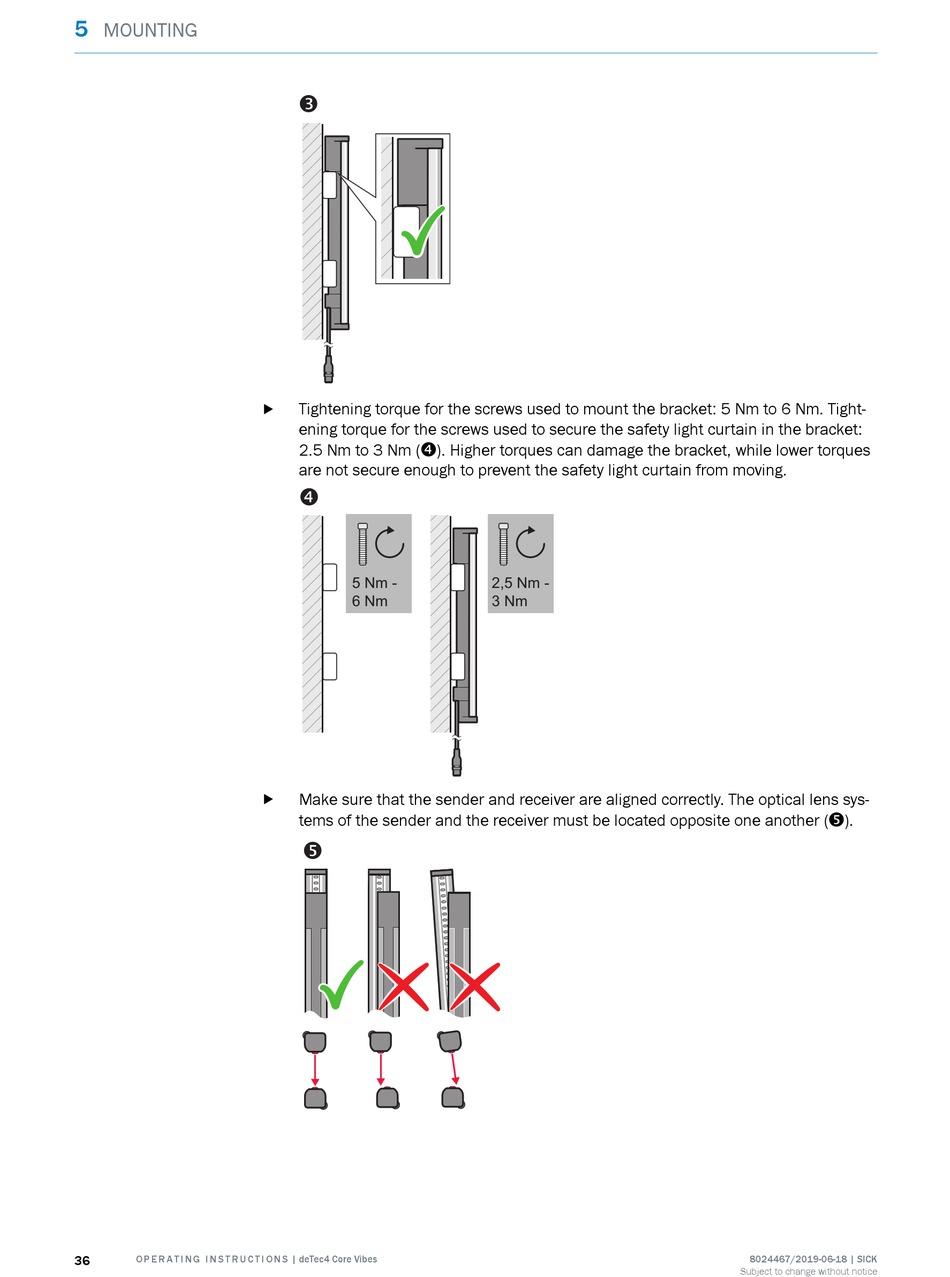

Tightening torque for the screws used to mount the bracket: 5 Nm to 6 Nm. Tight‐
b
ening torque for the screws used to secure the safety light curtain in the bracket:
2.5 Nm to 3 Nm ($). Higher torques can damage the bracket, while lower torques
are not secure enough to prevent the safety light curtain from moving.
$
5 Nm -
6 Nm
Make sure that the sender and receiver are aligned correctly. The optical lens sys‐
b
tems of the sender and the receiver must be located opposite one another (%).
%
2,5 Nm -
3 Nm
